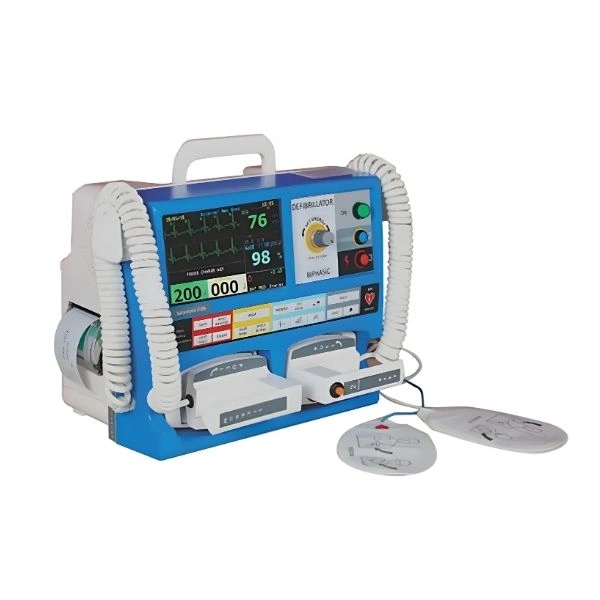

ABM DF11 Defibrillator Monitor

New

4.1|36 Ratings

₹1,50,999₹200,00025% off

Quantity :

Specifications

Product Name : ABM DF-11 Defibrillator
Display : 7″ TFT color display
Waveform : Biphasic truncated exponential
Energy Levels : 2–200 J adjustable
Charging Time : ~6 s on mains
Battery Capacity : ~70–100 shocks per full charge
Trend Monitoring : ECG, SpO₂, NIBP, ETCO₂ (24 hr)
Paddle Support : Adult & pediatric
Built-in Printer : 2″ thermal printer
Optional Parameters : AED, pacing, NIBP, SpO₂, ETCO₂
Operating Mode : Manual defibrillation
Dimensions (approx.) : 280 × 330 × 220 mm (without paddles)
Weight : ~6 kg (max)
Power Input : 150–270 VAC, 50 Hz
Battery Type : Rechargeable 12 V, 4.5 Ah
Patient Impedance Range : ~35–250 Ω

highlights

Delivers precise, adjustable energy shocks for cardiac rhythm restoration.
Graphical + tabular trends help track patient vital signs over time.
Fast charge and rechargeable battery support readiness in emergencies.
Multimodal capability with optional monitoring and therapeutic modules.
Compact and transportable, aiding deployment across clinical environments.

in the box

DF-11 Defibrillator unit
Adult and Pediatric Paddle Sets
Power adapter/cord
Rechargeable battery
User manual and documentation
Printer paper (for built-in printer)
Optional sensor modules if purchased (e.g., SpO₂, NIBP)

Use Cases :

Emergency departments for acute cardiac events.
Intensive Care Units (ICU/CCU) for continuous monitoring and rapid response.
Operating rooms for peri-operative emergencies.
Ambulance services and pre-hospital care where portability matters.
Cardiac care units and rehabilitation centers as part of advanced life support.

Key Features :

7-inch TFT display
Offers variable energy level selection. ( 20,30,50,70,100,150,200, Joules)
24 hrs graphical & tabular trend of ECG,Spo2 ,NIBP & ETCO2
Charge & shock buttons on the front panel & control panel
Optional Parameters: AED, Pacing, ,NIBP, SPO2, ETCO2 , Internal Defibrillation
Weight is approximately 6 kg.
Adult & pediatric Paddles support
ECG through paddles in defi mode & print the last 10 sec
Biphasic truncated experimental waveform
The charging time is 6 seconds on mains

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The ABM DF-11 Defibrillator is a biphasic defibrillator and monitor system designed to deliver controlled electrical shocks to the heart in cases of sudden cardiac arrest or life-threatening arrhythmias, helping to restore a normal rhythm. It integrates advanced display and monitoring features like ...
