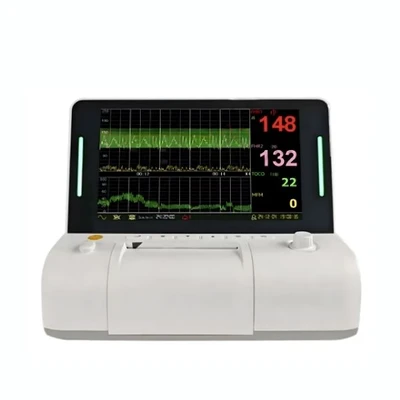

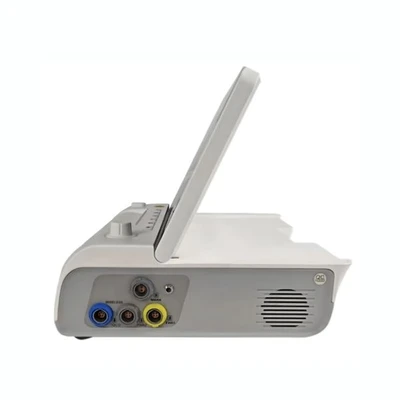

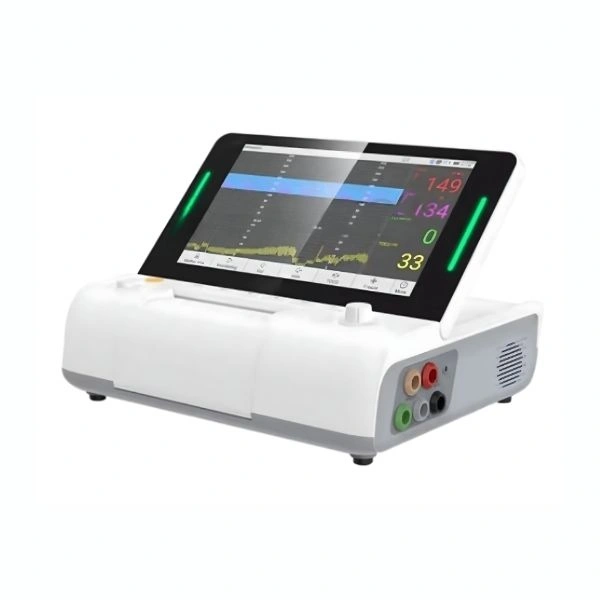

ABM F-12L Fetal Monitor

New

₹65,500₹78,00016% off

Specifications

Product Name : ABM F-12L Fetal Monitor
Display : 10.1″ TFT Colour LCD (90° foldable)
Printing : Built-in Thermal Printer (110 mm width)
FHR : Working Frequency 1.0 MHz (typical)
TOCO Range : 0 – 100 units
Signal Technology : Digital Signal Processing (DSP)
FHR Detection : Automatic fetal heart rate
Fetal Movement : Detection Automatic
Battery Type : Rechargeable (internal)
Battery Backup : Extended runtime (model dependent)
Data Storage : Long-term storage + printout
Probe Type : Super sensitive multi-crystal probe
Optional Support : Twins FHR; maternal SpO₂, PR, NIBP
Dimensions (Approx.) : 295D × 250.5W × 81.5H mm
Power Supply : AC 110–240 V, 50/60 Hz
Transducer Output Strength : <5 mW/cm²
Design : Portable / bedside
Typical Applications : Prenatal and intrapartum fetal monitoring
Warranty : Typically 1 year (varies by supplier)

highlights

Portable yet robust: 10.1″ foldable display and long battery life make the unit suitable for bedside and mobile care.
DSP-based accuracy: Digital signal processing enhances measurement precision for fetal heart rate.
Comprehensive print and storage: Built-in thermal printing and data storage support clinical documentation and follow-up.
Automatic event detection: Detects and highlights fetal movements and cardiac variations.
Expandable: Optional maternal vital parameter integration (e.g., SpO₂ / PR / NIBP) and twin monitoring.

in the box

ABM F-12L Fetal Monitor (Main Unit)
Fetal Heart Rate (FHR) Probe / Transducer
TOCO (Uterine Contraction) Probe
Thermal Printer Paper Rolls
Power Adapter & Cord
Rechargeable Battery (installed)
User Manual / Quick Start Guide
Warranty Documentation

Use Cases :

Maternity wards and obstetric clinics
Labor and delivery rooms
Antepartum (prenatal) assessment clinics
Intrapartum fetal well-being monitoring
High-risk pregnancy evaluation
Integrated maternity care units

Key Features :

10.1″ foldable TFT colour display (adjustable viewing angle) for clear monitoring.
Built-in long-life 110 mm thermal printer for CTG trace printouts.
Super-sensitive fetal probe for accurate heart rate detection.
Advanced DSP technology for reliable real-time fetal signal processing.
Automatic fetal movement detection and accounting to support diagnostics.
Long-term data storage with review and print capabilities.
Rechargeable battery for extended use without mains power.
Optional support for twins FHR measurement and maternal parameters (SpO₂, PR, NIBP) depending on configuration.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The ABM F-12L Fetal Monitor is a compact, reliable CTG (cardiotocography) monitoring system engineered for real-time, continuous tracking of fetal heart rate (FHR) and uterine contractions (TOCO). It integrates a 10.1″ foldable TFT display, built-in thermal printer, and long battery runtime, making ...
