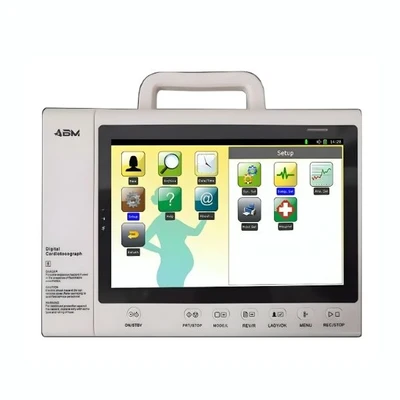

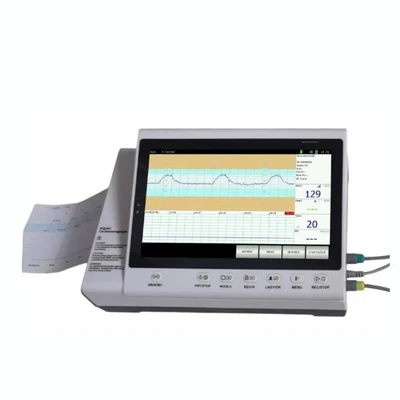

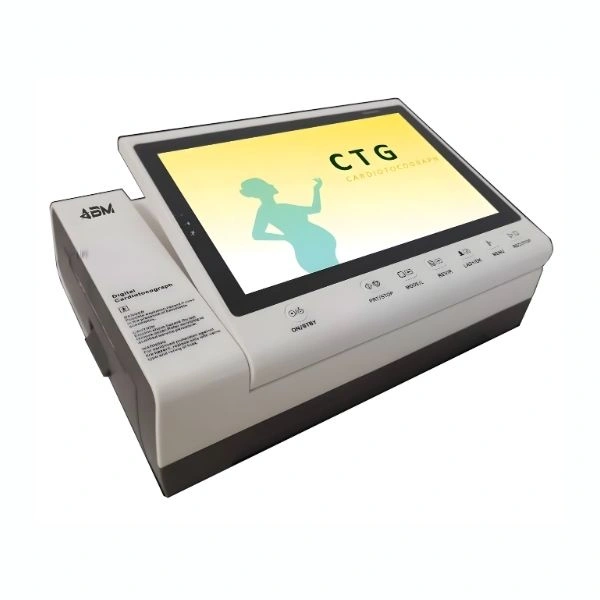

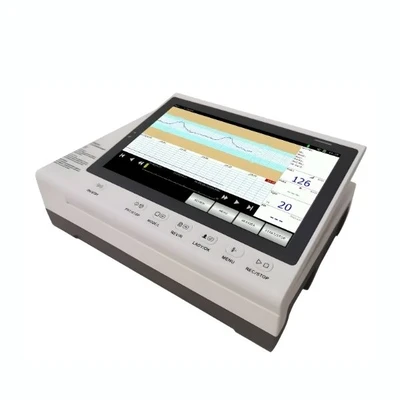

ABM F-12T Fetal Monitor

New

₹65,500₹78,00016% off

Specifications

Product Name : ABM F12-T Fetal Monitoring Machine
Display : 10.2″ LED touchscreen, 90° rotatable
Printer : Thermal printer (112 mm) with synchronized print
FHR Range : 50 – 240 beats/min (typical)
Waveform Freeze : Yes
Auto Interpretation : Yes (with NST grade support)
Historical Data Review : Yes (on-device + USB export)
Probe Type : High-performance waterproof FHR & TOCO probes
Power Supply : AC 110–230 V, 50/60 Hz
Battery Type : Built-in rechargeable Li-ion
Battery Backup : ~2.5 hours (typical)
Sleep Mode : Yes
Portable Design : Yes (with hidden handle)
Data Connectivity : USB (for PC transfer)
Optional Features : Twin FHR monitoring
Dimensions : ~107 mm (H) × 255 mm (W) × 91 mm (D)
Weight : Portable / lightweight
Clinical Use : Antepartum & intrapartum fetal monitoring
Regulatory : IEC / safety standards (regional compliance)

highlights

Touchscreen interface enhances ease of operation in busy clinical environments.
90° rotatable display improves viewing comfort.
Synchronized printing and data review support comprehensive record-keeping.
Battery backup and sleep mode make it suitable for portable and intermittent use.
Auto interpretation reduces clinician workload and enhances diagnostic insight.

in the box

ABM F12-T Fetal Monitoring Machine (Main Unit)
Fetal heart rate probe(s) (waterproof)
TOCO (uterine activity) probe
Power adapter & cord
Rechargeable Li-ion battery (installed)
Thermal printer paper rolls
User manual / quick start guide
Warranty card

Use Cases :

Maternity wards and obstetric clinics
Labor and delivery rooms
High-risk pregnancy monitoring
Routine prenatal check-ups
Bedside fetal surveillance in hospitals of all sizes

Key Features :

10.2″ LED touchscreen with 90° rotation for flexible viewing.
Integrated thermal printer (112 mm) for synchronized CTG printouts.
Freeze and review CTG waveforms for detailed analysis.
Auto interpretation and NST grading.
High-performance waterproof fetal probes, suitable for robust monitoring.
Built-in rechargeable Li-ion battery with AC/DC power conversion and sleep mode for energy efficiency.
Historical data review and USB data transfer support.
Portable design with hidden handle for easy transport.
Optional twin fetal heart rate monitoring capability.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The ABM F12-T Fetal Monitoring Machine is a portable obstetric fetal monitor designed for continuous cardiotocography (CTG) to assess fetal health during antepartum and intrapartum periods. It features a 10.2″ LED touchscreen with 90° rotation, an integrated thermal printer, and advanced data handli...
