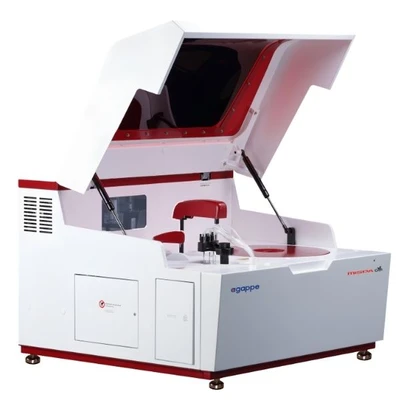

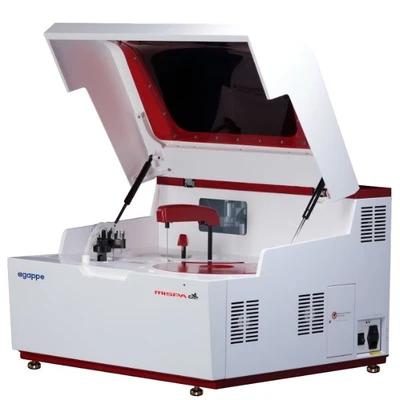

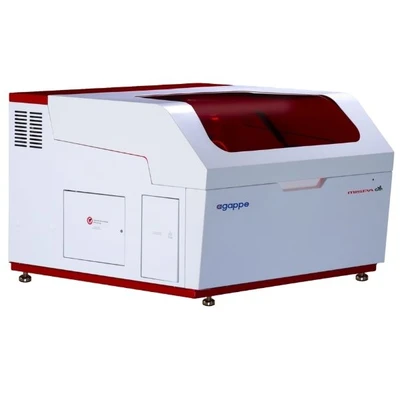

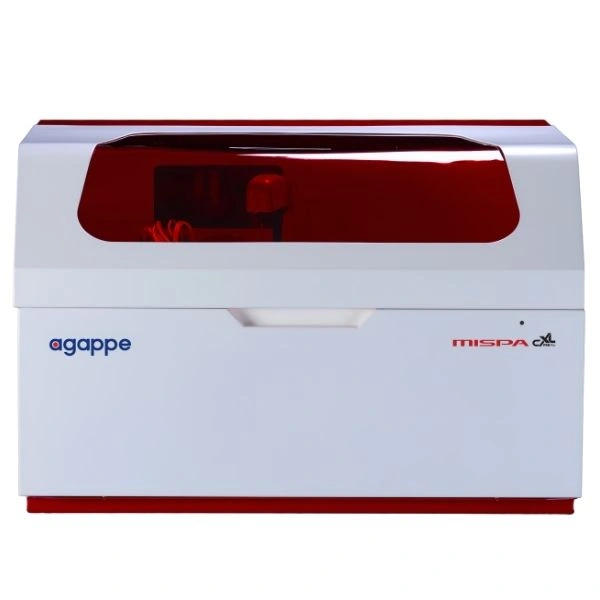

Agappe Mispa CXL Pro Plus Fully Automated BioChemistry Analyzer
New0.0|0 Ratings
₹5,00,000₹750,00033% off
Quantity :
1
Specifications
- Product Type : Fully Automated Clinical Chemistry Analyzer
- Measuring Principle : Spectrophotometry
- Photometric System : HCFG Rear Spectrophotometry
- Throughput : Up to 240 tests/hour
- Methodology : Endpoint, Fixed Time, Kinetic, Single & Dual Reagent
- Wavelengths : 340, 380, 405, 450, 480, 505, 546, 570, 600, 660, 700, 750/800 nm
- Light Source : Halogen Tungsten Lamp (12V/20W)
- Sample Positions : Up to 80
- Sample Volume : 2–35 µL
- Reagent Volume : 10–300 µL
- Reaction Volume : 100–360 µL
- Reaction Temperature : 37 ± 0.1°C
- Mixing System : Triple-speed Teflon-coated Stirrer
- Washing System : 7-stop, 11-step
- Water Consumption : Approx. 4 L/hour
- Connectivity : TCP/IP, RJ-45
- Power Supply : 100–240 VAC, 50/60 Hz
- Power Consumption : 600 VA
- Dimensions : 744 × 703 × 530 mm
- Weight : Approx. 100 kg
highlights
- 240 tests/hour throughput improves lab productivity
- High-precision optics reduce ambient light interference
- Compact bench-top design saves lab space
- Minimal reagent/sample volume reduces per-test cost
- Automated calibration and QC support
- Stable reaction temperature (37 ± 0.1°C)
- Reliable for both routine and specialized assays
- Low maintenance with durable semi-permanent cuvettes
in the box
- 1 × Mispa CXL Pro Plus Analyzer Unit
- Control PC with operating software
- Power cable
- Network/communication cable
- Starter consumables/reagents (varies by distributor)
- User manual
- Installation & warranty documents
Use Cases :
- Routine clinical biochemistry testing
- Hospital diagnostic laboratories
- Independent pathology labs
- Preventive health screening centers
- Medical colleges & research institutions
- Testing of Serum, Plasma, Urine, CSF samples
- Suitable for assays like glucose, liver function, kidney function, lipid profile, proteins, enzymes, HbA1c, etc.
Key Features :
- Fully automated random-access biochemistry analyzer
- High throughput of up to 240 tests/hour
- Advanced HCFG rear spectrophotometry system for precise measurements
- Supports End Point, Fixed Time, Kinetic, Single & Dual Reagent chemistries
- 80 sample/reagent positions for efficient workflow
- Triple-speed mixing mechanism for optimal reaction consistency
- Built-in pre- and post-dilution facility
- Efficient washing system with 7 stops & 11 steps to minimize carryover
- Digital liquid level detection with collision protection
- Low water consumption (~4 L/hour)
- Supports LIS / TCP-IP connectivity for lab integration
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Agappe Mispa CXL Pro Plus is a compact, fully automated, discrete random-access clinical chemistry analyzer designed for hospitals, diagnostic laboratories, and pathology centers. It uses advanced Holographic Concave Flat Field Grating (HCFG) rear spectrophotometry to deliver high accuracy and r...
