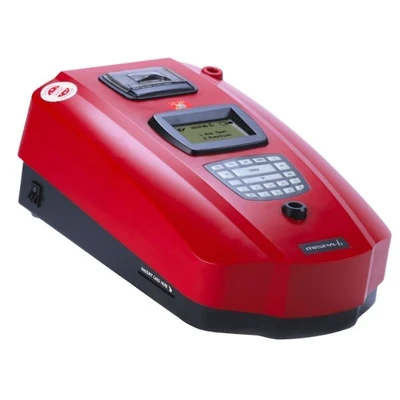

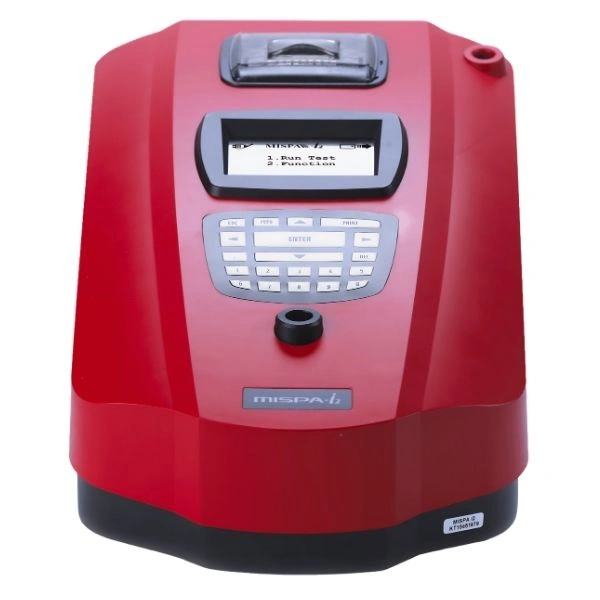

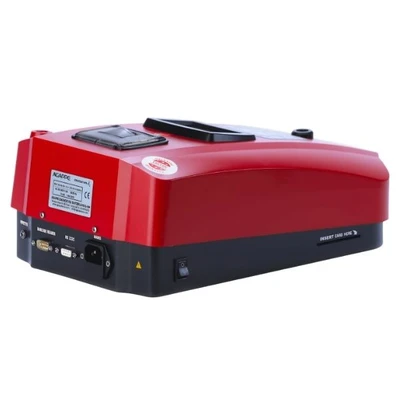

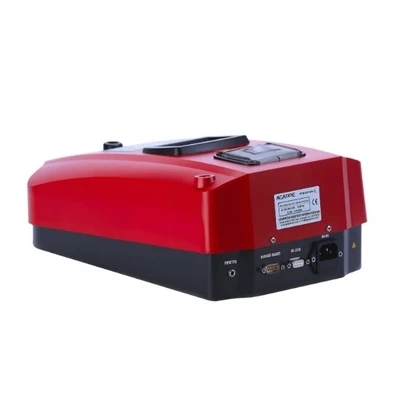

Agappe Mispa-i2 Specific Protein Analyzer

New

0.0|0 Ratings

Quantity :

Specifications

Principle : Nephelometry & Immunoturbidimetry
Calibration : Smart Card
Light Source : Laser LED (650 nm)
Laser Power : 5 mW
Detector : Laser Detector
Temperature Control : Dry Heating
Temperature Range : 37°C
Mixing : Automatic (motorized)
Zero Setting : Automatic
Keyboard : 21 Keys (Numeric + Functional)
Display : 128 × 64 Graphical Display
Printer : Inbuilt Thermal Graphical Printer
Barcode Interface : Optional (Handheld)
PC Interface : RS 232 Port
Power Supply : 85–240 VAC, 50/60 Hz
Power Consumption : 100 W

highlights

Combines two gold-standard technologies for accurate results
Wide measuring range with high linearity
Cost-effective alternative to fully automated nephelometers
Fast TAT (Turnaround Time) with minimal interference
Zero calibration cost using smart card system
Award-winning innovation with multiple recognitions in India

in the box

R1 Pipette (20–200 µL / 50–200 µL)
Sensor Pipette (20–200 µL)
Micro Pipette (2–20 µL)
Cuvette Stand
Pipette Stand
Printer Rolls (2 Nos.)

Use Cases :

Clinical laboratories for specific protein analysis
Diagnosis & monitoring of : Diabetes (HbA1c) / Cardiovascular risk (CRP, Apo proteins) / Inflammatory conditions / Rheumatology disorders (RF, ASO) / Kidney function (Microalbumin, Cystatin C)
Small to mid-size labs requiring cost-effective protein testing solution

Key Features :

Dual technology: Nephelometry + Immunoturbidimetry
Patented UCS (Unique Channel Shifting) technology for high sensitivity & linearity
25-parameter assay panel (CRP, HbA1c, D-Dimer, etc.)
Smart Card Calibration (no manual calibration required)
Prozone detection to avoid false results
3-step simple operation workflow
500 patient data storage
Auto sensing, mixing & measurement of cuvette
Barcode reader compatibility & LIS connectivity
30-minute battery backup

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Mispa-i2 is a semi-automated specific protein analyzer designed for quantitative estimation of specific proteins in biological samples. It delivers high precision and fast turnaround results using a combination of rate-based nephelometry and immunoturbidimetry.

The system incorporates patented ...
