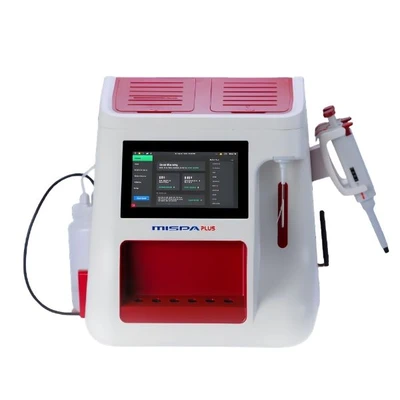

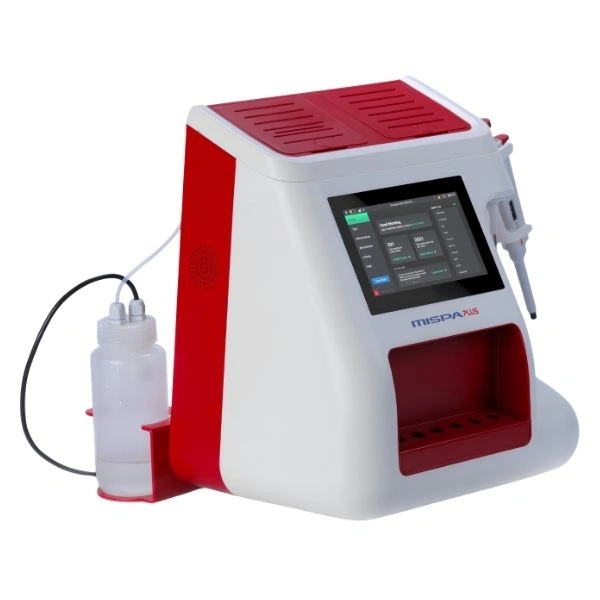

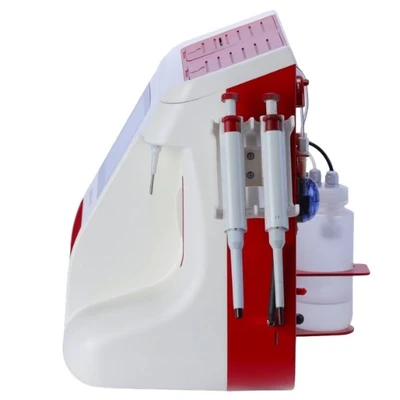

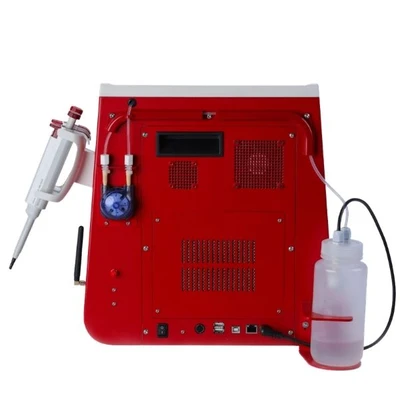

Name: Agappe Mispa Plus Semi-Automated Clinical Chemistry Analyzer
Brand: Agappe
SKU: a87b23ed-bdae-4f20-812a-b19acc5434f7
Price: 115000 INR
Availability: InStock

Specifications

Product Name : MISPA PLUS
Application : Clinical Chemistry / Biochemistry
System Type : Advanced Semi-Automated Clinical Chemistry Analyzer
Principle / Technology : Penta Lens Photometry
Photometric Range : 0–3.5 OD
Filters : 6 interference filters + 2 optional slots
Wavelengths : 340, 405, 505, 546, 578, 630 nm
Filter Bandwidth : ±5 nm
Detector : Silicon photodiode
Light Source : 12 V, 20 W Halogen Lamp
Flow Cell Volume : 18 µL
Light Path : 10 mm
Minimum Aspiration Volume : 250 µL
Temperature Control : 25°C, 30°C, 37°C
Incubator : Built-in, 6 wells
Quick Test Menu : 10 channels
Programmable Channels : 300
Patient Result Memory : 5,000 results
QC/Control Result Memory : 27,000 results
Calibration Points : Up to 10
Replicates per Calibration Point : Up to 3
QC Algorithm : Westgard's Algorithm
QC Chart : Levey-Jennings
Display : 7-inch capacitive touchscreen
Printer : Built-in 57 mm high-resolution graphic thermal printer
Interface : USB / Ethernet
Connectivity : Ethernet, Bluetooth & GSM listed in AGAPPE IoT literature
Power Supply : 115–260 VAC
Frequency : 47–63 Hz
Power Consumption : 110 V specification listed in brochure
Dimensions (L × W × H) : 450 × 350 × 385 mm
Weight : Approx. 9.7 kg
Battery Backup : Approx. 30 minutes
Storage Temperature : 10°C to 50°C
Operating Relative Humidity : 20–80% maximum
LIS Compatibility : Yes
External Keyboard : Supported

highlights

Advanced semi-automated clinical chemistry analyzer
Penta Lens Photometry technology
18 µL ERA flow cell
Low 250 µL aspiration requirement
7-inch capacitive touchscreen
Built-in 6-well incubator
Bubble detection system
Energy Matched Filter technology
300 programmable test channels
5,000 patient-result memory
27,000 QC-result memory
Built-in thermal printer
Multiple calibration and assay modes
Westgard QC support
Levey-Jennings QC chart
USB/Ethernet connectivity
Battery backup
Compact benchtop design
Suitable for routine clinical chemistry laboratories

in the box

MISPA PLUS Analyzer
Operation Manual – 1 No.
Pipette Holder – 1 No.
Print Roll – 2 Nos.
Power Cord – 1 No.
Installation Report – 1 No.
Warranty Card – 1 No.
Pipette, 100–1000 µL – 1 No.
Pipette, 5–50 µL – 1 No.
External Power Supply, DC 24 V, 120 W – 1 No.
Waste Bottle with Float Sensor – 1 No.
Holding Clamp – 1 No.

Use Cases :

Clinical diagnostic laboratories
Hospital laboratories
Pathology laboratories
Small and medium-sized diagnostic centers
Clinics with in-house laboratory testing
Medical colleges and teaching laboratories
Research and healthcare facilities requiring semi-automated biochemical analysis

Key Features :

Penta Lens Photometry System for accurate and reproducible measurements.
ERA Flow Cell with an 18 µL flow-cell volume.
Energy Matched Filter (EMF) technology for stable light intensity across wavelengths.
Bubble Detector to help eliminate measurement errors.
In-built 6-well incubator.
7-inch capacitive touchscreen display.
Minimum aspiration volume of only 250 µL.
300 programmable test channels.
5000 patient test-result memory.
Storage for up to 27,000 QC/control results.
Built-in high-resolution 57 mm graphic thermal printer.
Temperature control at 25°C, 30°C and 37°C.
USB and Ethernet connectivity; AGAPPE literature also lists Bluetooth/GSM connectivity for online system management in the IoT version.
Multiple assay modes including endpoint, kinetic, rate, bichromatic and calculated tests.
Westgard QC algorithm and Levey-Jennings chart functionality.
Built-in battery backup.
Auto power-saver mode.
