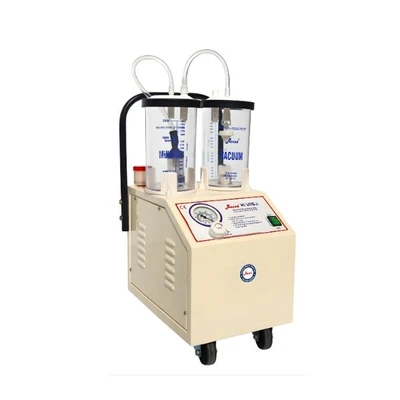

Anand HI-VAC Jr (MS BODY) Suction Machine

New

₹21,000₹35,00040% off

Specifications

Model Name : Anand HI-VAC JR. Suction Machine (MS BODY)
Housing : Powder-coated Mild Steel (MS) on four castors
Pump Type : Single rotary vane pump
Max. Vacuum Pressure : ~650 mm Hg to ~700 mm Hg (negative pressure)
Flow Rate : ~30–42 L/min (approx, depending on config)
Collection Jars : 2 × 2 L polycarbonate (PC) jars
Filter : Trap filter with built-in overflow protection
Tubing : 10 mm ID × 2 m (PVC)
Vacuum Gauge : 6.25 cm dia. analog gauge (0–760 mm Hg)
Power Supply : 220 V AC, 50/60 Hz, ~130 W
Noise Level : ~50 dB A ± 3
Dimensions (L×W×H) : ~39 × 31 × 62 cm
Net Weight : ~25 kg
Overflow Safety : Dual mechanical overflow protection
Certifications : CE, IEC 60601-1-2012 (medical safety standards)
Optional Accessories : Foot switch, bacterial filter, 110 V option

highlights

Compact and portable suction solution — ideal where space and mobility are essential.
Rapid vacuum build-up supports quick fluid removal in surgical and emergency situations.
Durable construction using mild steel with protective powder coating.
Simple interface and real-time monitoring via analog vacuum gauge.
Overflow safety and filter protection to minimize contamination risk.

in the box

1 × Anand HI-VAC JR. Suction Unit (with mild steel body & castors)
2 × Polycarbonate Collection Jars (2 L each)
Suction Tubing (PVC) — approx. 10 mm ID × 2 m
Trap Filter with overflow protection
Analog Vacuum Gauge installed on unit
Power Cord (for 220 V AC)
User Manual / Instruction Guide

Use Cases :

Emergency Departments — rapid suctioning in trauma and urgent care.
Operating Theatres (OT) — maintaining a clear surgical field by evacuating fluids.
Intensive Care Units (ICU) — airway management and suctioning of secretions.
Endoscopy Suites — fluid removal during gastroenterology and diagnostic procedures.
Obstetrics & Gynaecology — controlled suction during labour or minor procedures.
General clinical wards where intermittent suctioning is required.

Key Features :

High vacuum suction performance — quick establishment of high negative pressure.
Robust MS body mounted on castors for mobility and durability.
Single rotary vane pump designed for reliable performance.
Trap filter with overflow protection protects the pump from contamination.
Large vacuum gauge (0–760 mm Hg) for clear pressure monitoring.
Quiet operation (~50 dB A) suitable for clinical environments.
Standard 220 V AC power supply ensures compatibility with hospital electrical systems.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Anand HI-VAC JR. Suction Machine (MS BODY) is a compact, high-vacuum electric suction unit designed primarily for clinical and surgical fluid evacuation tasks. It creates strong negative pressure rapidly to evacuate bodily fluids like blood, mucus, pus, and secretions during procedures in emerge...
