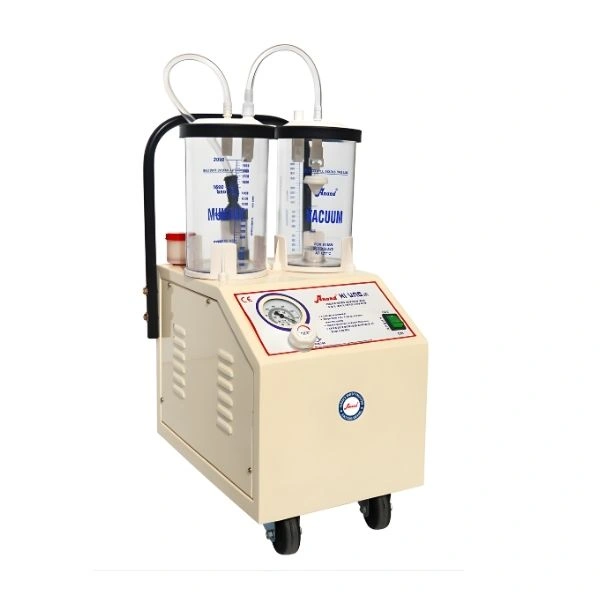

Anand HI-VAC JR. Suction Machine

New

4.1|55 Ratings

₹25,399₹35,00027% off

Quantity :

Specifications

Model Name : Anand HI-VAC JR. Suction Machine
Housing : Mild Steel (MS) / Stainless Steel on four castors
Maximum Vacuum : ~650 mm Hg (negative pressure)
Flow Rate : ~30–42 L/min (varies by listing)
Pump Type : Single rotary vane pump / piston pump
Collection Jars : 2 × 2 L polycarbonate (PC) jars
Filter : Trap filter with overflow protection
Tubing : 10 mm ID × 2 m (PVC)
Vacuum Gauge : ~6.25 cm dia, 0-760 mm Hg
Power Supply : 220 V AC, 50/60 Hz (130 W)
Noise Level : ~50 dB A ± 3
Dimensions (L×W×H) : ~39 × 31 × 62 cm
Net Weight : ~15–25 kg (varies by housing)
Overflow Safety : Dual mechanical overflow protection
Certifications : CE, IEC 60601-1-2012

highlights

Compact & mobile – perfect for emergency, OT, ICU, and endoscopy suites.
Reliable suction – quick vacuum build-up ensures clear surgical fields.
Safety-oriented design — trap filter and overflow protection enhance reliability.
Operates quietly and with standard 220 V AC power.
CE + IEC 60601-1 certified for medical equipment safety.

in the box

1 × HI-VAC JR. suction unit (with chassis and castors)
2 × 2 L polycarbonate collection jars with lids
Suction tubing (PVC)
Trap filter (with overflow protection)
Vacuum gauge installed on unit
Power cord (220 V AC)
User manual / Instruction guide (varies by seller)

Use Cases :

Emergency Departments for quick fluid management.
Operating Theatres (OT) during surgical procedures requiring fluid evacuation.
ICUs for airway suctioning and routine secretion removal.
Endoscopy units during diagnostic or therapeutic procedures.
Obstetrics / Gynaecology for labour and minor surgical suction requirements.
Gastroenterology for suction during endoscopic examinations.

Key-Features of Anand Hi-Vac Jr. Suction Machine

High-Vacuum Performance: Provides suction up to approximately 650 mmHg.
Powerful Rotary Vane Pump: Delivers consistent suction performance for clinical procedures.
Adjustable Vacuum Control: Allows suction pressure to be adjusted as required.
Dual Collection Jars: Includes two 2-litre polycarbonate jars for fluid collection.
Overflow Protection: Trap filter and mechanical protection help prevent fluid from reaching the pump.
Easy Pressure Monitoring: Large analogue vacuum gauge provides clear pressure readings.
Trolley-Mounted Design: Four castors allow easy movement between clinical areas.
Low-Noise Operation: Designed for relatively quiet operation during procedures.
Durable Construction: Available with mild steel or stainless-steel housing.

Warranty

Seller

AA Medie QuipLearn More

Product Description

The Anand HI-VAC JR. Suction Machine is a high-vacuum electric suction unit designed for efficient removal of blood, mucus, secretions, and other fluids during medical and surgical procedures. Its trolley-mounted design with four castors makes it convenient to move between different clinical areas s...
