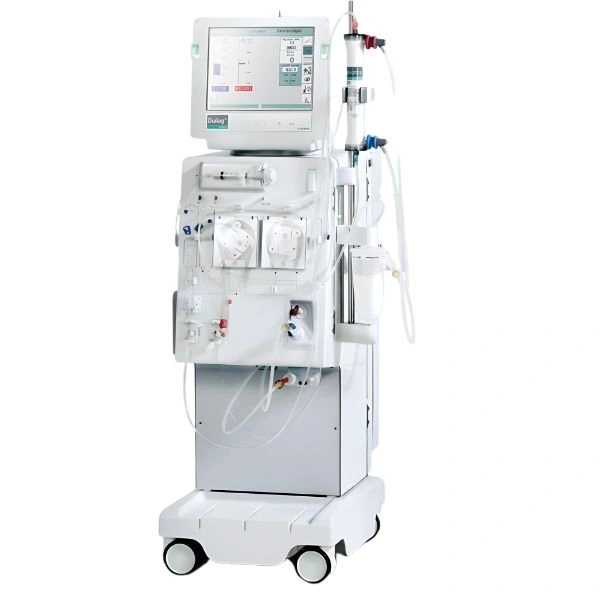

B BRAUN Dialog+ Hemodialysis Machine

Shipping time and rates

Shipping about 5-7 days

B BRAUN Dialog+ Hemodialysis Machine

New
4.3|12 Ratings

Quantity :

1

Specifications

  • Product Name : B. Braun Dialog+ Hemodialysis Machine
  • Brand : B. Braun
  • Display : 15-inch rotating TFT color touchscreen
  • Dimensions (W × D × H) : Approx. 510 × 637 × 1678 mm
  • Weight : Approx. 78 kg
  • Power Supply : 230 V (optional 120/240 V)
  • Frequency : 50 / 60 Hz
  • Dialysate Flow Rate : 300 – 800 mL/min
  • Blood Pump Flow Rate : 50 – 600 mL/min
  • Ultrafiltration Rate : 0 – 4000 mL/h
  • Conductivity Range : 12.5 – 16 mS/cm
  • Dialysate Temperature : 33 – 40 °C
  • Heparin Pump Rate : 0.1 – 10 mL/h
  • Syringe Sizes : 10, 20, 30 mL
  • Water Pressure : 0.5 – 6 bar
  • Water Temperature : 10 – 30 °C
  • Arterial Pressure Range : −400 to +400 mmHg
  • Venous Pressure Range : 20 – 390 mmHg
  • Dialysis Modes : Hemodialysis (HD), Ultrafiltration (UF), Hemodiafiltration (HDF)
  • Disinfection Methods : Thermal and chemical automatic disinfection
  • Safety Systems : Air bubble detector, blood leak detector, pressure monitoring alarms
  • Compliance Standards : EN 60601-1, EN 60601-2-16 medical device standards

highlights

  • Real-time dialysis dose monitoring using Adimea™ technology
  • Advanced UF and dialysate profiling for individualized therapy
  • Automated self-testing and monitoring systems for patient safety
  • Automatic on/off scheduling and disinfection programs
  • Integrated heat exchanger and improved workflow efficiency
  • Flexible treatment options including HD, UF, and HDF
  • Rotatable ergonomic display and user-friendly interface
  • Long service interval and low maintenance requirements

in the box

  • B. Braun Dialog+ Hemodialysis Machine (Main Unit)
  • Rotating touchscreen monitor
  • Power cable and connection cables
  • Bicarbonate cartridge holder (model dependent)
  • User / operator manual
  • Basic installation accessories
  • Service documentation and warranty card

Use Cases :

  • Hospital dialysis units
  • Standalone dialysis centers
  • Nephrology departments
  • Acute kidney injury (AKI) treatment
  • Chronic kidney disease (CKD) maintenance dialysis
  • Online hemodiafiltration therapy
  • Sequential ultrafiltration treatments

Clinical Benefits

  • Continuous, Blood-Draw-Free Dose Monitoring with Adimea: Adimea continuously monitors dialysis dose using UV absorbance, with studies showing a close correlation between blood-sample spKt/V and Adimea's UV-absorbance spKt/V. This can support treatment adjustments during the dialysis session.¹
  • Fewer Hypotensive Episodes with bioLogic RR® Comfort: Clinical study data reported 52% fewer treatments with hypotensive episodes, 82% fewer treatments with a hypotensive symptom, and 64% fewer treatments requiring intervention.²
  • Gentler Vascular Access Handling with SN-CO: Near-constant dialyser pressure and minimal recirculation help reduce physical stress on the shunt, supported by more than 15 years of clinical use.
  • Better Haemodynamic Stability with HDF: Online substitution fluid supports high clearance of small and medium urea molecules while providing improved circulatory stability compared with standard HD.

Key-Features of B Braun Dialog+ Dialysis Machine

  • 1. Three Flexible Device Configurations: Available in Single Pump, Double Pump, and HDF Online versions, allowing the setup to match the facility's dialysis requirements.
  • 2. Touchscreen Control with One-Touch Level Regulation: Fluid levels can be adjusted with a single tap and remain fully functional across DN/SN modes and different operating phases.
  • 3. Adimea Real-Time Dialysis Dose Monitoring: Uses UV spectroscopy of spent dialysate to continuously monitor Kt/V without requiring blood samples, using the pre-dialysis weight.
  • 4. bioLogic RR® Comfort Biofeedback (Optional): Measures the patient's blood pressure and can predictively adjust ultrafiltration to help reduce sudden drops in blood pressure.
  • 5. Significantly Quieter Operation: Provides a measured 5.2 dB(A) reduction in noise, helping create a quieter treatment environment.
  • 6. Integrated Heat Exchanger for Energy Savings: The counter-flow design recovers thermal energy from outgoing water, reducing the energy required to heat the dialysate.
  • 7. Single-Needle Cross-Over (SN-CO) Mode: Uses pressure-controlled operation to maintain blood flow with minimal recirculation and reduced shunt stress.
  • 8. HDF Online Capability: Produces ultra-pure substitution fluid on demand within the dialyser for high-clearance haemodiafiltration in pre- or post-dilution modes.
  • 9. Comprehensive Safety Monitoring: Continuous ultrasound air detection, optical blood-leak detection, and multi-point pressure monitoring help monitor treatment safety throughout the dialysis session.

Why Choose the B. Braun Dialog+ Dialysis Machine?

  • Want one complete system from a single manufacturer: Options, accessories, and consumables are all designed by B. Braun to work together, helping reduce compatibility concerns and simplify procurement.
  • Looking to control running costs: The integrated heat exchanger and long-life dialysis fluid filter can help reduce water, energy, and consumable costs over the machine's working life.
  • Need a system that can grow with your facility: You can start with the Single Pump configuration and expand toward Double Pump or HDF Online systems as your treatment requirements change.
  • Want a system shaped by real clinical feedback: Comfort, functionality, and environmental improvements in this generation were developed with input from healthcare providers and patients.
  • Need recognised compliance for procurement: The machine is manufactured according to recognised medical device standards, supporting procurement and compliance requirements.
  • Prefer an established manufacturer: B. Braun has decades of experience in extracorporeal therapy and nephrology equipment.

Warranty

Seller

AA Medie QuipLearn More

Product Description

The B. Braun Dialog+ dialysis machine is a haemodialysis system designed for hospitals, standalone dialysis centres, and nephrology clinics that need a combination of clinical accuracy and practical day-to-day operation. Backed by B. Braun's experience in extracorporeal blood treatment, the B. Braun...
