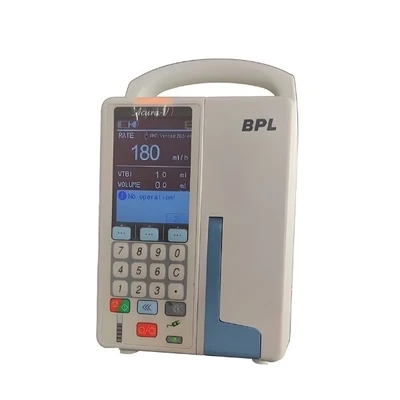

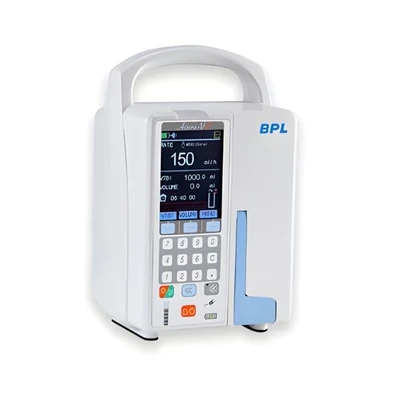

BPL Acura V1 Volumetric Infusion Pump

New

₹40,000₹54,00026% off

Specifications

Display : 3.2 inch Color TFT (240X320 Pixels)
IV Sets : Standard IV sets of 20d/ml and 60d/ml, with diameter 3.4-4.5mm
Infusion Rates : Rate Mode, Time Mode, Drug/ Weight Mode, Drip Rate Mode(optional)
Infusion Accuracy : <+-5%
Flow Rate Range : 0.1 ml/hr-1200ml/hr (20d/ml IV set) / 0.1 ml/hr-150ml/hr (60d/ml IV set)
BOLUS : Default 600ml/h, Values adjustable within 10-1200ml/hr (20d/ml IV set) | Default 150ml/h ,Values adjustable within 10-150ml/hr (60d/ml IV set)
BOLUS Accuracy : <+-5%
Purge Rate : 600ml/hr (20d/ml IV set) | 150ml/hr (60d/ml IV set)
KVO : 0.1-10ml/hr (after infusion)
Occlusion Level : 3- level sensitivities
Bubble Detection : Ultrasonic with 3-level sensitivities setting, working frequency: 2MHz±5% Effective bubble detection volume:≥0.025ml
Power Supply : 100V-240V AC，50Hz/60Hz
Battery Type : Internal rechargeable Ni-MH DC12V 2000mAh
Battery Backup : 4 hours at 25ml/hr after fully recharged
Dimension : 167mm(L) X 125mm(B) X 115mm(H)

highlights

Vibrant Display: Features a 3.2-inch high-definition color display for clear visualization of infusion data.
Versatile Infusion Modes: Supports multiple infusion modes including Rate, Time, Weight, Stage, and Drip Rate Mode.
Integrated Drug Library: Includes a built-in drug library to enhance medication administration safety and efficiency.
Extended Battery Backup: Offers a 4-hour battery backup for uninterrupted operation during power outages.
Universal Power Compatibility: Operates on a wide power range of 100V-240V.

in the box

Device
Power cord
Manual

Use Cases :

General Ward Infusion Therapy
Intensive Care Unit (ICU) Medication Delivery
Post-Operative Pain Management
Chemotherapy Administration
Fluid and Electrolyte Replacement
Nutritional Support (TPN/IPN)

Key Features :

3.2-inch High definition color display
Infusion Modes: Rate Mode, Time Mode, Weight Mode, Stage Mode, Drip Rate Mode
In-built Drug Library
Dual Bolus Modes: Manual & Automatic bolus
3 level of occlusion pressure (programmable)
2000 history records and last configuration memory
Horizontal & Vertical fixation clamp.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The BPL Acura V1 Volumetric Infusion Pump is engineered for precision and reliability in clinical settings. Its user-friendly interface is highlighted by a bright 3.2-inch high-definition color display, providing clear and easily readable information. This advanced pump is designed to cater to a var...
