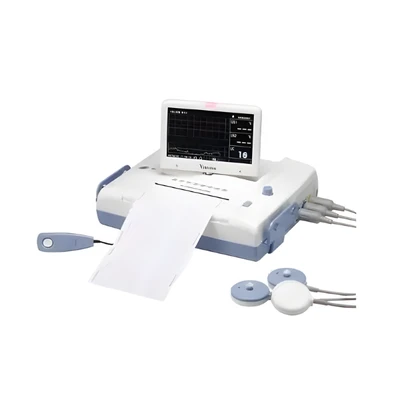

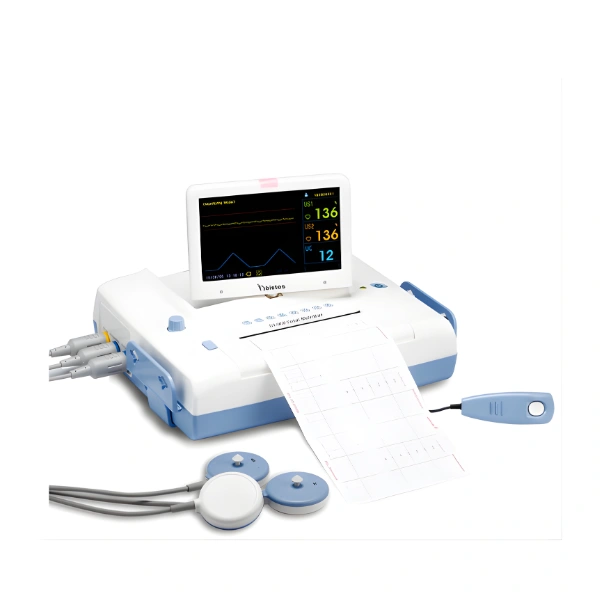

Bistos BT350 Fetal Monitor CTG Machine

New

₹45,500₹60,00024% off

Specifications

FHR Range (BPM) : 30 ~ 240 / 50 ~ 210
UC Probe : External type
UC Range : 0 - 99
Display Type : 7” Color LCD
Trend Data Save : 450 Hours
Alarm Sound Level : 2 levels
Alarm Sound : Tachycardia, Bradycardia
Information Sound : Probe Disconnection, Printer door open, No Paper, Low Battery
Printer Speed : 1, 2, 3cm/minute, 10cm/min(Trend mode only)
Thermal Paper (Z-fold) : 150mm(W) x 13.5m(L)
Auto Print : 10, 20, 30, 40, 50, 60minute
PC Interface : RS-232C / Ethernet
Power : AC100-240V (50/60Hz) DC18V/2.5A
Weight (Kg) : 2.8
Battery Life (h) : Optional 3-5

highlights

7-inch wide TFT color LCD display
Monitors Fetal Heart Rate (FHR) and Uterine Contractions (UC)
Supports Fetal Movement (FM) monitoring
Provides CTG analysis including baseline, acceleration, deceleration, and fetal movement
Stores up to 150 patient data records
Enables Fetal heart sound play and record to PC
Features a rotating screen for versatile viewing angles
Supports multiple language options
Capable of Twin Monitoring with two pulsed Ultrasound Transducers
Dual power capability: External power adapter and internal rechargeable Li-ion battery

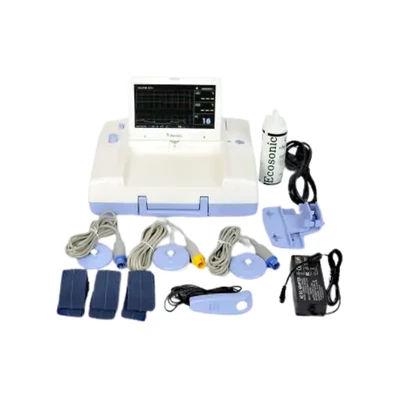

in the box

2 Doppler Probe (FHR), 1 UC Contraction Probe
Event Marker, AST Probe (Option)
2x Z-folded type Paper, Probe Belts
Power Cord & Power Adaptor
Battery (Optional)
Ultrasound Gel

Use Cases :

Antepartum fetal monitoring in clinical settings.
Tracking fetal well-being during pregnancy.
Assessing uterine activity and fetal response.
Assessing uterine activity and fetal response.
Monitoring fetal movement patterns.
Twin pregnancy monitoring.
Continuous fetal monitoring in labor and delivery wards.
Recording and analyzing fetal heart sounds for diagnostic purposes.

Key Features :

BT-350 LCD – displays trace and numbers. Stored data can be reviewed afterward.
CTG Analysis* – calculates important data such as baseline, Acceleration, Deceleration, fetal movement.
Cross Channel Verification – prevent the FHR is miscalculated by twin fetus by an alarm.
Multi-Language Support* – 13 languages including English, Chinese, Spanish, German, Russian, Portuguese
BT-350 LED – displays numbers only. A large and bright LED is visible from a distance.
Various Paper Selection – BT-350 can use two most usual papers in the market (30-240bpm / 50-210bpmUSB Data Save – FHR and UC trend data can be exported to USB memory stick and it can be managed by BCM-350 Central Monitoring Software.
Central Monitoring Software – Works on BCM-350 software along with other Fetal monitors by wire or wireless.
Portability – Compact design with built-in handle enable portable use especially to midwives.
Rechargeable Battery (Optional)* – Li-ion battery enable BT-300 can operate without AC power up to 3 hours
Waterproof probe – All probes are waterproof and ready for a water birth (IPX8).
Offset DOP2 FHR – This function makes DOP2 FHR 20 bpm higher to enhance DOP2 trend easy to read.
Acoustic Stimulator* – Stimulate sleeping fetus to speed up the test or to facilitate further evaluation of the non-stress test (NST).
Zoom-in Function – Enlarge FHR graph scale on the paper to examine the trend with more dynamics by focusing FHR range to the most frequent area
Connection – Maximum connection: 16 monitors, Wire connection: RS-232C, LAN*Wireless connection: Bluetooth (optional)
Various Bed Display mode – Various styles of Bed display can satisfy every user with their own preference.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

Bistos BT350 Fetal Monitor CTG Machine indicates FHR as numeral by irradiating ultrasound at the abdomen, abstracting Doppler frequency of heart oeat cycle from the signals reflected from fetal heart, and outputting FHR change as s sound, and analyzing these signals. Bes des, you can measure UC oy u...
