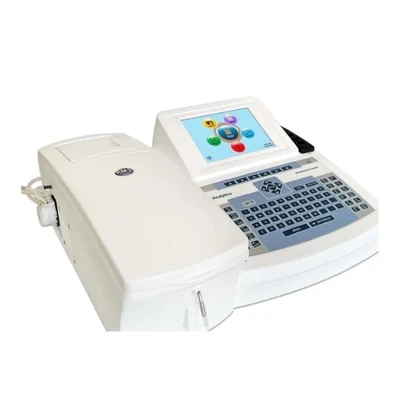

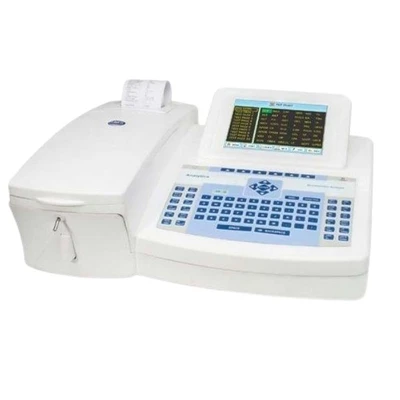

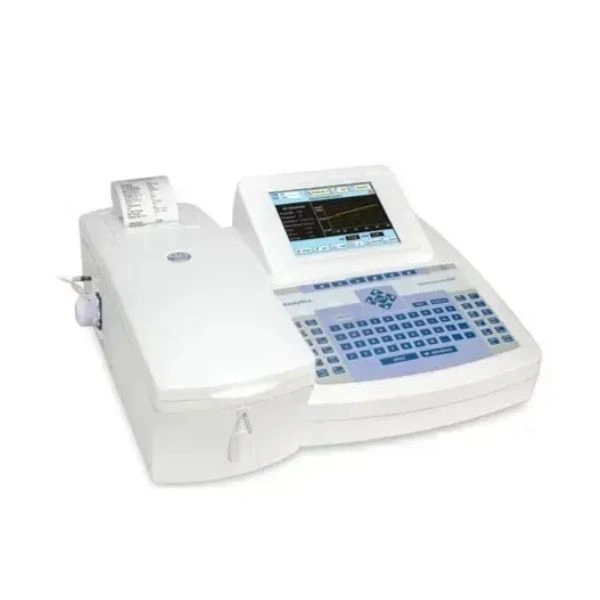

RMS Analytica 705 Semi Automatic Biochemistry Analyzer

New

Specifications

Flow cell : 30µl quartz
Light source : Quartz halogen lamp 6v/10W
Temperature : 25, 30, 37°C, Room temperature
Temperature control : By Peltier element
Photodetector : UV Enhanced silicon photodiode
Cuvette option : 10mm square
Filter : 340, 405, 505, 546, 578, 620, 670 with 3 optional
Filter selection : Filter wheel: Through stepper motor
Reaction volume : 350–1000µl
Aspiration : Peristaltic pump
Photometric range : -0.1 to 3.0 absorbance
Resolution : 0.001 absorbance
Linearity : < 1%
Blanking : Automatic zero setting
Calibration : Automatic against standard with auto storage of graph
QC : 3 control per test with Levey-Jennings
Display : 640x480 pixel, color TFT 5.7"
Printer : Thermal printer
Air purge : After each sample
Memory : 100000 test results
Result recall : Test name, Patient name, Sample ID, Date
Dimension : 420 × 310 × 150 mm
Power supply : 110–250V, 50Hz ±10%
Weight : 8 Kg

highlights

Semi-automatic biochemistry analyzer designed for hospital clinics.
Compact and reliable with a user-friendly graphical interface.
Accommodates up to 248 programmable tests.
Features a high-resolution absorbance measurement (0.001 Abs).
Includes 7 built-in filters with 3 optional positions for versatile testing.
Generous memory capacity for 100,000 test results.
Equipped with 2 USB ports and 1 RS232 port for connectivity.
Integrated thermal printer for immediate result reporting.

Key Features :

Color Graphical Display with GUI
7 Filters and 3 optional positions
48 direct test keys on board
Lamp saving indication on keyboard
100000 memory of test results
248 tests can be programmed
Facility to create test profiles
2 USB port, 1 RS port
Search data by Patient ID, Test name, Date, Sample ID
Real-time online graph and temperature on the screen
WiFi connectivity (optional)
LIS software available (optional)

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The RMS Analytica 705 Biochemistry Analyzer is a semi-automatic, compact, and highly reliable instrument engineered to meet the demands of modern hospital clinics and clinical laboratories. Its intuitive color graphical display with a GUI ensures a user-friendly experience, making complex testing pr...
