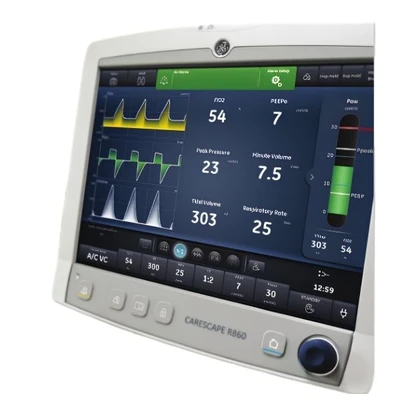

Carescape R860 ICU Ventilator

New

0.0|0 Ratings

Quantity :

Specifications

Manufacturer : GE HealthCare
Model : CARESCAPE R860
Patient Type : Adult / Pediatric / Neonatal
Ventilation Type : Invasive & Non-invasive
Display : Touchscreen UI
Tidal Volume Range : 2–2000 mL
Respiratory Rate : 1–120 breaths/min
Peak Flow : Up to 100 L/min
Pressure Range : 1–98 cm H₂O
PEEP Range : 1–50 cm H₂O
FiO₂ : 21–100%
Minute Volume : 0–99.9 L/min
Airway Pressure Monitoring : -20 to +120 cm H₂O
Device Weight : 31 kg (without cart)
Weight with Cart : 78 kg
Dimensions (Main Unit) : 38 × 36 cm
Operating Temperature : 10°C – 40°C
Humidity : 15–95% RH

highlights

Designed for critical care ventilation
Provides past, present, and predictive patient data
Helps reduce clinician workload through automation
Supports advanced lung measurement tools such as : Compliance / Resistance / Auto PEEP / Functional Residual Capacity (optional)
Flow sensor checks airway pressure and flow 250 times/second
Infection-control compatible with reusable or single-patient-use accessories
Optional SpiroDynamics / FRC INview for advanced pulmonary analysis

in the box

CARESCAPE R860 Ventilator Main Unit
Display Monitor
Mobile Cart / Trolley
Power Cable
Inspiratory Safety Guard (ISG)
Exhalation Valve Assembly (EVA)
Flow Sensor
Breathing Circuit (depends on configuration)
User Manual / Documentation
Optional Respiratory Gas Module (model dependent)

Use Cases :

ICU Mechanical Ventilation
Acute Respiratory Failure Management
Post-operative Ventilatory Support
ARDS / Lung Injury Management
Neonatal Intensive Care
Non-invasive Ventilation (NIV)
Weaning from Mechanical Ventilation
High-flow oxygen therapy

Key Features :

Supports Adult, Pediatric & Neonatal Patients
Advanced Ventilation Modes including volume, pressure, spontaneous, and non-invasive ventilation
Intuitive Touchscreen Interface with trend visualization and workflow-based navigation
Clinical Decision Support Tools for lung protective ventilation and weaning
SBT (Spontaneous Breathing Trial) Mode for structured weaning
Integrated Respiratory Gas Monitoring (optional)
High Flow O₂ Therapy
Leak Compensation & Automatic Patient Detection
Comprehensive Alarm System with escalating priority alarms
Snapshot Function for storing critical patient data

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The CARESCAPE R860 ICU Ventilator is an advanced critical-care ventilator designed for adult, pediatric, and neonatal patients (≥0.25 kg). It provides invasive and non-invasive respiratory support in ICU settings. The ventilator is designed with an intuitive user interface, advanced lung mechanics ...
