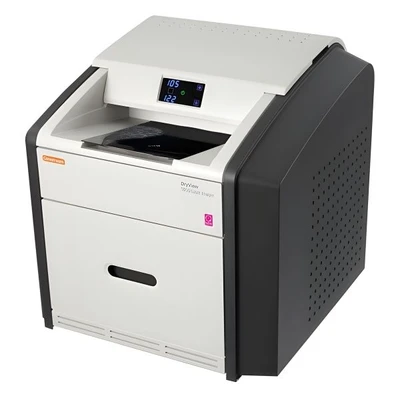

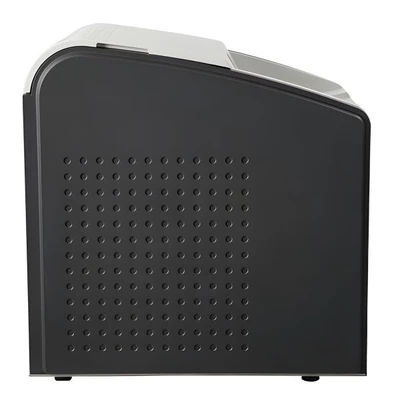

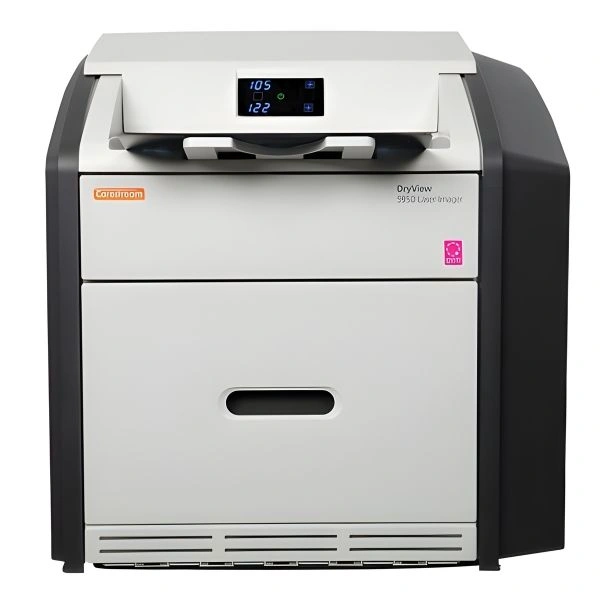

Carestream Dryview 5950 Laser Imager

New

0.0|0 Ratings

Quantity :

Specifications

Model : DRYVIEW 5950 Laser Imager
Technology : Photothermographic (Dry Laser)
Resolution : 508 pixels per inch
Laser Spot : Spacing 50 microns
Pixel Depth : 14-bit
Throughput : Up to 70 films/hour (14" × 17")
Time to First Print : Approx. 100 seconds
Film Sizes Online : 2 sizes simultaneously
Supported Film Sizes : 14" × 17", 11" × 14", 10" × 12", 8" × 10"
Film Type : Blue or Clear, 7-mil polyester base
Sheets per Cartridge : 125 sheets
Mammography Support : Yes (FFDM / CR Mammography)
Network Connectivity : Integrated DICOM Interface
Ethernet : 10/100/1000 Base-T
Dimensions (H × W × D) : 66.6 × 62.6 × 64.9 cm
Weight : 79 kg (175 lbs)
Power Supply : 100–120 VAC or 200–240 VAC, 50/60 Hz
Power Consumption : Max 9A / 4.5A
Operating Temperature : 15°C to 33°C
Operating Humidity : 20% to 80% RH (non-condensing)
Altitude : -30 m to 3000 m
Magnetic Field Tolerance : < 50 Gauss

highlights

Prints up to 70 films per hour (14" × 17")
First print in approximately 100 seconds
Supports blue or clear film
Long archival life (100+ years) for critical diagnostic records
No daily or weekly print-head maintenance
Built-in densitometer for mammography quality control
Available in multiple user interface languages

in the box

DRYVIEW 5950 Laser Imager Unit
Power cable
User documentation/manual
Starter film cartridge(s)
Network interface components
Installation/accessory kit

Use Cases :

Computed Radiography (CR)
Digital Radiography (DR)
Magnetic Resonance Imaging (MRI)
Computed Tomography (CT)
Full-Field Digital Mammography (FFDM)
CR Mammography
Oncology and pediatrics imaging archive printing

Key Features :

Photothermographic (Dry Laser) Technology – No wet chemistry required.
Built-in Mammography Capability – Supports FFDM and CR mammography without hardware or software upgrades.
High Image Quality – 508 laser pixels per inch with 50-micron laser spot spacing.
14-bit Pixel Depth Architecture for excellent grayscale detail.
Automatic Image Quality Control (AIQC) – Ensures consistent film-to-film quality without manual intervention.
Tabletop Design – Compact footprint for easy installation.
Dual Film Size Online – Keeps 2 film sizes loaded simultaneously for faster workflow.
Integrated DICOM Interface – Prints directly from DICOM modalities.
Smart Link Remote Technology for remote support and monitoring.
Daylight-load Film Cartridges – Easy handling and faster replacement.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Carestream DRYVIEW 5950 Laser Imager is a compact tabletop dry laser medical film printer designed for high-quality diagnostic image printing. It combines true laser imaging technology, built-in mammography capabilities, and efficient workflow in an affordable, space-saving system. It is suitabl...
