Draeger Babylog VN600 Neonatal Ventilator

Shipping time and rates

Shipping about 5-7 days

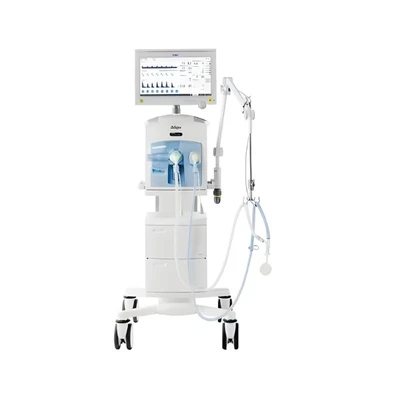

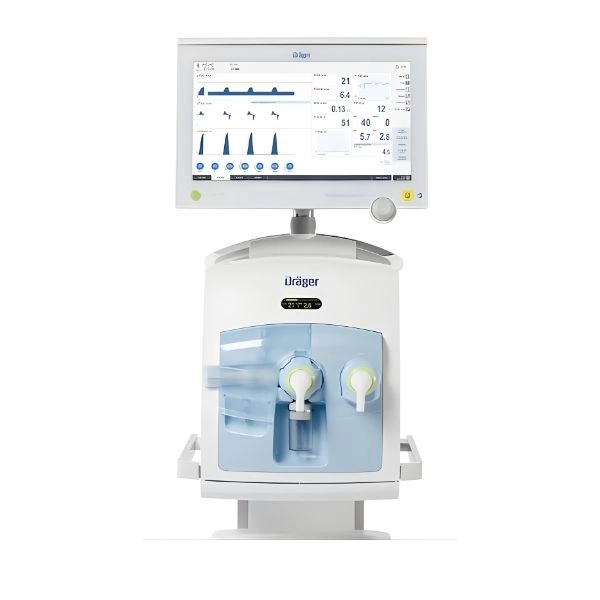

Draeger Babylog VN600 Neonatal Ventilator

New
4.1|55 Ratings

Quantity :

1

Specifications

  • Product Name : Dräger Babylog VN600 Neonatal Ventilator
  • Brand : Draeger
  • Patient Category : Neonates, Pediatric Patients
  • Ventilation Modes : PC-CMV, PC-SIMV, PC-AC, PC-APRV, PC-PSV, PC-HFO, PC-MMV, SPN-CPAP/PS, SPN-CPAP/VS, SPN-CPAP, SPN-PPS
  • Ventilation Types : Invasive, Non-Invasive (NIV), O2 Therapy, High-Flow/NIV transitions
  • Respiratory Rate : 0.5 – 150 breaths/min
  • Inspiratory Time (Ti) : 0.1 – 3 s (neonates)
  • Tidal Volume (VT) : Neonates: 2 – 100 mL; Pediatric: 20 – 300 mL
  • Inspiratory Flow : Neonates up to 30 L/min; pediatric higher
  • Inspiratory Pressure : 1 – 80 mbar (cmH₂O)
  • PEEP : 0 – 35 mbar (cmH₂O)
  • FiO₂ Range : 21% – 100%
  • Trigger Threshold : 0.2 – 5 L/min
  • Display : 15.6″ Capacitive Touchscreen
  • Connectivity : RS232, USB, LAN, HL7 export
  • Internal Battery : ~30 min standalone operation
  • Power Supply : 100 – 240 V AC, 50/60 Hz

highlights

  • Comprehensive ventilation suite covering invasive, non-invasive, and high-frequency ventilation modes.
  • Intuitive touchscreen operation reduces training time and clinical errors.
  • Protective strategies like Volume Guarantee and Smart Pulmonary View for safer neonatal care.
  • Seamless connectivity with hospital IT systems for improved clinical data workflows.
  • Adaptability in clinical environments, from NICU bedsides to integrated respiratory care workflows.

in the box

  • Dräger Babylog VN600 Ventilator Unit
  • Power Supply & Cables
  • Internal Battery & Connectors
  • Patient Circuit Interfaces
  • User Manual & Documentation
  • Optional Accessories (depending on configuration and seller): external battery packs, trolley, additional sensors/cables

Use Cases :

  • Neonatal Intensive Care Units (NICUs) to support preterm and critically ill infants with respiratory failure.
  • Pediatric care where specialized ventilatory support is required.
  • Invasive Ventilation for neonates requiring endotracheal airway support.
  • Non-Invasive Ventilation (NIV) when less aggressive respiratory support is preferred.
  • Oxygen Therapy and High-Flow Support integrated into ventilation workflows.
  • Transport & Emergency Care with battery backup for short movements or outages.

Clinical Benefits

  • Reduced Risk of Ventilator-Induced Lung Injury: Volume Guarantee and HFO-VG modes help maintain stable tidal volumes and reduce the pressure and volume variations associated with lung injury.
  • Support for Safer Weaning: Mandatory Minute Ventilation and dedicated weaning-focused modes support the transition towards the infant's own respiratory drive and may help reduce BPD risk.
  • Reliable Performance Despite Leaks: Dräger's leak adaptation and compensation technology helps maintain sensitive triggering and stable volumes even when using uncuffed endotracheal tubes.
  • Fewer Missed or Delayed Alarms: The 360° alarm light, combined with complete alarm and trend recording, helps NICU staff identify and respond to changes promptly.
  • Uninterrupted Care During Transport: Using the same ventilator during transport avoids the need to switch devices while moving the infant.
  • Support for Kangaroo Care: Longer circuits and cables allow parents to hold their baby skin-to-skin while continuing ventilation, supporting an important developmental care practice.

Why Choose the Dräger Babylog VN600?

  • Built specifically for neonates: The ventilation modes and features are designed around the respiratory needs of premature and critically ill newborns rather than being adapted from adult equipment.
  • Designed to support lung protection: Protective ventilation strategies are intended to help reduce preventable complications such as bronchopulmonary dysplasia (BPD), which is a significant concern in extremely low birth weight infants.
  • Easy to learn and operate: The tablet-like interface provides a straightforward workflow that can help staff become familiar with the system and reduce operating errors during critical situations.
  • Fits a developmental care-friendly NICU: Low operating noise, easy-to-clean surfaces, and longer circuits support practices such as kangaroo care while maintaining ventilation.
  • Backed by a specialist manufacturer: Drägerwerk AG & Co. KGaA has extensive experience in acute care and ventilation, supported by a global service and support network.
  • Future-ready connectivity: Supports HL7 data export and standardised device interoperability through Dräger's CC300 connectivity approach.

Key Features of the Dräger Babylog VN600

  • Lung & Brain Protective Ventilation Modes: Supports protective ventilation throughout the respiratory cycle to help reduce the risk of lung injury, haemodynamic effects, and neurological impairment.
  • Original Dräger Volume Guarantee: Automatically regulates pressure to deliver consistent tidal volumes while helping avoid over- or under-ventilation of fragile lungs.
  • High Frequency Ventilation with Volume Guarantee (HFO-VG): Combines high-frequency ventilation with volume-targeted control to support lung-protective ventilation.
  • Mandatory Minute Ventilation (PC-MMV/VG+PS): Helps maintain stable minute ventilation and supports a smoother, more protective weaning process.
  • Dräger Leak Adaptation & Compensation: Maintains sensitive triggering and stable tidal volumes even when using uncuffed ETTs or when leaks are present around the airway.
  • Intuitive Glass Touchscreen Interface: Provides tablet-like operation with configurable views, step-by-step guidance, and quick access to settings and clinical data.
  • 360° Alarm Light: Displays the corresponding alarm priority colour and remains visible from different directions across the NICU.
  • Seamless Intra-Hospital Transport: The ventilator can continue to be used during transport without changing devices, operating independently on gas and external power with bed coupling for incubator or bed transport.
  • Compact, Flexible Workplace Integration: Space-conscious cockpit design fits different NICU layouts and mounting arrangements within the Babylog family.
  • Full Data Recording & USB Export: Records patient data, alarms, and trends, with USB export available for recordkeeping and analysis.

Warranty

1 Year

Seller

AA Medie QuipLearn More

Product Description

The Dräger Babylog VN600 is a high-end neonatal ventilator designed for premature and critically ill newborns who need specialised respiratory support in the NICU. As part of Dräger's Babylog family, the Draeger VN600 combines lung and brain protective ventilation modes, an intuitive touchscreen int...
