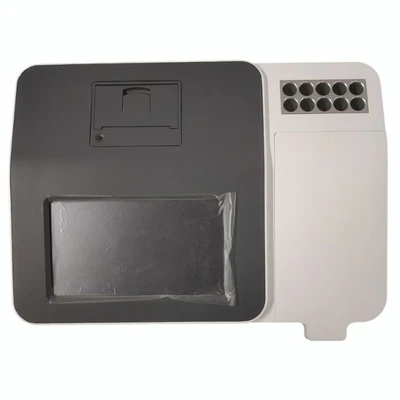

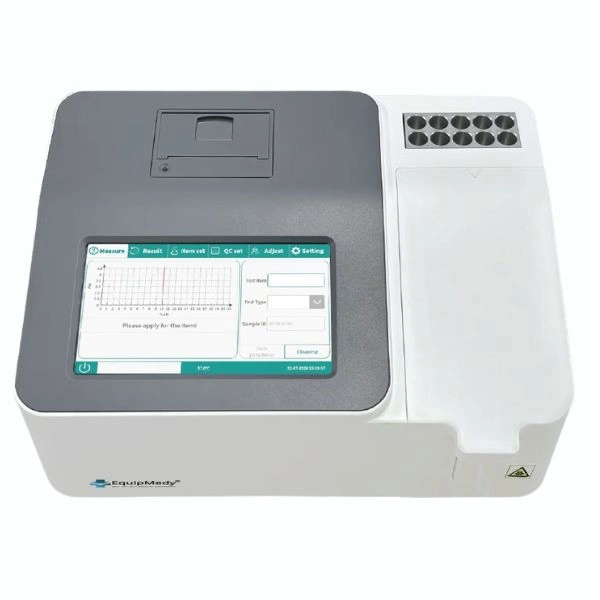

Equipmedy SA-020 Semi Automatic Biochemistry Analyzer

New

Specifications

Analysis Methods: End-Point Method, Rate Method, Two-Point Method, Multi-Standard Method, Dual-Wavelength Method, Two-Point Endpoint Method
Sample Types Supported: Serum, Plasma, Urine, Cerebrospinal Fluid (CSF)
Sample Volume: 1 µL – 5000 µL (adjustable)
Filters / Wavelengths: 340 nm, 405 nm, 450 nm, 505 nm, 546 nm, 578 nm, 630 nm (Optional 670 nm filter available
Flowcell: Cuvette design for reliable optical readings
Absorbance Range: 0–4.0 A (typical)
Absorbance Accuracy: High-precision measurement resolution (up to 0.0001 A)
Display: Large 7-inch color touch screen
Interface: Standard USB port for data export and connectivity
Result Storage: Up to 100,000 records
Built-In Thermal Printer: Ready-to-print results with graphical support
Size: Approx. 340 mm (Depth) × 260 mm (Width) × 142 mm (Height)
Net Weight: Approx. 4.6 kg — lightweight and easy to position on lab benches

highlights

Delivers consistent and reproducible results
Easy-to-use interface suitable for daily lab operations
Flexible assay options covering wide clinical parameters
Compact benchtop design saves valuable lab space
Low maintenance design for long-term use

in the box

MML SA-020 Semi Automatic Biochemistry Analyzer
Power Cable
Quartz Flowcell Assembly
User Manual
Warranty Card

Use Cases

Hospital pathology laboratories
Diagnostic and reference labs
Health check-up and wellness centers
Small to medium-sized clinical laboratories

Key-Features

Supports multiple biochemistry testing methods for routine diagnostics
Automatic optical filter system for flexible and accurate measurements
High-quality quartz flowcell for stable absorbance readings
Peltier-based temperature control for reliable reaction conditions
Bright color LCD display with graphical result visualization
Allows manual entry of standards and absorbance values
Compatible with open-system biochemistry reagents

Test Menu & Parameters

Hepatic Function: ALB, TP, ALP, AST (GOT), ALT (GPT), GGT, DB, TB
Inorganic Ions: Ca, Cl, Fe, K, Mg, Na, P
Kidney Function: CREA, UA, UREA
Cardiac Biomarkers: CK, CK-MB, HBDH, LDH
Blood Lipids: CHOL, TG, HDL, LDL, ApoA1, ApoB, Lp(a)
Others: AMY, GLU

Warranty

No Warranty

Seller

AA Medie QuipLearn More

Product Description

The Equipmedy SA-020 Semi Automatic Biochemistry Analyzer is a dependable laboratory instrument built for accurate and routine biochemical analysis. It smartly balances manual sample handling with automated processing to improve daily lab efficiency. With stable temperature control, clear color disp...
