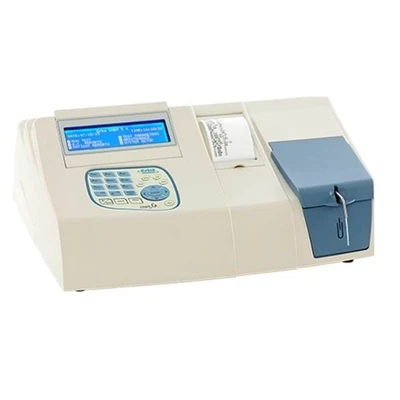

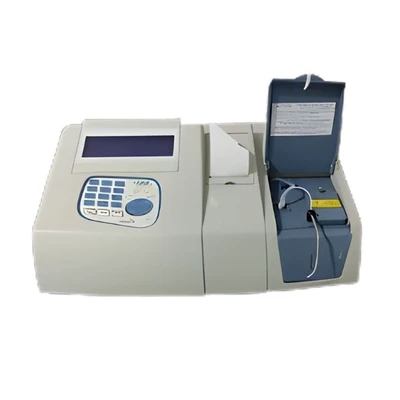

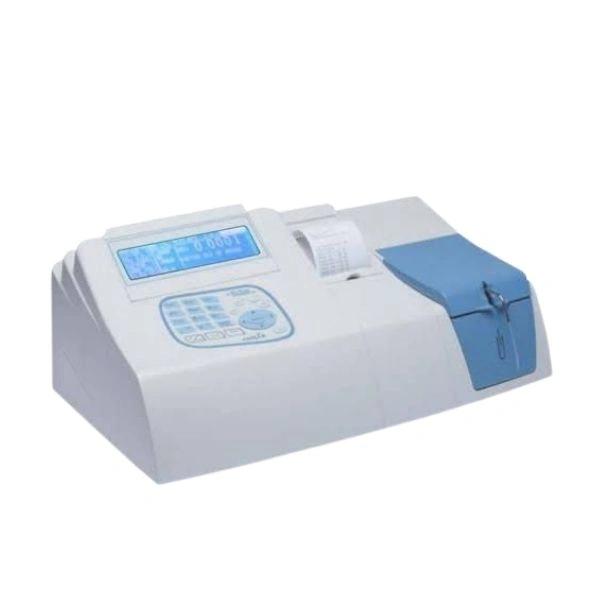

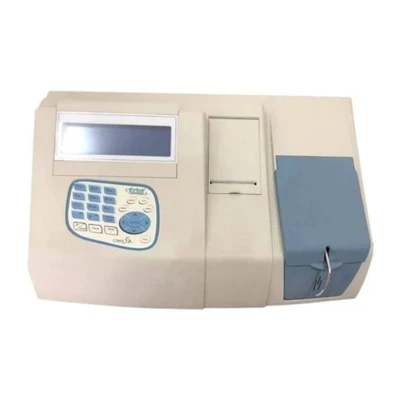

Erba Chem 5X Semi Automatic Biochemistry Analyzer

New

₹73,500₹95,00023% off

Specifications

Type: Semi Automatic Clinical Chemistry Analyzer
Throughput: Up to 240 tests/hour
Assay Methods: End-point, Fixed-time, Kinetic, Multi-standard
Measurement Principle: Absorbance Photometry, Turbidimetry
Light Source: Halogen Lamp (6V/10W)
Wavelength Range: 340–800 nm (7 filters)
Sample Positions: 30
Reagent Positions: 45 refrigerated
Sample Volume: 2–50 µL
Reagent Volume: 150–500 µL
Temperature Control: 37°C ± 0.1°C
Display: Touchscreen
Interface: USB, RS232, LIS connectivity
Dimensions: 625 mm (W) × 450 mm (D) × 424 mm (H)
Weight: Approx. 30 kg

highlights

Semi automated analyzer
Multi-point calibration with graphical display
Repeat measurement with read key
USB connectivity to external printer and PC
Monochromatic & bichromatic measurement
Built- in self diagnosis with help key facility
Dual cuvette system and inbuilt thermal printer

Use Cases :

Routine Clinical Chemistry Assays
Electrolyte Analysis
Immunoturbidimetric Assays
Diagnostic Testing in Medical Laboratories
Point-of-Care Testing (with appropriate workflow adaptation)

Key Features :

Semi Automatic random-access system
Throughput up to 240 tests/hour
Supports both single and double reagent chemistries
24-hour ready-to-use operation with STAT capability
Low reagent consumption and sample volume
Bi-directional LIS connectivity for seamless data management
Built-in quality control and calibration functions
Touchscreen operation and user-friendly software

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Erba Chem 5X Biochemistry Analyzer is a low-cost, compact, and high-performance semi-automated solution designed for routine clinical chemistry, electrolyte, and immunoturbidimetric assays. Ideal for small to medium-sized laboratories, this analyzer streamlines diagnostic processes by automating...
