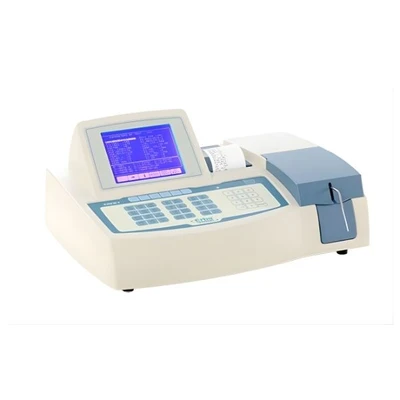

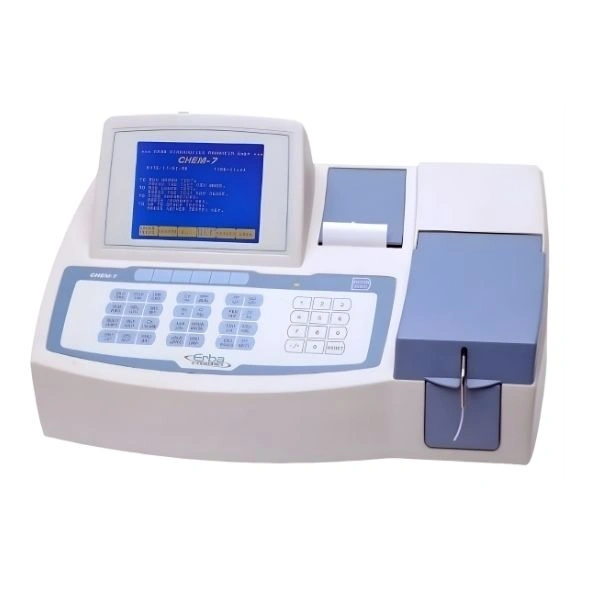

Erba Chem-7 Semi-Automatic Biochemistry Analyzer
New4.3|33 Ratings
₹1,65,000₹250,00034% off
Quantity :
1
Specifications
- Model : Erba Chem 7 Semi Automatic
- Analyzer Type : Semi-automatic clinical chemistry analyzer
- Optical System : Static photometer with silicon photodiode detectors
- Wavelength Filters : ~340, 405, 450, 505, 546, 578, 600, 670 nm
- Photometric Range : 0 to ~3.0 OD
- Light Source : Quartz halogen lamp (12 V, 20 W)
- Cuvette System : 18 µL flow cell, 10 mm square, 6 mm round tube with adapter
- Temperature Control : Peltier (20 °C–40 °C, 1 °C step)
- Analysis Modes : Linear, non-linear, rate, coagulation, absorbance
- Sample Aspiration : Peristaltic pump (min ~200 µL)
- Memory : ~200 test programs; ~1000 results
- Display : High-resolution graphic LCD
- Keyboard : 41 multifunction keys + 6 dynamic keys
- Printer : Built-in high-resolution thermal printer
- Interfaces : USB A/B for PC, printer; external keyboard port
- Power Supply : 18 V DC (70 W), input 115/230 V AC ±10%, 50/60 Hz
- Dimensions : (Approx.) ~205 mm (H) × 450 mm (W) × 300 mm (D)
- Weight : ~7 kg
- Optional Accessories : External dry block incubator (16-position)
- Application : Clinical chemistry, electrolytes, immunoturbidimetry, coagulation
- Quality Control : Three-level QC with Levey-Jennings plots
highlights
- 56 direct access keys for fast test selection and menu navigation.
- Real-time reaction curve display for monitoring assay progress.
- Triple cuvette optical system enhances versatility and throughput.
- Three-level quality control with Levy-Jennings graphs for result reliability.
- Low reagent consumption to optimize operational cost.
- USB connectivity for lab data management and external peripherals.
in the box
- Erba Chem 7 semi-automatic biochemistry analyzer main unit
- Power adapter / Universal SMPS
- User manual and documentation
- Thermal printer and cabling
- USB cable for PC/printer connection
- Starter reagent and control materials (optional, depending on seller)
Use Cases :
- Clinical chemistry laboratories
- Hospital pathology departments
- Diagnostic and research facilities
- Medium-throughput testing environments
- Labs requiring flexible assay support (chemistry, electrolytes, coagulation)
- Settings needing built-in quality control with Levey-Jennings monitoring
Key-Features
- Performs both routine and specialised clinical chemistries
- 222 open, user-defined test programs with 5000 result memory
- Multiple assay modes — 1-point linear, 2-point linear, 1-point non-linear, 2-point non-linear, rate A linear, rate A non-linear, sample blank (linear & non-linear), absorbance, and coagulation
- Multipoint calibration up to 10 standards with graphical display
- Real-time, online display of the reaction curve
- Triple cuvette system — flow cell (18 µl), 10 mm square cuvette, and round glass tube with coagulation adaptor
- Peltier temperature control from 20°C to 40°C, adjustable in 1°C steps
- Air purge between samples to minimise carryover error
- Peristaltic pump aspiration system with built-in calibration
- Dustproof static photometer across 8 wavelengths (340, 405, 450, 505, 546, 578, 630, 670 nm)
- Photometric range of 0–3.0 OD with 0.0001 Abs. resolution
- Repeat measurement available via a dedicated read key
- Low aspiration volume from 100 µl to 2997 µl, reducing reagent wastage
- Lamp-saving feature that extends component life
- Sturdy build that keeps servicing needs low
- Supports 3 replicates for both standard and sample
- Large graphical display with a 56-key direct access keyboard
- Inbuilt thermal printer
- Help key that guides staff through erroneous entries
- Five fixed calculation items built in
- Direct PC and printer connectivity via USB
- Connectivity support for an external incubator
Why Labs Choose the Erba Chem-7 Analyzer
- US FDA Registered: manufactured under strict international quality standards
- ISO 13485:2016 / 9001:2015 Certified manufacturing (Transasia Bio-Medicals Ltd.)
- Trusted Erba Chemistry Analyzer used by thousands of labs across India
Warranty
1 Year
Seller
AA Medie QuipLearn More
Product Description
If you're setting up a new diagnostic lab or need a dependable back-up analyzer for an existing one, the Erba Chem-7 is worth a serious look. It's manufactured by Erba Mannheim, part of Transasia Bio-Medicals a name most Indian lab owners already recognise, since Transasia has been supplying diagnos...
