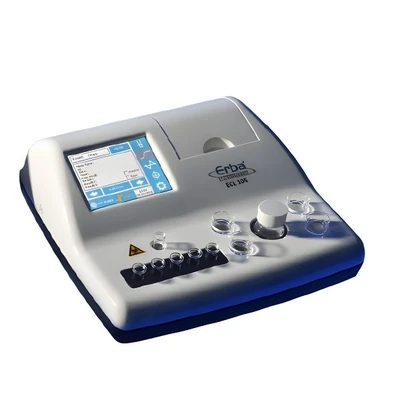

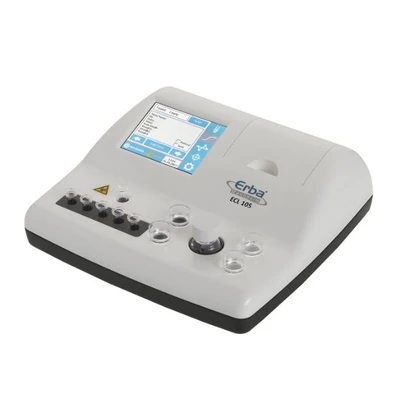

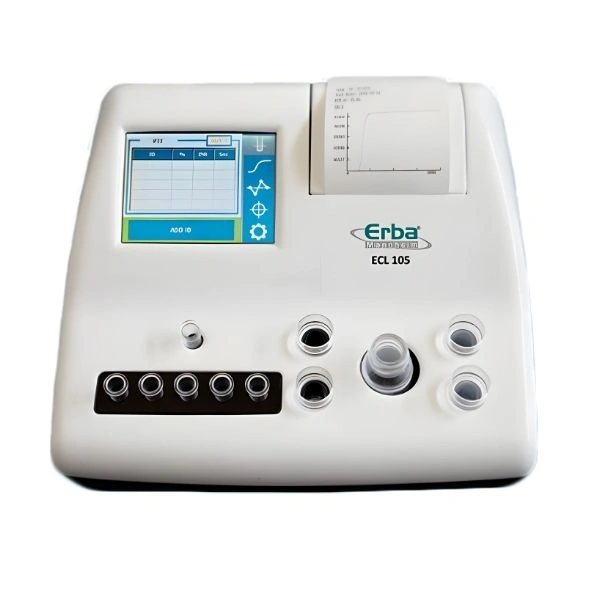

Erba ECL 105 Single Channel Semi Automatic Coagulation Analyzer

New

Specifications

Operation : Semi-automated coagulation analyzer (single channel)
Test Principles : Light scatter (~640 nm) & immuno-turbidimetry (~800 nm)
Test Menu : PT, APTT, TT, Fibrinogen, Coagulation Factors, D-Dimer, Protein S, Lupus Anticoagulans
Display : 3.5″ resistive colour touchscreen
Printer : Built-in thermal printer
Channels : Single measurement channel
QC : Automatic Levey-Jennings graphs
Connectivity : 2× USB (Type A & B), optional LIS, barcode/keyboard interface
Power Supply : 100–250 V AC, 47–63 Hz, <150 VA
Storage : Up to ~1000 patient results and QC data (varies by memory)
Dimensions : 216 × 205 × 75 mm
Weight : ~0.9–1 kg
Operating Conditions : ~17–32 °C; <80% non-condensing

highlights

Compact & Lightweight: Small benchtop form factor makes it suitable for limited lab space (~216 × 205 × 75 mm, ~1 kg).
Graphical Output: Provides clotting curves and numerical results for better interpretation.
Low Reagent Consumption: Efficient workflow reduces operational costs.
Multiple Test Capability: Beyond basic clotting times, supports advanced assays like lupus anticoagulant and factor assays.
QC & Traceability: Quality control charts and reagent expiration monitoring help improve accuracy and compliance.

in the box

ECL 105 Semi-Automatic Coagulation Analyzer unit (main instrument)
Power cable and adapter (100–250 V)
Built-in thermal printer paper roll
User manual / quick start guide
USB cable for PC/LIS connection

Use Cases :

✔️ Routine coagulation testing in clinical and diagnostic laboratories for PT, APTT, TT, and fibrinogen.
✔️ D-Dimer testing and immuno-turbidimetric assays for thrombosis and clot breakdown evaluation.
✔️ Blood bank quality control of factors such as Factor VIII and fibrinogen.
✔️ Standby instrument in large labs when automatic analyzers are busy or under maintenance.
✔️ Research facilities for coagulation assays on animal or human samples.

Key Features :

Single Channel Semi-Automated Operation: Performs one test at a time with automatic progression of assay steps.
Dual Test Principles: Clotting assays via light scatter at ~640 nm | Immuno-turbidimetric assays at ~800 nm (e.g., D-Dimer)
Large Resistive Touchscreen: 3.5″ color touch interface for intuitive operation and data entry.
Built-In Thermal Printer: Onboard printing of results and quality control (QC) charts.
Quality Control Program: Automatic Levey-Jennings graph monitors QC performance.
Connectivity: USB ports (Type A & B) for data transfer, external keyboard or barcode reader, and optional LIS connection.
Reagent & Sample Tracking: Monitors reagent, calibrator, and control expiration, with identifiers like RFID for secure use.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Erba ECL 105 is a single-channel semi-automated coagulation analyzer used for assessing blood coagulation parameters including PT (Prothrombin Time), APTT (Activated Partial Thromboplastin Time), Fibrinogen, Thrombin Time and related assays such as D-Dimer, Lupus Anticoagulant and other clotting...
