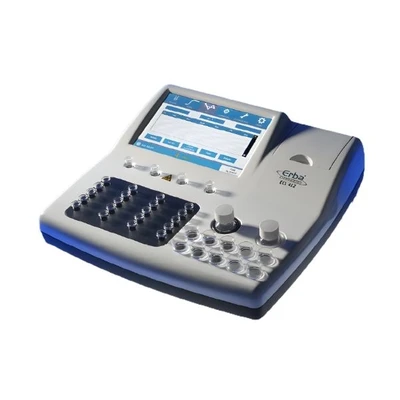

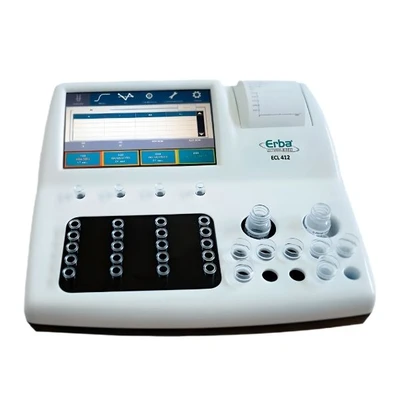

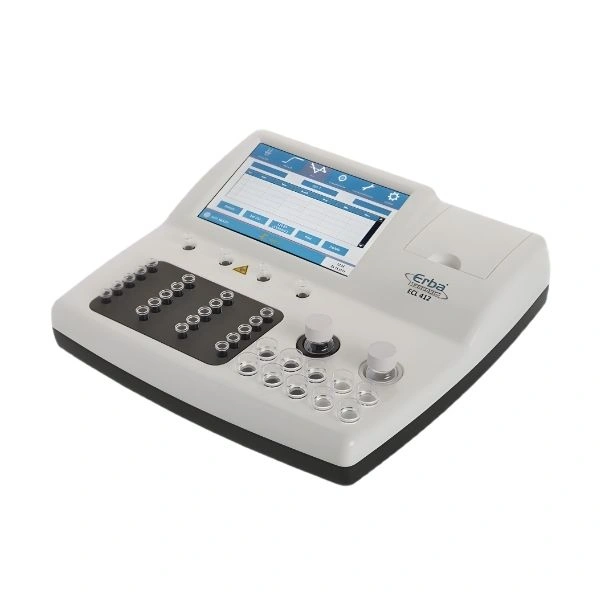

Erba ECL412 4 Channel Coagulation Analyzer

New

Specifications

Analyser Type : Semi-automated coagulation analyzer
Channels : 4 measuring channels
Assay Principles : Light scatter (640 nm), Chromogenic (405 nm), Immuno-turbidimetry (800 nm)
Reaction : Cup Incubator Positions 20 positions @ 37 °C ±0.2 °C
Reagent Positions : 12 (7 incubated, including 1 programmable stir)
Display : 7″ resistive color touch screen
Printer : Built-in thermal printer
USB Ports : 3 (2 × Type-A, 1 × Type-B)
Power Supply : 100-250 V, 47-63 Hz
Dimensions : 300 × 290 × 90 mm
Weight : ~3 kg

highlights

✔ Multi-principle testing: Light scatter, chromogenic, and immuno-turbidimetric assays on one platform.
✔ Throughput efficiency: 4 channels significantly speed up testing compared to single-channel systems.
✔ Advanced QC: Levey-Jennings QC monitoring with automatic graphing and performance tracking.
✔ User friendly: Large touch display and built-in reporting make operation easier with minimal training.

in the box

Erba ECL 412 analyzer unit
Power cable & adapters
User manuals & quick start guide
Installation/validation documents
Built-in thermal paper roll
Optional barcode reader / LIS cables (if ordered)

Use Cases :

Clinical diagnostic laboratories performing routine hemostasis panels (PT, APTT, Fibrinogen, etc.).
Blood banks for quality control of coagulation factors like factor VIII and fibrinogen.
Stand-by analyzer in larger centralized labs.
Research facilities performing coagulation testing on animal models.

Key Features :

4 measuring channels for simultaneous multi-parameter assays.
Large 7″ color resistive touch-screen for easy operation.
Built-in thermal printer for immediate report output.
RFID security to manage user access and reagent tracking.
Barcode reader & LIS connectivity options for smoother lab workflows.
Quality control system with automatic Levey-Jennings graph.
Reagent & control expiry monitoring for reliable results.
Comprehensive reagent compatibility with Erba Haemostasis reagent line.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Erba ECL 412 is a 4-channel semi-automated coagulation analyzer designed for hemostasis testing in small to medium laboratories. It performs a comprehensive panel of clotting analyses, using multiple optical methods including light scatter, chromogenic, and immuno-turbidimetric principles. With ...
