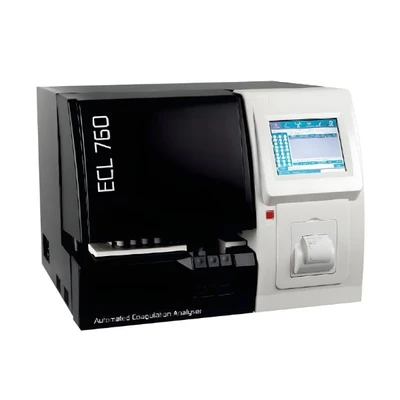

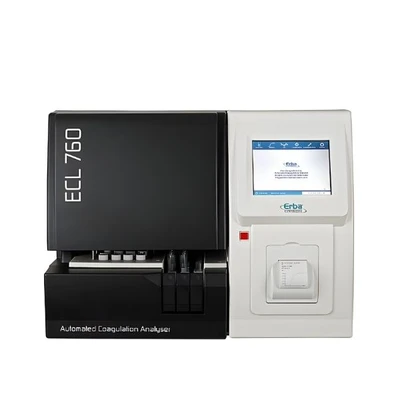

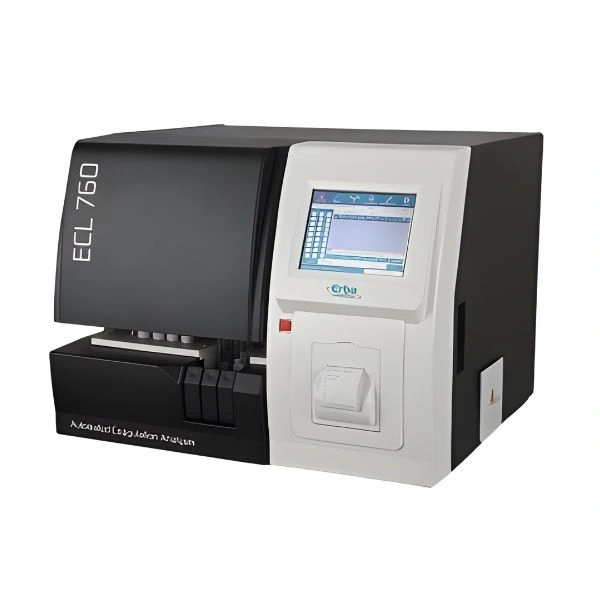

Erba ECL 760 Fully Automated Coagulation Analyzer

New

Specifications

Instrument Type : Fully automated random access coagulation analyzer
Detection Channels : Seven channels
Assay Types : Clotting (light scatter), Chromogenic, Immuno-turbidimetry
Throughput Up to : ~60 PT tests/hour; ~40 combined PT/APTT
Sample Capacity : 27 continuous loading positions
Reagent Capacity : 23 refrigerated/stir positions
Incubation Channels : 8 positions @ 37 °C ± 0.2 °C
Cuvette Holders : 72 positions
Display : Large graphical color touch screen
Printer : Built-in thermal printer
Power Supply : 100-240 V, 50/60 Hz
Dimensions (L×W×H) : ~650 × 580 × 510 mm
Weight : ~53 kg
Interfaces : USB, bi-directional LIS

highlights

True random access — load STAT and routine samples concurrently without queuing.
Comprehensive assay capability — supports PT, APTT, TT, fibrinogen, factor assays, D-dimer, ATIII, Protein C/S and lupus anticoagulant.
Large onboard capacity — dozens of reagent positions and multiple sample cuvettes support long run times.
Robust QC & calibration — automatic QC reporting and multi-point calibration options ensure reliable performance.
Walk-away automation — minimal operator intervention with automatic reagent monitoring.

in the box

Erba ECL 760 analyzer unit
Power cable & adapters
User Manual & Quick Start Guide
Built-in thermal printer with paper roll
Barcode scanner (if included / ordered)
Installation & validation documentation

Use Cases :

Clinical diagnostic laboratories performing comprehensive coagulation testing.
Hospital pathology departments needing both routine and specialty assays on the same platform.
Blood banks for quality assessment of clotting factors.
Research institutions working on thrombosis/bleeding disorder studies.
High-volume labs maximizing walk-away automation and fast turnaround times.

Key Features :

✅ Fully automated random access operation with continuous sample loading for high workflow flexibility.
✅ Seven detection channels for simultaneous multi-parameter assays.
✅ Large color touch screen + optional keyboard/mouse support for intuitive user interaction.
✅ Bi-directional LIS connectivity & barcode sample ID for seamless lab integration.
✅ Built-in thermal printer for quick hard-copy reports.
✅ Advanced quality control with up to 12 QC levels and Levey-Jennings charting.
✅ Automatic reagent level monitoring and onboard reagent cooling to improve reliability.
✅ STAT priority capability for urgent samples.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Erba ECL 760 is a fully automated, random-access coagulation analyzer designed to support complete hemostasis testing in mid-to-high workload laboratory environments. It integrates advanced optical detection with a large onboard capacity for samples and reagents, enabling both routine and specia...
