Shipping time and rates
Shipping about 5-7 days

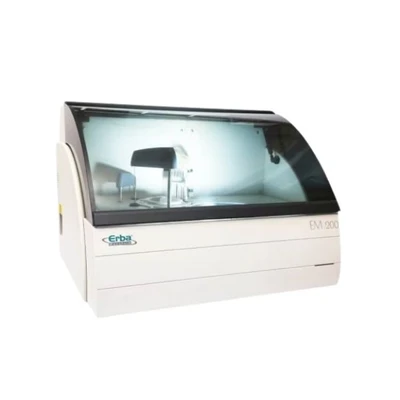

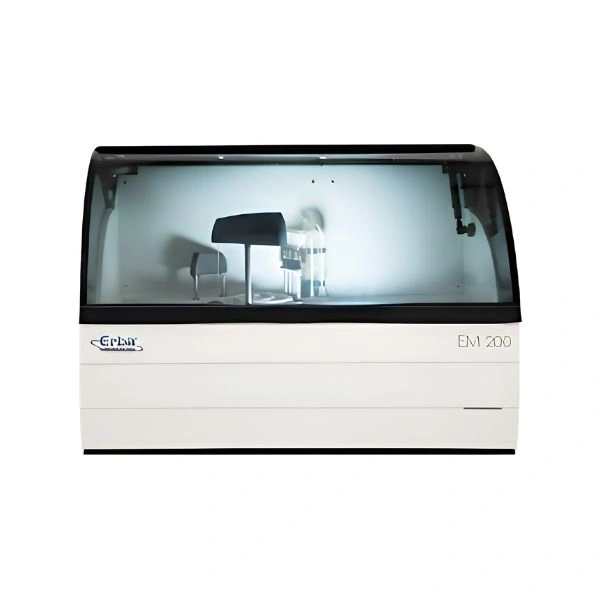

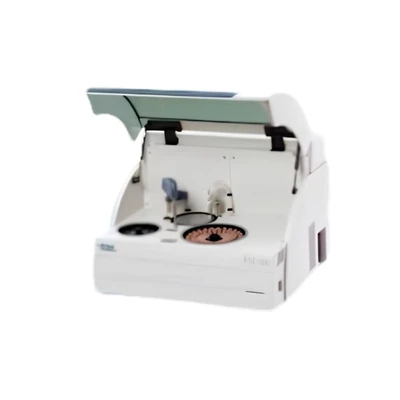

Erba EM200 Full-Automated Biochemistry Analyzer
New0.0|0 Ratings
₹5,60,000₹650,00014% off
Quantity :
1
Specifications
- Brand : Erba Mannheim / Transasia
- Model : EM 200
- Product Type : Fully Automated Clinical Chemistry Analyzer
- Automation : Fully automatic
- System Type : Discrete, random-access, patient-prioritized analyzer
- Throughput : 200 photometric tests/hour
- Throughput with ISE : Up to 400 tests/hour; optional
- Sample Types : Serum, plasma, urine, CSF and whole blood, subject to assay compatibility
- Sample Positions : 39 positions
- Reagent Positions : 50 cooled positions
- Reaction Tray : 45 permanent hard-glass cuvettes
- Sample Volume : 2–70 µL, adjustable
- Reagent Volume : R1: 50–300 µL; R2: 10–200 µL, depending on configuration and method
- Reaction / Reading Volume : Approximately 180 µL
- Photometer Type : Static photometer
- Optical Wavelengths : 340, 405, 505, 546, 578, 600, 660 and 700 nm
- Light Source : Halogen lamp
- Detector : Silicon photodiode
- Absorbance Range : 0.0–3.0 OD
- Reaction : Mixing Variable-speed stirrer
- Cuvette Washing : Six-stage washing and two-stage drying in the published technical specification
- Calibration : Linear, nonlinear and multipoint; additional calculation methods supported
- Quality Control : QC plots, QC rules and laboratory mean provisions
- Barcode Reader : Availability depends on configuration; verify with supplier
- Software Windows-based
- Connectivity : USB and host/LIS connectivity, subject to configuration
- Water Consumption : Less than 7 L in the manufacturer's published specification; verify operating conditions
- Power Supply : AC 220 V ±10%, 50 Hz; published documentation also lists 110 V / 60 Hz
- Power Consumption : 600 VA
- Dimensions (W × D × H) : Approx. 810 × 800 × 600 mm
- Weight : Approx. 120 kg
highlights
- High productivity for growing and mid-sized laboratories.
- Compact bench-top design with an approximate footprint of 810 × 800 mm.
- On-board reagent cooling for routine laboratory operations.
- Low reaction volume of approximately 180 µL.
- Eight standard photometric wavelengths for biochemical analysis.
- Automatic sample prioritization for urgent testing.
- Calibration support for linear, nonlinear and multipoint methods.
- Unlimited result storage as specified in the manufacturer's technical documentation.
- Optional ISE capability for electrolyte testing.
in the box
- Erba EM 200 fully automated biochemistry analyzer
- Computer system with compatible operating software
- Monitor and keyboard/mouse, as applicable
- Power cable and required connectivity accessories
- User manual and operating documentation
- Installation and commissioning support, as contracted
- Initial reagents, calibrators and quality-control materials, if included in the quotation
- Printer, if included in the selected configuration
- ISE module and accessories, if separately ordered
Use Cases :
- Liver Function Tests (LFT) - SGOT/AST, SGPT/ALT, ALP, bilirubin, albumin, total protein
- Kidney Function Tests (KFT) - Urea, creatinine, uric acid
- Lipid Profile - Total cholesterol, triglycerides, HDL, LDL
- Diabetes Testing - Glucose and compatible HbA1c assays
- Enzyme Analysis - LDH, CK, CK-MB, GGT, amylase, lipase
- Electrolyte Analysis - Sodium, potassium, chloride and lithium with optional ISE
- Inflammatory Markers - CRP, ASO and rheumatoid factor, using compatible assays
- Specialized Biochemistry - Iron, ferritin, phosphorus and other compatible assays
Key Features :
- Fully automated operation: Automates routine clinical chemistry testing.
- High throughput: Up to 200 photometric tests/hour; up to 400 tests/hour with optional ISE.
- Random-access testing: Supports routine samples and priority STAT testing.
- Sample capacity: 39 positions for samples, blanks, controls, calibrators and STAT samples.
- Reagent storage: 50 on-board cooled reagent positions.
- Photometric system: Static photometer with eight standard wavelengths.
- Low sample consumption: Adjustable sample volume of 2–70 µL for biochemistry.
- Reusable reaction cuvettes: 45 permanent hard-glass cuvettes.
- Automated washing: Multi-stage cuvette cleaning and drying system.
- Quality control: QC plots, QC rules and calibration options.
- Connectivity: Computer interface and laboratory information system (LIS) connectivity, depending on configuration.
- Automated repeat testing: Auto-rerun and dilution capabilities, depending on configuration.
Warranty
1 Year
Seller
AA MEDIE QUIPLearn More
Product Description
The Erba EM 200 is a fully automated, discrete, random-access clinical chemistry analyzer developed for small and medium-sized diagnostic laboratories. It automates sample and reagent dispensing, reaction mixing, photometric measurement and result processing to support efficient laboratory workflows...
