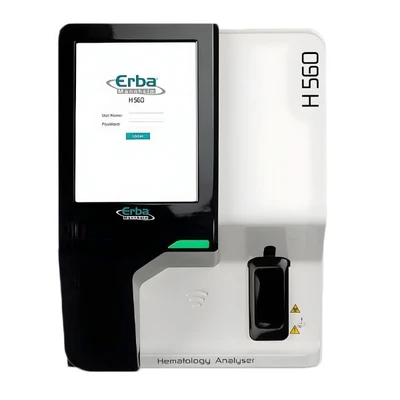

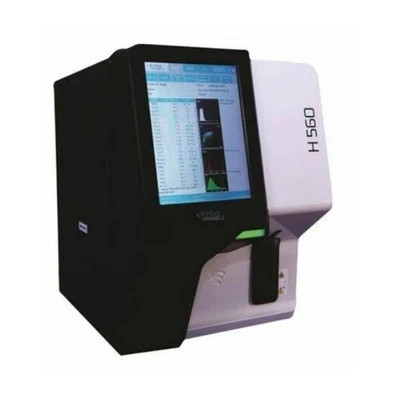

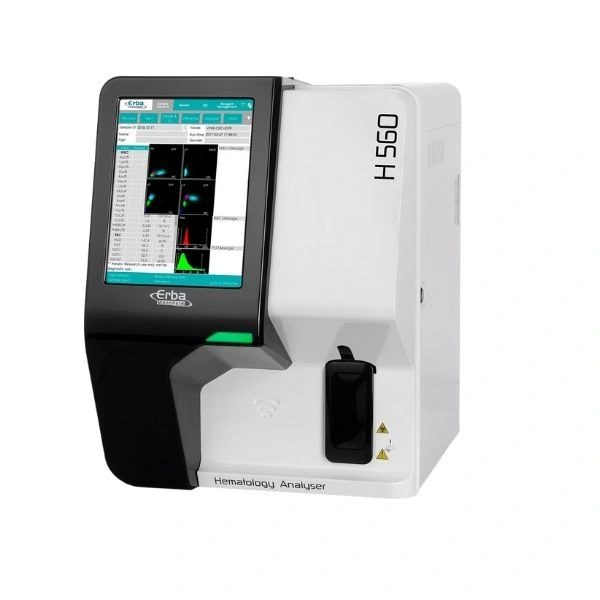

Erba H560 Fully Automated 5 Part Hematology Analyzer

New

₹4,75,000₹560,00015% off

Specifications

Analyzer Type : Fully automated 5-part hematology analyzer
Measurement Technologies : Laser flow cytometry (WBC differential); Electrical impedance (RBC/PLT); Colorimetry (Hb
Reportable Parameters : ~32-36 parameters including WBC, RBC, HGB, HCT, PLT, P-LCR, P-LCC, NRBC, CWBC, indices like NLR, Mentzer Index
Throughput : Up to 60 tests/hour
Sample Volume : Whole blood: 15 µL; CBC only: ~11 µL; Capillary/Predilute: 20 µL
Display : 10.4″ LCD touchscreen
Data Storage : ~50,000–100,000 results with histograms & scatterplots
Graphics : 3 Histograms (WBC/RBC/PLT), 4 scatterplots (DIFF×3, BASO)
Modes : Whole blood, Predilute, Capillary
Dimensions : ~364 × 498 × 431 mm
Weight : ~26.5 kg
Interfaces : 4 USB + 1 LAN Port
Power : AC 100-240 V, 50/60 Hz
Quality Control : L-J graph, X-Bar analysis

highlights

✔ Advanced WBC classification: Five-part differential reduces need for manual slide reviews and speeds diagnostic workflows.
✔ Low blood volume requirement: Suitable for pediatric and routine adult samples.
✔ Efficient data management: Storage of up to tens of thousands of results with histograms and scatterplots.
✔ Cost-effective operation: Uses only three main reagents and automated dilution to lower running costs.
✔ User-friendly UI: Large touchscreen and simple interface reduce operator training time.

in the box

Erba H560 analyzer unit
Power cable and adapters
User manual and quick start guide
Reagent set (Erba Diluent, Erba Lyse 1 & 2, Elite H Clean)
Calibrators & controls (Tri-level QC vials)
Touchscreen LCD display built-in
Waste container and sample racks

Use Cases :

Clinical diagnostic laboratories performing routine CBC and differential testing.
Hospital hematology departments for inpatient and outpatient testing.
Blood banks and transfusion services to assess donor and patient blood profiles.
Research facilities requiring reliable blood cell quantification for studies.
Pathology labs upgrading from 3-part analyzers to full 5-part differential capability.

Key Features :

5-Part WBC differential using tri-angle laser flow cytometry for precise white cell classification.
Electrical impedance method for accurate RBC and platelet counts.
High throughput: up to 60 samples per hour.
Low sample volume: only 15 μL whole blood required per test.
Large 10.4″ color LCD touchscreen for intuitive operation.
Three counting modes: Whole blood, capillary, and pre-dilute.
Comprehensive parameters: Includes RBC, WBC, PLT, and advanced indices like P-LCR and P-LCC.
Automatic Diluent Dispense Mode (ADDM) and anti-clog technology to reduce pre-analytical issues.
Bidirectional LIS connectivity for seamless integration with lab information systems (LIS).

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Erba H560 is a fully automated 5-part differential hematology analyzer designed for mid-size clinical laboratories that require accurate, high-quality complete blood counts with detailed white blood cell (WBC) differentials. It combines laser flow cytometry and electrical impedance technologies ...
