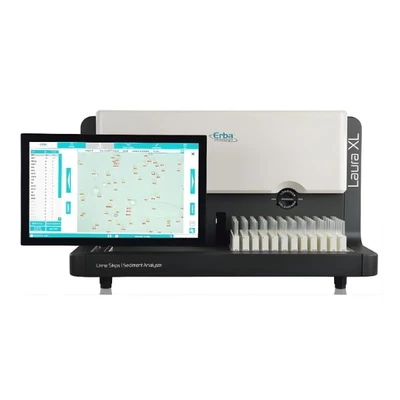

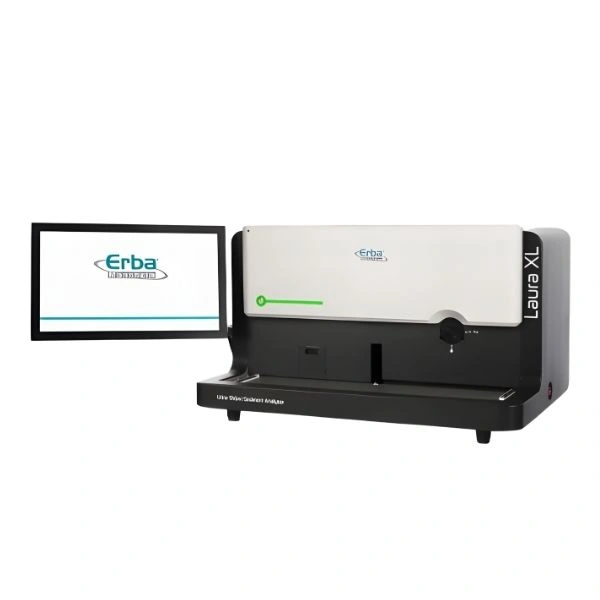

Erba LAURA XL Fully Automated Urine Analyzer

New

Specifications

Operation : Fully automated hybrid analyzer (chemistry + sediment)
Throughput : Up to 160 tests/hour (chemistry); 125 tests/hour (sediment/hybrid)
Chemistry Parameters : e.g., SG, LEU, NIT, pH, PRO, GLU, KET, UBG, BIL, BLD, Color, Clarity
Sediment Analysis : Digital microscopy classification (e.g., RBC, WBC, casts, crystals)
Sample Volume : Primary tube 2 mL; micro tube 0.9 mL
Memory : >500,000 results stored
Interface : ASTM (RS323/LAN), USB, LIS connectivity
Supported Barcodes : Code 128, 39, 93, Codabar, Interleaved 2/5
Dimensions Approx. : 943 × 675 × 563 mm
Weight : ~70 kg
Operating Conditions : 16–30 °C; 5–85% RH (non-condensing)

highlights

Walk-Away Functionality: Automates the full analytical process for reliable, reproducible results.
Intuitive User Interface: Easy operation and maintenance with a modern graphical display.
Reusable Cuvettes: Reduces consumable costs and waste compared to single-use systems.
Small Footprint: Compact benchtop design fits efficiently into laboratory workspaces.
Detailed Sediment Imaging: Multiple high-resolution digital images per sample enhance interpretability.

in the box

Laura XL Urine Analyzer unit
Power cable and adapters
User manual / quick guide
Calibration/maintenance accessories

Use Cases :

✔️ Routine Urinalysis in hospitals, diagnostic centres, and clinical labs.
✔️ Screening for Renal & Metabolic Disorders — detects markers of kidney dysfunction, infection, diabetes, etc.
✔️ High-Volume Laboratory Workflows — labs requiring rapid sample throughput with minimal operator input.
✔️ Pediatric Urinalysis — capable of analyzing small volume samples (from ~0.9 mL).
✔️ Automated Sediment Reporting — reduces reliance on manual microscopy with digital image capture.

Key Features :

Fully Automated Processing: Walk-away operation with homogenization, strip dispensing, sedimentation, and result calculation all handled automatically.
Hybrid Analytical Modes: Three modes — chemistry only, sediment only, or combined hybrid — support flexible lab workflows.
High Throughput: Up to 160 tests/hour in chemistry mode and 125 tests/hour in sediment/hybrid mode.
Dual Technology: Reflective photometry for chemical strip analysis and digital microscopy for sediment evaluation.
Comprehensive Parameters: Measures common chemical markers (e.g., glucose, protein, leukocytes) and classifies multiple sediment types.
Active Humidity Control: Maintains strip stability for accurate readings.
Large Memory & Connectivity: Stores more than 500,000 results and supports LIS/USB interfaces for streamlined data management.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Erba Laura XL Urine Analyzer is a fully automated hybrid urinalysis system that combines urine strip analysis with digital microscopy to deliver comprehensive chemical and sediment examination of urine samples. Designed for medium to large laboratories and high-volume workflows, the Laura XL aut...
