Highlights
- One of India’s largest-selling ELISA microplate readers
- Compact footprint suitable for small and medium labs
- Supports multiple calculation algorithms for advanced analysis
- Compatible with various 96-well plate geometries (Flat, U, V bottom)
- Reduces manual calculations and documentation workload
- Enables quick and reproducible ELISA result processing

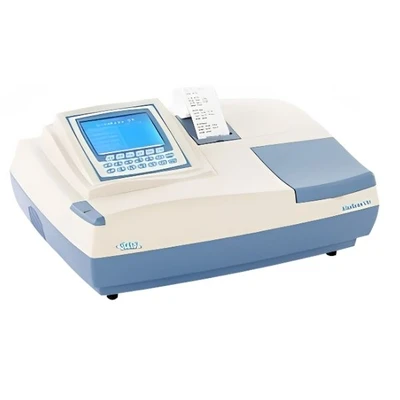

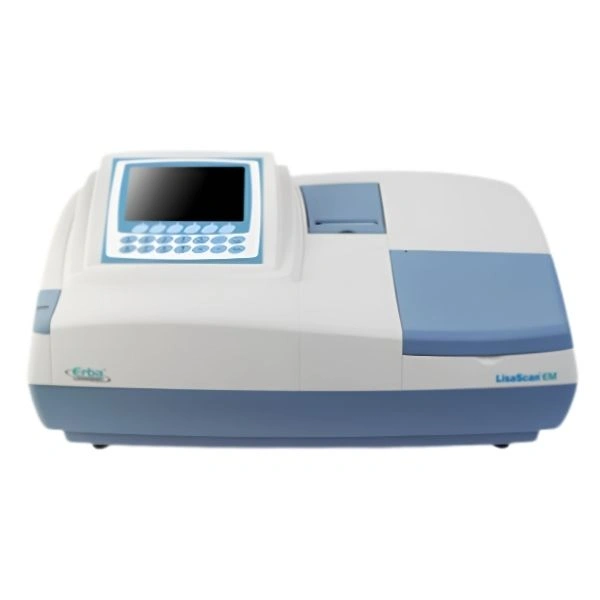

Erba Lisa Scan EM Elisha Microplate Reader
New0.0
Quantity :
1
Specifications
- System Type : Open System
- Plate Type : 96-well plates
- Well Types : Flat, U, V bottom
- Optical System : 8-channel photometric
- Light Source : Tungsten Halogen Lamp
- Wavelength Range : 400–750 nm
- Standard Filters : 405, 450, 492, 630 nm
- Optional Filters : 578, 700 nm
- Measurement Range : 0.0 – 4.0 OD
- Photometric Resolution : 0.001 OD
- Photometric Accuracy : <1% at 2.5 OD
- Operating Modes : Absorbance, Quantitative, Qualitative, Semi-Quantitative, Kinetic
- Measurement Modes : Continuous / Step
- Reading Time : 8 sec (single wavelength)
- Test Programs : 100
- Display : 320 × 240 LCD
- Printer : Built-in Thermal Printer
- Connectivity : USB
- Operating Temperature : 20°C – 40°C
- Power Supply : 115/230V AC via SMPS
- Dimensions : 502 × 369 × 216 mm
- Weight : 7 kg
highlights
- One of India’s largest-selling ELISA microplate readers
- Compact footprint suitable for small and medium labs
- Supports multiple calculation algorithms for advanced analysis
- Compatible with various 96-well plate geometries (Flat, U, V bottom)
- Reduces manual calculations and documentation workload
- Enables quick and reproducible ELISA result processing
in the box
- 1 × Erba Lisa Scan EM Main Unit
- Power Adapter / SMPS
- Built-in Thermal Printer
- User Manual
- Interface / Connection Accessories
- Optional Eli-LIMS Software (depending on purchase package)
Use Cases :
- Clinical Diagnostics – Infectious disease screening (HIV, Hepatitis, Dengue, etc.)
- Blood Banking – Donor screening and serological testing
- Research Laboratories – Biomarker and immunoassay studies
- Pharmaceutical Testing – Assay validation and QC
- Hospital Laboratories – Routine ELISA-based diagnostics
Key Features :
- 8-channel optical system for fast and accurate plate reading
- Reading time: only 8 seconds for 96 wells (single wavelength)
- Wavelength range: 400–750 nm
- Supports Monochromatic, Bi-chromatic, and Multi-chromatic reading
- 100 user-programmable test slots
- Built-in shaker with adjustable speed settings (Low / Medium / Fast)
- Auto self-check at startup for optical precision and system reliability
- Built-in thermal printer for immediate result printing
- Compatible with Eli-LIMS software for data management and report generation
- Stores up to 7000 sample reports
- High-resolution LCD display with membrane keypad
Warranty
Product Description
The Erba Lisa Scan EM is an economical, compact, and versatile 8-channel automated ELISA microplate reader designed for a wide range of ELISA testing applications. It measures absorbance, calculates results, and interprets ELISA assay data efficiently. The system is suitable for clinical laboratorie...
