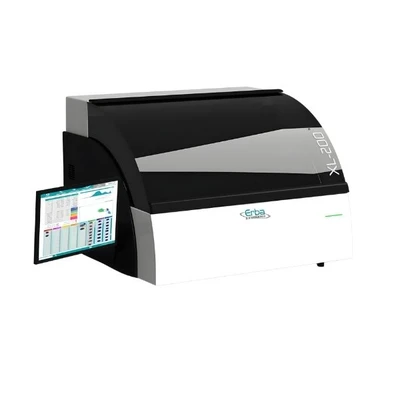

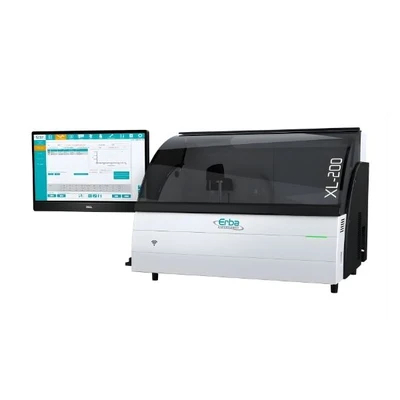

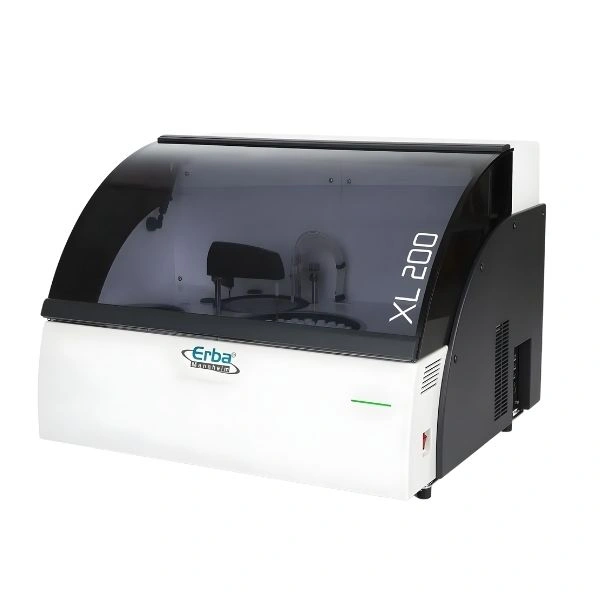

Erba XL200 Biochemical Analyzer

New

Specifications

System Type : Fully automated random access clinical chemistry/biochemistry analyzer
Throughput : ~200 photometric tests/hour; ~400 tests/hour with ISE (optional)
Sample Types : Serum, plasma, whole blood, urine, CSF, other biological fluids
Sample Volume : Adjustable 2 – 70 µL
Reagent Positions : 50 (cooled with on-board refrigeration)
Sample Positions : 39 (including blanks, controls, calibrators)
Reaction Volume : Minimum ~180 µL
Cuvettes : 45 reusable hard glass cuvettes, 5 mm optical path clinicalc
Mixing System : Independent stirrers with selectable speeds
Optical System : Halogen lamp with multiple wavelengths (typical range ~340–700 nm)
QC Features : Levey-Jennings, Westgard rules, Twin Plot
Barcode Reader : Built-in for sample/reagent tracking
Connectivity : RS-232, USB, LIS/PC integration
Dimensions : Approx. 810 × 700 × 600 mm
Weight : ~120 kg
Power : ~220 V AC, 50 Hz

highlights

Compact Benchtop Design: Small footprint yet powerful performance for small to mid-sized labs.
Reusable Hard Glass Cuvettes: Reduces operational costs and improves durability compared with disposable types.
Auto-Dilution & Auto-Rerun Features: Minimizes manual intervention and improves workflow efficiency.
Clot Detection & STAT Flexibility: Enhances sample integrity and workflow responsiveness.
Advanced QC & Statistical Tools: Built-in QC features support stringent quality requirements.

in the box

Erba XL 200 Biochemistry Analyzer unit (main analyzer)
Power cable and adapters
User manual / quick start guide
Installation components (tubing, waste containers)
Barcode scanner (optional or built-in)

Use Cases :

✔️ Routine Clinical Chemistry Testing (e.g., glucose, lipids, liver and kidney function panels).
✔️ Electrolyte Testing using the optional ISE module — essential for critical care, metabolic and renal evaluations.
✔️ High-Volume Laboratory Workflows in hospital, diagnostic, and reference labs needing reliable throughput.
✔️ Emergency and STAT Testing due to random access capability and priority sample handling.
✔️ Special Chemistry Panels when integrated with reflex or customized test profiling.

Key Features :

Automated Random Access Operation: Enables continuous sample loading and STAT priority testing without interrupting workflow.
High Throughput: Up to 200 photometric tests/hour, and up to 400 tests/hour when equipped with the optional ISE module.
Extensive Reagent & Sample Capacity: 50 cooled reagent positions and 39 sample positions accommodate large batches and priority samples.
Robust Quality Control: Multi-level QC with Levey-Jennings and Twin Plot tools helps monitor precision and accuracy.
On-Board Barcode Reader: Automates identification for both samples and reagents.
Advanced Mixing & Dispensing: Independent stirrers and programmable liquid-level sensing ensure precise interactions.
Touchscreen GUI & Connectivity: Intuitive interface with LIS/PC integration enhances usability and data management.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Erba XL 200 Biochemistry Analyzer is a fully automated, random access clinical chemistry instrument designed to support comprehensive biochemical testing in medical laboratories. It delivers high throughput and versatile testing capabilities, combining photometric assays and optional ion-selecti...
