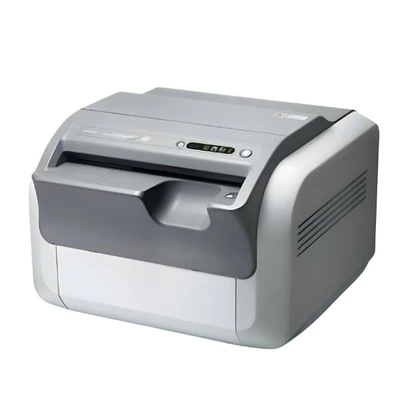

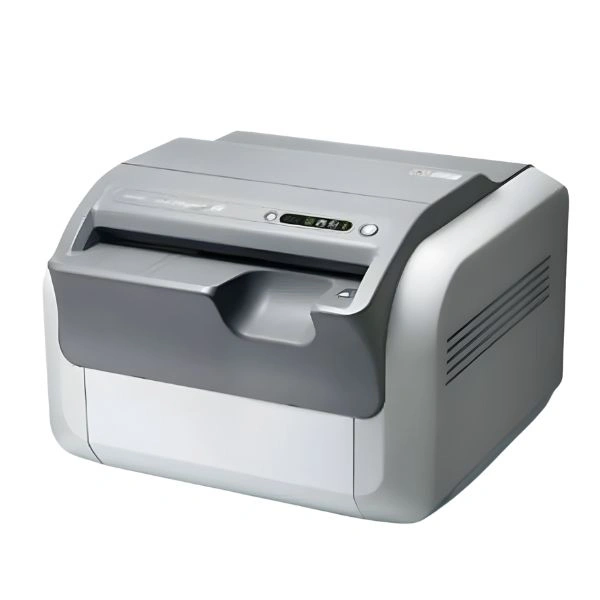

Fujifilm FCR Prima T CR Machine

New

0.0|0 Ratings

Quantity :

Specifications

Model : FCR PRIMA T (CR-IR 392)
Type : Computed Radiography (CR) Tabletop Reader
Processing Capacity : Up to 57 IPs/hr (Up to 67 IPs/hr with upgrade kit)
Time Required for IP Feed/Load : Min. 64 sec. (Min. 54 sec. in high-speed mode)
Time to Start on Display : Min. 33 sec.
Time to Print : Approx. 165 sec. (155 sec. in high-speed mode)
Reading Resolution : 10 pixels/mm, 5 pixels/mm
Input Channels : 1
Number of Stacker : 1
Network : 10 Base-T / 100 Base-TX
Dimensions (W × D × H) : 560 × 540 × 392 mm
Weight : 39 kg (86 lbs.)
Power Supply : Single phase 50–60 Hz, AC 120–240V ±10%, 1.9A max
Operating Temperature : 15°C to 30°C
Operating Humidity : 15% to 80% RH (No condensation)
Atmospheric Pressure : 750–1060 hPa
Compatible Imaging Plates : ST-VI
Supported Plate Sizes : 35×43 cm, 35×35 cm, 24×30 cm, 18×24 cm, 15×30 cm, 10×12”, 8×10”
Compatible Dry Imagers : DRYPIX PRIMA / 2000 / 4000 / 7000 / Plus

highlights

Lightweight and portable compared to larger CR systems
Easy integration into existing X-ray setups
Reliable and consistent image quality
Reduces patient waiting time
Enhances workflow efficiency
Supports multiple dry imagers like DRYPIX PRIMA, DRYPIX 2000, DRYPIX 4000, and DRYPIX 7000

in the box

FCR PRIMA T Image Reader (Model: CR-IR 392)
AC Power Cord
IP Cassette Type CC
FCR PRIMA Console / FCRView / CR Console (depending on configuration)
User documentation/manual

Use Cases :

General radiography in hospitals and clinics
Orthopedic imaging
Chest X-rays
Veterinary imaging
Chiropractic clinics
Private diagnostic centers
Low- to medium-volume X-ray departments

Key Features :

Compact Tabletop Design – Small footprint for easy installation on desks or shelves.
Fast Processing Speed – Processes up to 57 IPs/hour (upgradable to 67 IPs/hour with upgrade kit in standard model).
Quick Image Preview – First image displayed in as little as 33 seconds.
High Image Quality – Uses Fujifilm’s proprietary Image Intelligence™ processing.
Multiple Image Processing Technologies - MFP / FNC / GPR
All-in-One Workstation Compatibility – Works with FCR PRIMA Console and Console Advance.
No Darkroom Needed – Fully digital workflow.
Supports Multiple Cassette Sizes for various examinations.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Fujifilm FCR Prima T is a compact, tabletop Computed Radiography (CR) system designed for clinics, diagnostic centers, and hospitals seeking high-quality digital X-ray imaging in a space-saving format. It offers speedy processing, stable image quality, and easy operation, making it ideal for low...
