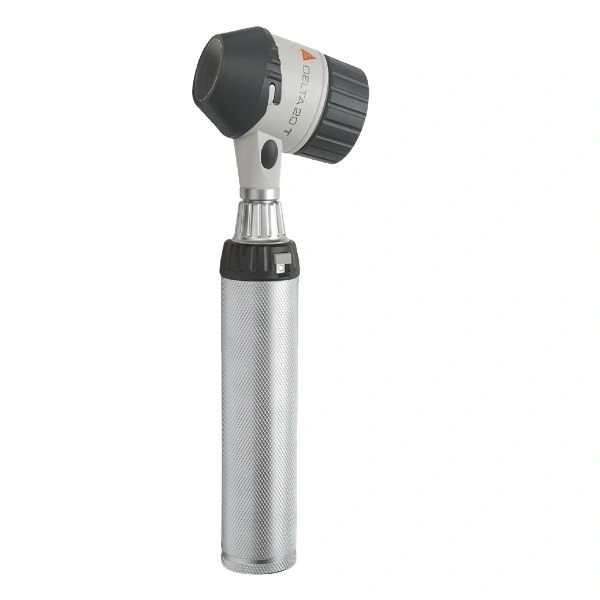

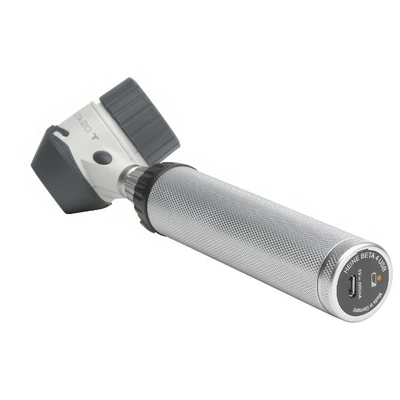

Heine Delta 20T Dermatoscope with Beta4 USB Rechargeable Handle

New

0.0|0 Ratings

Quantity :

Specifications

Optical System : Achromatic lens system (4 lenses, 2 achromats)
Magnification : 10x – 16x
Illumination : HEINE LED HQ (4 LEDs)
Illumination Modes : Polarized & Non-polarized (Toggle function)
Diopter Adjustment : ±6 dpt
Field of View : Ø 23 mm (standard), Ø 8 mm (small plate)
Working Distance : ~20 mm
Color Temperature : ~5000 K ± 1000 K
CRI : ≥ 80
Power Supply : USB rechargeable handle / battery handle
Input Voltage : 3.0 – 3.7 V
Operating Time : Up to ~5.5 hours (Li-ion)
Dimensions : 79 × 56 × 42 m
Weight : ~106–110 g (without handle)
Protection Class : IP20

highlights

Dual-mode illumination without changing contact plates
High magnification (10x–16x) for detailed visualization
LED HQ standard ensuring consistent light quality
Portable with USB rechargeable handle
Enables advanced diagnostics like “blink sign” detection

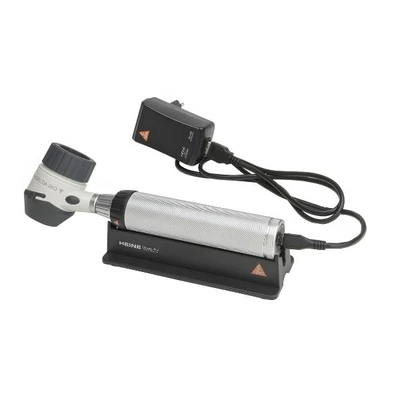

in the box

HEINE DELTA 20T Dermatoscope head
Contact plate with scale (Ø 23 mm)
BETA 4 USB rechargeable handle
Rechargeable Li-ion battery (3.5 V)
USB cable and plug-in power supply (E4-USB)

Use Cases :

Dermatology clinics for skin lesion evaluation
Detection of melanoma and pigmented lesions
Examination of vascular and non-pigmented skin structures
Cosmetic and aesthetic dermatology assessments
Clinical documentation and digital dermoscopy imaging

Key Features :

High-quality achromatic optical system for sharp, distortion-free images
Toggle function for instant switching between polarized & non-polarized modes
Glare-free and reflection-free viewing, even without immersion fluids
LED HQ illumination with excellent color rendering and longevity
One-hand focusing with ±6 diopter adjustment
Compatible with digital documentation systems (SLR cameras)
Continuous brightness control (rheostat)

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The HEINE DELTA 20T Dermatoscope is a premium diagnostic instrument designed for detailed skin examination, offering crystal-clear, high-resolution imaging through its advanced achromatic optical system. It features a unique Toggle function that allows seamless switching between polarized and non-po...
