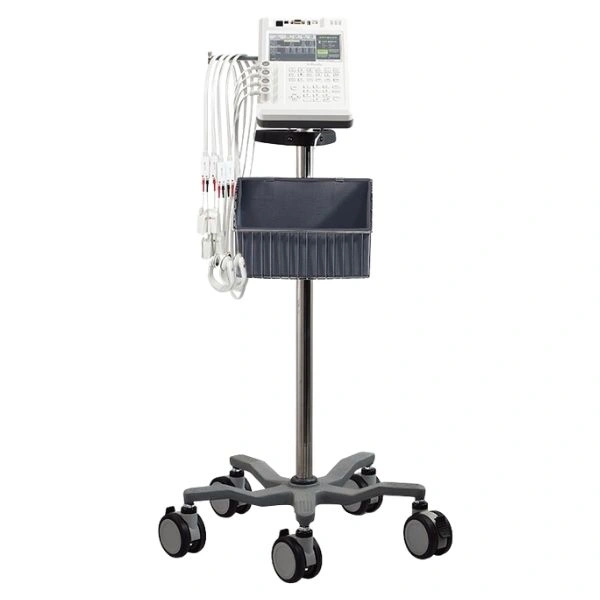

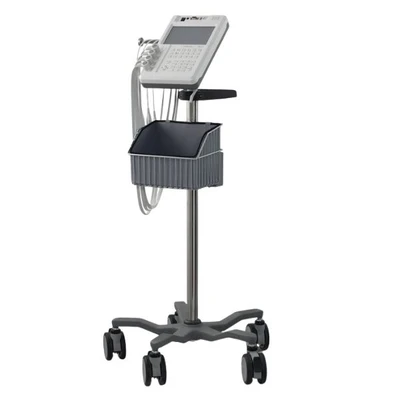

InBody S10 Body Composition Analyzer

New

4.1|34 Ratings

Quantity :

Specifications

Product Type : Medical Body Water Analyzer
Model : InBody S10
Measurement Method : Direct Segmental Multi-Frequency BIA (DSM-BIA)
Frequencies : 1, 5, 50, 250, 500, 1000 kHz
Measurement Segments : 5 (Right Arm, Left Arm, Trunk, Right Leg, Left Leg)
Test Duration : ~60 sec (Medical Mode), ~100 sec (Research Mode)
Weight Range : 10 – 250 kg
Height Range : 110 – 220 cm
Age Range : 6 – 99 years
Measurement Positions : Supine, Seated, Standing
Key Outputs : TBW, ICW, ECW, ECW/TBW, Phase Angle, Lean Mass
Electrodes : Adhesive / attachable electrodes
Portability : Lightweight (~2 kg) with cart option
Dimensions : Approx. 202 × 322 × 53 mm
Power Supply : AC adapter / optional battery
Display : External interface (PC/software integration)
Clinical Use : ICU, Dialysis, Rehabilitation
Certification : Medical device (Class II, region-dependent)

highlights

Designed specifically for clinical and hospital environments
Enables bedside testing without requiring patient movement
Provides accurate hydration and fluid distribution analysis
Supports early detection of edema and fluid imbalance
Offers phase angle insights for nutritional and cellular health
Highly portable and flexible for multi-department use

in the box

1 × InBody S10 Main Unit
1 × Electrode Set (adhesive electrodes)
1 × Power Adapter
1 × Carrying Cart / Portable Setup (model-dependent)
1 × User Manual
Optional Battery Pack (depending on configuration) (bundle-dependent as per official distribution)

Use Cases :

Dialysis centers (fluid balance monitoring)
ICU and critical care patient assessment
Nephrology and cardiology departments
Cancer and malnutrition monitoring
Geriatric and rehabilitation care
Bedridden or amputee patient evaluation

Key Features :

Supine (lying-down) measurement capability for immobile patients
DSM-BIA technology without empirical estimations (no age/gender correction)
6 frequencies (1, 5, 50, 250, 500, 1000 kHz) for high accuracy
Segmental analysis across 5 body parts (arms, legs, trunk)
Measures TBW, ICW, ECW, ECW/TBW ratio
Phase angle analysis for cellular health assessment
Portable design with optional cart and battery pack
Attachable electrodes for flexible patient positioning
Fast test time (~60–100 seconds)

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The InBody S10 Body Composition Analyzer is a medical-grade body water analyzer specifically designed for use in hospitals, dialysis units, ICUs, and rehabilitation settings. It utilizes Direct Segmental Multi-Frequency Bioelectrical Impedance Analysis (DSM-BIA) to measure body composition with high...
