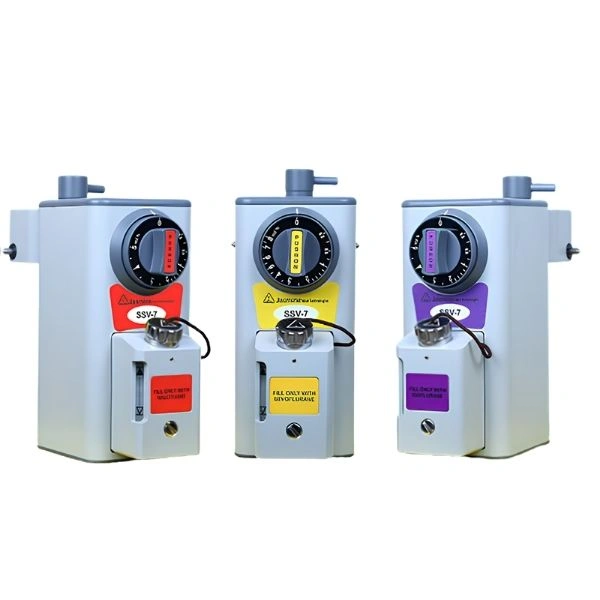

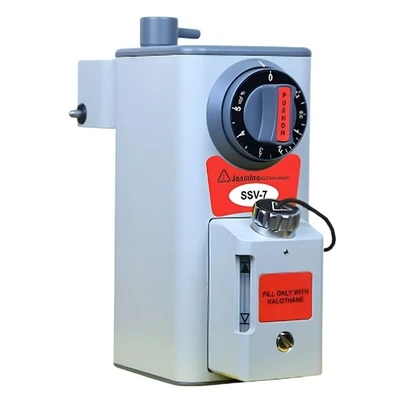

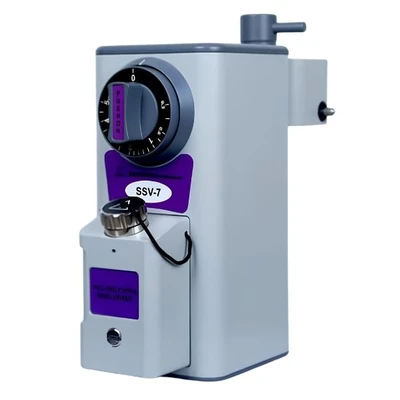

Jasmine Ssv-7 Anaesthesia Vaporizer
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Name : Jasmine SSV-7 Anaesthesia Vaporizer
- Brand : Jasmine
- Model : SSV-7
- Product Type : Variable-bypass Anaesthesia Vaporizer
- Anesthetic Agents : Halothane, Isoflurane, Sevoflurane
- Agent Capacity : 250 ml
- Flow Range : 0.2–15 L/min
- Operating Temperature : 15–35°C
- Pressure Range : 0–5 kPa
- Output Accuracy : ±20% of scale reading or ±2 vol%, whichever is greater
- Flow Compensation : Yes
- Temperature Compensation : Yes
- Filling Options : Pour Fill, Key Fill, Easy Fill, Quick Fill (Sevoflurane)
- Mounting Options : Selectatec® with interlock, Cagemount, Dräger® mount
- MRI Compatibility : Yes*
- Selectatec Dimension : Approx. 240 × 120 × 200 mm
- Selectatec Weight : Approx. 5.2 kg
- Cagemount Dimension : Approx. 227 × 132 × 187 mm
- Cagemount Weight : Approx. 5.0 kg
- Manufacturing : India
- Quality Certification : ISO 13485:2016; CE shown in product literature
highlights
- Model: SSV-7
- Brand: Jasmine / Jasmine Med Technologies
- Type: Anesthesia Vaporizer
- Variable-bypass design
- 250 ml agent capacity
- 0.2–15 L/min flow range
- 15–35°C operating temperature range
- 0–5 kPa pressure range
- Flow and temperature compensated
- Supports multiple anesthetic agents
- Lightweight and maintenance-free design
- Multiple mounting configurations
- Multiple filling-system options
- Indigenous Indian manufacture
- CE / ISO 13485:2016 documentation associated with the manufacturer/product literature.
in the box
- 1 × Jasmine SSV-7 Anaesthesia Vaporizer
- Selected mounting adapter, as configured
- Appropriate filling adapter, depending on the agent/filling system
- User/operation documentation
Use Cases :
- Operating rooms and surgical theatres
- General anesthesia procedures
- Continuous-flow anesthesia systems
- Anesthesia workstations
- Low-flow anesthesia applications
- Hospitals and surgical centres
- Use with anesthesia machines requiring a compatible vaporizer mounting system
Key Features :
- Indigenous-made anesthesia vaporizer
- Maintenance-free design*
- Lightweight body
- Compatible with anesthesia machines
- Accurate anesthetic concentration delivery
- Flow compensation for varying gas-flow conditions
- Temperature compensation for stable vapor output
- Particularly suitable for low-flow anesthesia
- Supports Halothane, Isoflurane and Sevoflurane
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Jasmine SSV-7 Anaesthesia Vaporizer is a variable-bypass anesthesia vaporizer designed to deliver an accurate and adjustable concentration of anesthetic vapor in continuous-flow anesthesia systems. It is incorporated into the fresh-gas supply system, typically connected between the flow meter an...
