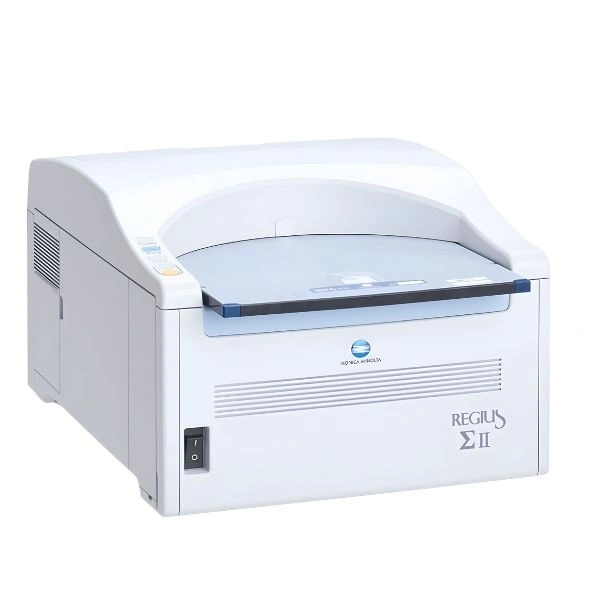

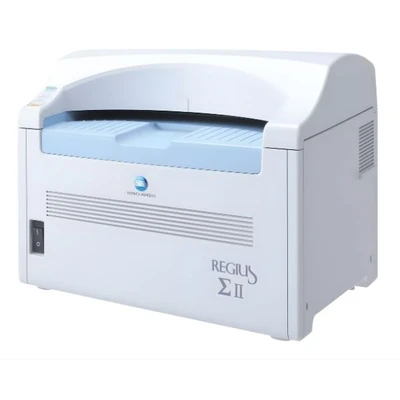

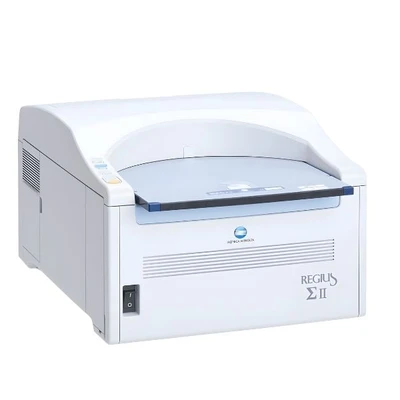

Konica Minolta Regius Sigma II CR System

New

0.0|0 Ratings

Quantity :

Specifications

Model : REGIUS Σ II
Type : Desktop Single-slot Computed Radiography Reader
Processing Capability : Up to 60 plates/hour
Throughput Options : 25 / 45 / 60 plates/hour
Sampling Pitch : 87.5 μm / 175 μm
Maximum Resolution : 4020 × 4892 pixels
Digital Gradation Level : 4096 levels (12-bit)
Cassette Sizes Supported : 14”×17”, 14”×14”, 11”×14”, 10”×12”, 8”×10”, 18×24 cm, 24×30 cm, 15×30 cm
Slot Type : 1 Insertion / Ejection slot
Readable Cassette : REGIUS CASSETTE RC-300
Readable Plate : REGIUS PLATE FP-1S
Dimensions (W × D × H) : 510 × 610 × 355 mm
Weight : Approx. 28 kg
Footprint : 0.31 m²
Power Consumption : 100 VA max during operation / 20 VA standby
Operating Temperature : 10°C to 30°C
Operating Humidity : 15% to 80% RH (non-condensing)

highlights

Konica Minolta’s smallest and lightest CR system
Fast and smooth workflow
Automatic image enhancement reduces retakes
Low power consumption compared to film processors
Compact enough for desktop installation
Affordable digital upgrade from film-based systems
Can integrate with PACS and existing imaging workflows

in the box

REGIUS Σ II CR Reader
ImagePilot Workstation/Software
Power cable
User manuals/documentation

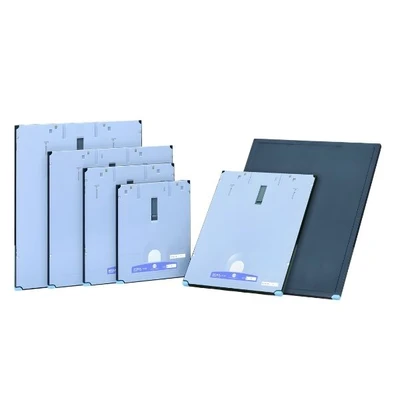

Optional CR cassettes and imaging plates
Touchscreen monitor (in bundled configurations)

Use Cases :

General radiography in clinics and hospitals
Emergency room imaging
Orthopedic imaging
Chest X-ray examinations
Veterinary imaging
Small diagnostic centers
Specialty departments with limited space

Key Features :

Ultra-Compact Desktop Design – Requires only 0.31 m² installation space.
Lightweight System – Weighs approximately 28 kg, making installation easier.
Flexible Throughput Options – Selectable 25 / 45 / 60 plates per hour depending on workflow needs.
High Resolution Imaging – Supports 87.5 μm and 175 μm pixel sizes.
Maximum Resolution – Up to 4020 × 4892 pixels (14”×17” cassette at 87.5 μm).
Integral Processing Technology – Automatic image optimization for consistent diagnostic quality.
All-in-One Workflow – Compatible with ImagePilot software for image acquisition, viewing, archiving, and PACS functions.
Environmentally Friendly – Power consumption only 100 VA during operation.
Easy Maintenance – Simple and efficient operation with low running costs.
Multi-touch Support – Easy control through touch-enabled interface.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Konica Minolta REGIUS Σ II (Sigma II) is an ultra-compact, desktop-type Computed Radiography (CR) system designed for clinics, small hospitals, emergency rooms, and imaging centers. It offers high-resolution image acquisition, flexible throughput options, and automatic image processing in a ligh...
