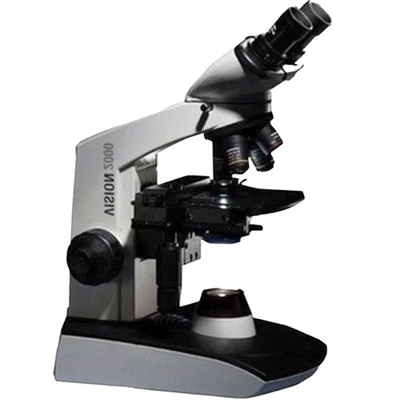

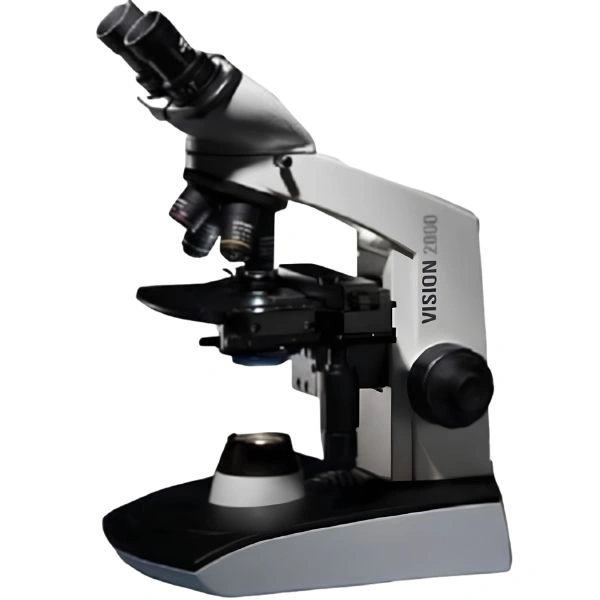

Labomed Vision 2000New Binocular LED Microscope
New0.0|0 Ratings
₹44,500₹64,99932% off
Quantity :
1
Specifications
- Brand : LABOMED
- Model : Vision 2000 New LED
- Configuration : Binocular
- Model/Code : FAD5130000LED
- Viewing Head : Binocular tube, 45° inclined
- Head Rotation : 360° rotatable
- Eyepiece : WF 10×/18 mm
- Eye Guard : Foldable
- Interpupillary Distance : Approx. 54–74 mm
- Nosepiece : Quadruple revolving nosepiece
- Nosepiece Mechanism : Ball-bearing type with rubber grip
- Objectives : DIN Semi-Plan Achromatic
- Objective Set : 4×, 10×, 40× spring-loaded, 100× oil spring-loaded
- Maximum Objective Magnification : 100×
- Eyepiece Magnification : 10×
- Maximum Optical Magnification : 1000×
- Stage : Mechanical stage
- Stage Size : Approx. 135 × 125 mm
- Stage Movement : Coaxial X-Y movement
- Condenser : Sub-stage Abbe condenser
- Condenser : NA 1.25
- Diaphragm : Iris diaphragm
- Filter : Snap-in blue filter
- Focusing : Coaxial coarse & fine focusing
- Fine Focus Movement : Approx. 0.2 mm/division
- Illumination LED
- LED Control : Variable illumination control
- LED Life : Up to 100,000 hours
- Battery Backup : Yes
- Optical Protection : Antifungal treatment/coating
- Power Supply : Approx. 220–240 V AC
- Application : Laboratory, educational and routine microscopy
highlights
- Professional binocular laboratory microscope
- New-generation LED illumination
- Battery backup for continued operation
- 45° inclined and 360° rotatable viewing head
- WF 10×/18 mm wide-field eyepieces
- Four-position revolving nosepiece
- Semi-plan achromatic objective set
- 100× oil immersion objective included
- Mechanical stage with smooth coaxial movement
- Abbe condenser with NA 1.25
- Coaxial coarse and fine focusing
- Antifungal optical protection
- Designed for smooth, precise and routine laboratory microscopy
in the box
- LABOMED Vision 2000 New binocular microscope body
- Binocular viewing head
- WF 10×/18 mm eyepieces
- 4× objective
- 10× objective
- 40× spring-loaded objective
- 100× oil spring-loaded objective
- Mechanical stage
- Abbe condenser
- LED illumination system
- Battery-backup system
- Power supply/electrical connection
- Dust cover
- Basic microscope accessories/manuals
Use Cases :
- Medical and clinical laboratories
- Pathology laboratories
- Microbiology laboratories
- Educational laboratories
- Colleges and universities
- Biological specimen examination
- Routine laboratory microscopy
- Research and teaching applications
Key Features :
- Binocular viewing head with 45° inclination and 360° rotation
- Wide-field WF 10×/18 mm eyepieces
- Foldable eye guards with antifungal treatment
- Quadruple revolving nosepiece with ball-bearing mechanism and rubber grip
- DIN semi-plan achromatic objectives
- Objectives: 4×, 10×, 40× spring-loaded and 100× oil spring-loaded
- Mechanical stage with coaxial low-drive controls
- Sub-stage Abbe condenser NA 1.25
- Iris diaphragm with snap-in blue filter
- Coaxial coarse and fine focusing system
- Fine focusing movement of approximately 0.2 mm/division
- LED illumination with variable intensity control
- LED life of up to 100,000 hours
- Battery backup in the New LED configuration
- Ball-bearing guides for smooth mechanical operation
- Antifungal optical treatment/coating on specified optical components
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The LABOMED Vision 2000 New LED Binocular Microscope is a laboratory compound microscope designed for routine laboratory, educational and clinical observation. It features a 45° inclined, 360° rotatable binocular viewing head, wide-field WF 10×/18 mm eyepieces, DIN semi-plan achromatic objectives, a...
