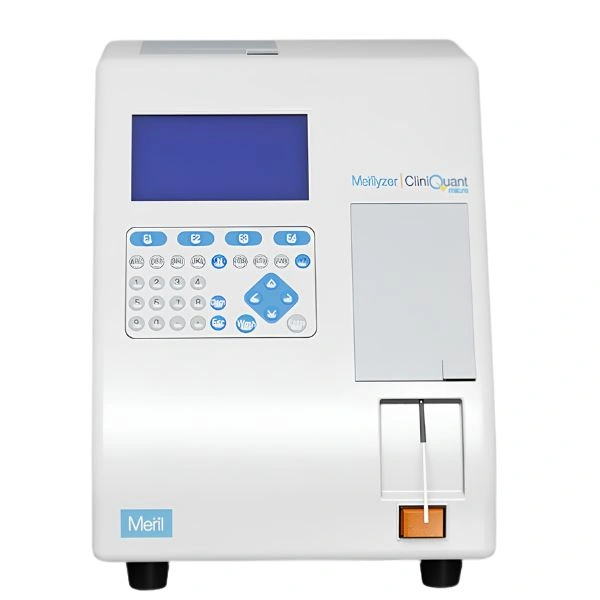

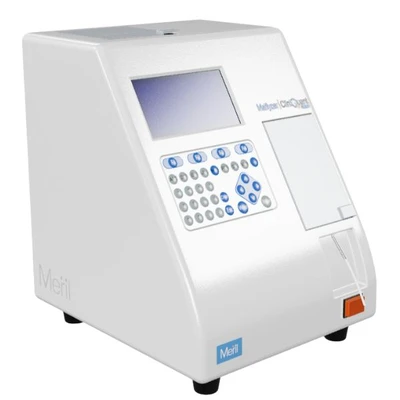

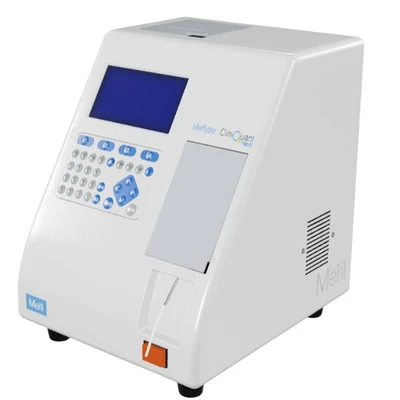

Meril Merilyzer CliniQuant Micro Semi-Automatic Analyzer
New0.0|0 Ratings
₹72,500₹95,00024% off
Quantity :
1
Specifications
- Model : Merilyzer CliniQuant Micro
- Type : Semi-Automated Biochemistry Analyzer
- Assay Modes : 8 modes
- Assay Modes : Absorbance, End Point, Fixed Time, Rate, Sample Blank, Multi Standard, Two Point Non-Linear, Sample Blank Non-Linear
- Sample Type : Serum / Urine / Plasma / Body Fluids / Hemolysate
- System : Open system
- Light Source : 6 V, 10 W Quartz Halogen Lamp
- Lamp Life : Approx. 2,000 hours
- Measurement Method : Monochromatic & Bichromatic
- Photodetector : Silicon photodiode
- Wavelengths : 340, 405, 505, 546, 578, 620 nm
- Free Filter Positions : 2
- Absorbance Range : 0–2.5 Abs
- Resolution : 0.0001 Abs
- Test Ware : Quartz Flow Cell / 6 mm polystyrene cuvette
- Flow Cell Volume : 32 µL
- Minimum Reaction Volume : 350 µL
- Aspiration Volume : 200–1500 µL
- Air-Gap Aspiration : Variable, 0–50 µL
- Cross Contamination : <1%
- Delay/Incubation Time : 3–999 seconds
- Read Time – End Point : 3–999 seconds
- Read Time – Rate/Fixed Time : 30–999 seconds
- Temperature Control : Peltier control
- Temperature Settings : 25°C / 30°C / 37°C
- Temperature Accuracy : ±0.1°C
- Display : 240 × 128 pixel graphical LCD with LED backlight
- Keyboard : Yes
- Printer : Built-in 384-dot thermal printer
- Data Storage : 25,600 test data; 3 months QC data
- QC : Daily & monthly QC, 3 levels with LJ graph
- Memory : FLASH
- PC Communication : 9-pin D-type serial connector / RS232
- PC Software : Optional
- Operating Voltage : 230 V, 50 Hz
- Power Consumption : Maximum 45 W
- Operating Temperature : 10–35°C
- Storage Temperature : -10–40°C
- Humidity : ≤80% RH
- Dimensions (W × D × H) : 245 × 273 × 299 mm
- Weight : Approx. 10 kg
highlights
- High-performance semi-automated biochemistry analyzer
- Compact & vertical design, suitable for routine clinical chemistry
- 8 assay modes – Absorbance, End Point, Fixed Time, Rate, Sample Blank, Multi Standard, Two Point Non-Linear & Sample Blank Non-Linear
- 100 programmable test channels
- 32 µL quartz flow cell for low reagent/sample consumption
- Low minimum reaction volume of 350 µL
- 0.0001 absorbance resolution for high sensitivity
- 6 standard wavelength filters – 340, 405, 505, 546, 578 & 620 nm
- 2 additional free filter positions
- Monochromatic & bichromatic measurement
in the box
- CliniQuant Micro Analyzer
- Quartz flow cell / flow-cell assembly
- Built-in thermal printer
- Power/electrical accessories
- User/operator software functions
- RS232 communication interface
- Required accessories for sample aspiration/measurement
Use Cases :
- Routine clinical chemistry testing
- Biochemical analysis of serum, urine and plasma
- Turbidimetric immunoassays
- Specialized biochemical assays
- Small-volume/pediatric sample testing
- Quantitative and kinetic assays
- Quality-control monitoring using Levey-Jennings plots
- Laboratories requiring a compact semi-automated analyzer
- Testing areas including clinical chemistry, special proteins, drugs of abuse, therapeutic drugs and electrolytes.
Key Features :
- 100 programmable channels for flexible test programming.
- 32 µL quartz flow cell for reduced reagent/sample consumption.
- Low minimum reaction volume of 350 µL, suitable for small-volume samples.
- 0.0001 resolution for detecting small changes in optical density.
- Monochromatic and bichromatic measurement.
- Six wavelength filters: 340, 405, 505, 546, 578 and 620 nm, plus 2 free positions.
- Peltier-based dynamic temperature control.
- Three levels of QC with Levey-Jennings plotting.
- Recal function for kinetic assays, allowing selection of the linear phase of a reaction curve in hyperactive samples to save reagent and time.
- Variable air-gap aspiration of 0–50 µL to minimize carry-over/cross-contamination.
- Automatic air-purging facility.
- Integrated software with direct access to test icons.
- Built-in thermal printer.
- RS232 interface for PC communication; PC software is optional.
Warranty
2 Year
Seller
AA MEDIE QUIPLearn More
Product Description
Merilyzer CliniQuant Micro is a compact, semi-automated biochemistry analyzer designed for routine clinical chemistry and turbidimetric immunoassays. It is designed to provide accurate and precise results while requiring a relatively low reaction volume, making it particularly suitable for laborator...
