Shipping time and rates
Shipping about 5-7 days

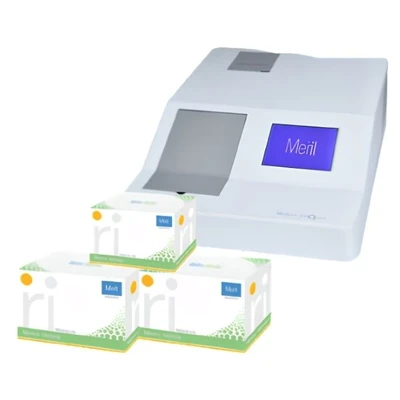

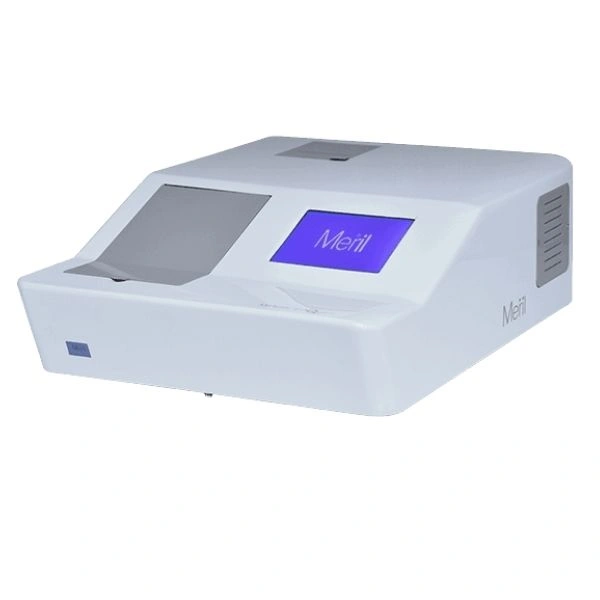

Meril Merilyzer EIA Quant Elisa Reader
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Type : Semi-Automated ELISA Microplate Reader
- Detection Principle : Absorbance
- Assay Modes : Quantitative / Semi-Quantitative / Qualitative
- Plate Type : 96-well Microplate
- Optical System : 8-channel Fiber Optics
- Light Source : 12V, 20W Halogen Lamp
- Standard Filters : 405, 450, 492, 630 nm
- Optional Filters : 3 Additional Positions
- OD Range : 0.000 – 4.000 OD
- Reading Mode : Monochromatic / Bichromatic
- Reading Speed : 6.5 sec (single wavelength), 16 sec (dual wavelength)
- Display : 320 × 240 LCD with LED Backlight
- Printer : Built-in Thermal Printer
- Interface : USB / RS-232
- Power Supply : 100–240 VAC, 50/60 Hz
- Power Consumption : 65 W Max
- Dimensions : 400 × 525 × 185 mm
- Weight : Approx. 14 kg
highlights
- Reads complete 96-well microplates rapidly
- High absorbance range improves assay linearity
- Fast reading speed for high-throughput labs
- Advanced QC management with multi-level controls
- Flexible filter configuration with optional additional filters
- Supports single-well and strip reading for urgent samples
- Reliable performance with excellent repeatability (CV < 3%)
in the box
- 1 × Merilyzer EIA Quant Elisa Reader Unit
- Power cable
- User manual
- Built-in thermal printer roll
- Standard optical filters (405, 450, 492, 630 nm)
- Software / connectivity accessories (model dependent)
Use Cases :
- Hospital diagnostic laboratories
- Pathology labs
- Blood banks
- Research laboratories
- ELISA-based infectious disease testing (HIV, HBV, HCV, Dengue, etc.)
- Hormone and immunology assays
- Clinical serology testing
Key Features :
- Semi-automated ELISA plate reader for routine laboratory use
- Supports quantitative, semi-quantitative, and qualitative assays
- 8-channel fiber optic optical system for precise absorbance reading
- Large LCD touchscreen display for easy operation
- Built-in thermal printer for instant result printouts
- Supports monochromatic and bichromatic reading modes
- Self-diagnosis function for troubleshooting
- Copy test and rerun options for workflow efficiency
- QC support with Levey-Jennings (L-J) graph for quality control
- Low-maintenance optical design for long-term reliability
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Merilyzer EIA Quant Elisa Reader is a semi-automated ELISA microplate reader designed for accurate absorbance measurement of samples in 96-well microtiter plates. It uses a high-quality optical system combined with embedded computer control technology to deliver reliable measurement, precise dat...
Other Details
