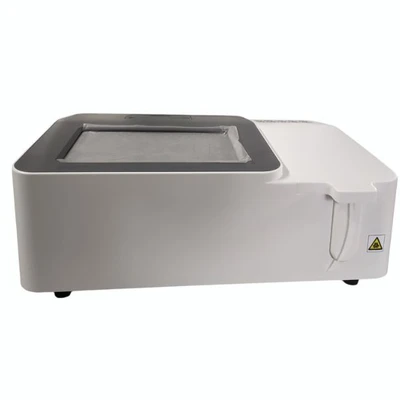

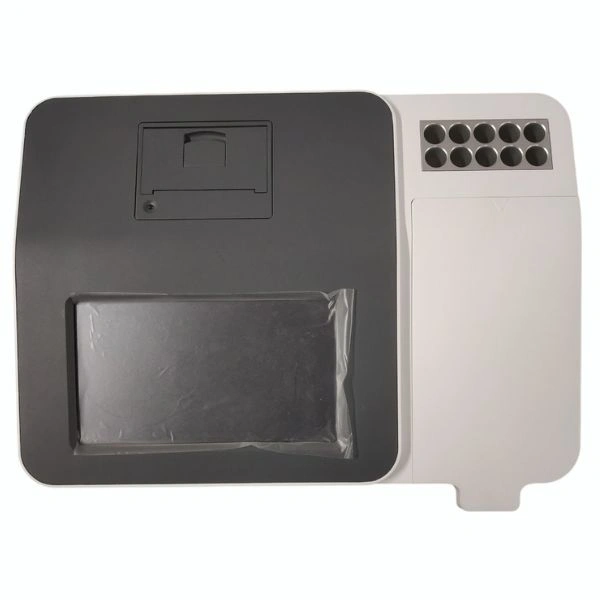

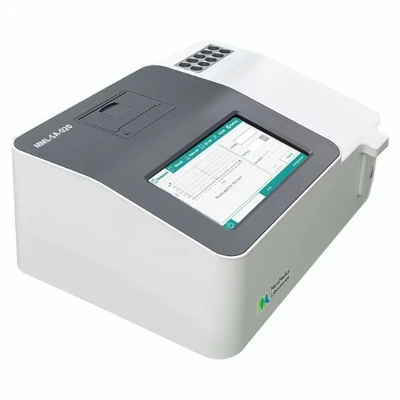

MicroMedica MML SA-020 Semi Automatic Biochemistry Analyzer

New

Specifications

Analysis Methods: End-Point Method, Rate Method, Two-Point Method, Multi-Standard Method, Dual-Wavelength Method, Two-Point Endpoint Method
Sample Types Supported: Serum, Plasma, Urine, Cerebrospinal Fluid (CSF)
Sample Volume: 1 µL – 5000 µL (adjustable)
Filters / Wavelengths: 340 nm, 405 nm, 450 nm, 505 nm, 546 nm, 578 nm, 630 nm (Optional 670 nm filter available
Flowcell: Cuvette design for reliable optical readings
Absorbance Range: 0–4.0 A (typical)
Absorbance Accuracy: High-precision measurement resolution (up to 0.0001 A)
Display: Large 7-inch color touch screen
Interface: Standard USB port for data export and connectivity
Result Storage: Up to 100,000 records
Built-In Thermal Printer: Ready-to-print results with graphical support
Size: Approx. 340 mm (Depth) × 260 mm (Width) × 142 mm (Height)
Net Weight: Approx. 4.6 kg — lightweight and easy to position on lab benches

highlights

Consistent and reliable results for daily lab testing
Simple user interface for easy operation by lab technicians
Flexible assay options for different clinical parameters
Compact benchtop design saves laboratory space
Low maintenance with durable internal components

in the box

MML SA-020 Semi Automatic Biochemistry Analyzer
Power Cable
Quartz Flowcell Assembly
User Manual
Warranty Card

Use Cases

Hospital pathology laboratories
Diagnostic and reference labs
Health check-up and wellness centers
Small to medium-sized clinical laboratories

Key-Features

Supports multiple biochemistry test methods for routine diagnostics
Automatic optical filter system for flexible test selection
High-quality quartz flowcell for accurate absorbance measurement
Peltier-based temperature control ensures stable reaction conditions
Bright color LCD display with graphical result presentation
Allows manual input of standards and absorbance values
Compatible with commonly used open-system biochemistry reagents

Test Menu & Parameters

Hepatic Function: ALB, TP, ALP, AST (GOT), ALT (GPT), GGT, DB, TB
Inorganic Ions: Ca, Cl, Fe, K, Mg, Na, P
Kidney Function: CREA, UA, UREA
Cardiac Biomarkers: CK, CK-MB, HBDH, LDH
Blood Lipids: CHOL, TG, HDL, LDL, ApoA1, ApoB, Lp(a)
Others: AMY, GLU

Warranty

No Warranty

Seller

AA Medie QuipLearn More

Product Description

The MML SA-020 Semi Automatic Biochemistry Analyzer is a reliable laboratory solution designed for accurate and routine biochemical testing. It offers a smooth combination of manual sample handling and automated analysis, making daily lab work faster and more consistent. With precise temperature con...
