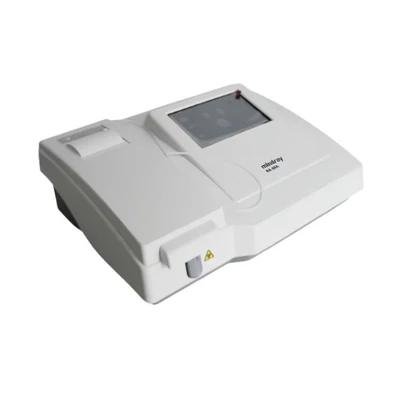

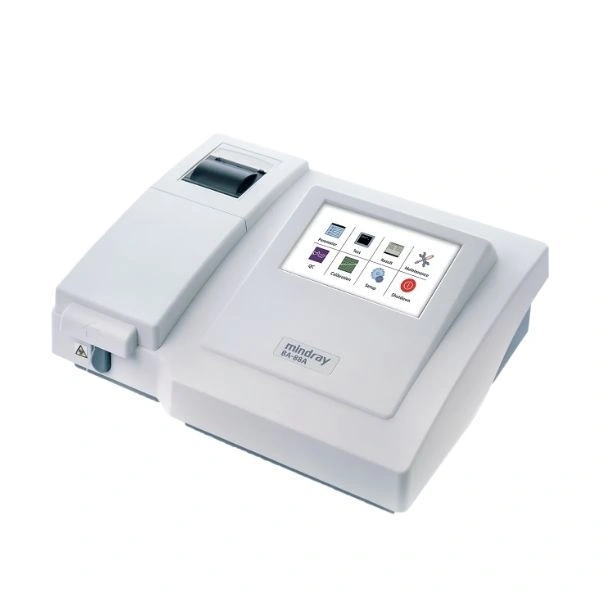

Mindray BA-88A Semi-Auto Chemistry Analyzer
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Name : Mindray BA-88A Semi-Auto Chemistry Analyzer
- Test Principle : Colorimetry, Turbidity
- Analysis Methods : Endpoint, Kinetics, Two-point Kinetics/Fixed-time, Absorbance, Turbidimetry
- Calibration : Linear and non-linear calibration
- Light Source : Tungsten-halogen lamp, 6V/10W
- Wavelength Selection : Automatic 8-position filter wheel
- Standard Wavelengths : 340 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 630 nm and 670 nm
- Bandwidth : < 8 nm
- Stray Light : < 0.1% @ 340 nm
- Photometric Range : 0–3.5 ABS
- Photometric Stability : < 0.005 A/20 min @ 340 nm
- Testing Modes : Flowcell or Cuvette
- Flowcell Material : Stainless steel with quartz window
- Flowcell Measuring Volume : 32 μL
- Optical Path : 10 mm
- Programmable Aspiration Volume : 200–9000 μL
- Temperature Control : Peltier elements
- Temperature Settings : Room temperature, 25°C, 30°C, 37°C
- Input : Touchscreen with touch pen and pop-up keypad
- External Input : USB keyboard or mouse
- Sample Result Storage : More than 3,000 sample results
- QC Result Storage : More than 1,000 QC results
- Printer : Built-in thermal printer; supports HP series
- Communication Interface : RS232 serial port
- USB Interface : USB 2.0
- Operating Temperature : 15°C–30°C
- Operating Humidity : 35%–85%, non-condensing
- Power Supply : AC 100–240V, 50/60Hz
- Dimensions (L × W × H) : 430 × 360 × 170 mm
- Weight : 6.8 kg
highlights
- Semi-automatic operation for flexible laboratory workflows
- Compact benchtop design
- 32 μL flowcell measuring volume
- 10 mm optical path
- Tungsten-halogen 6V/10W lamp
- 0–3.5 ABS photometric range
- Temperature settings: Room temperature, 25°C, 30°C and 37°C
- Built-in thermal printing
- USB connectivity for keyboard, mouse and printer
- Supports linear and non-linear calibration
- Real-time monitoring of reaction curves and data
in the box
- BA-88A Semi-Auto Chemistry Analyzer
- Touchscreen with touch pen/pop-up keypad
- Built-in thermal printer
- Flowcell system
- USB interfaces
- RS232 serial interface
Use Cases :
- Routine clinical chemistry testing
- Biochemical analysis in diagnostic laboratories
- Hospital laboratory testing
- Small and medium-sized clinical laboratories
- Testing of parameters such as glucose, urea, creatinine, cholesterol, triglycerides, liver enzymes and other biochemical analytes
- Quality-control testing and result management
- Laboratories requiring both flowcell and cuvette testing flexibility
Key Features :

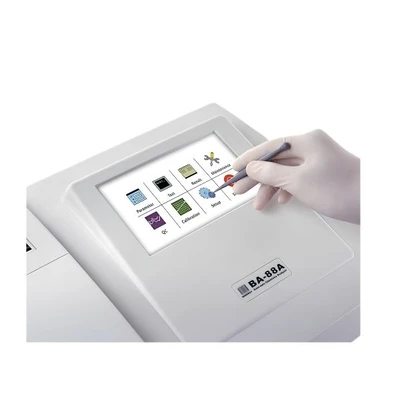

- 7.0-inch TFT touch-screen with pop-up keypad
- Two testing modes: Flowcell or Cuvette
- Supports Endpoint, Kinetics, Fixed-Time and Absorbance methods
- Supports bi-chromatic tests
- Automatic 8-position filter wheel
- Wavelength range from 340 nm to 670 nm
- External USB keyboard and mouse support
- User-friendly, multilingual operating software
- Built-in thermal printer
- Programmable aspiration volume
- Peltier-based temperature control
- Storage for more than 3,000 sample results
- Storage for more than 1,000 QC results
- RS232 interface for data transmission
- Easy lamp replacement and maintenance
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Mindray BA-88A is a semi-automatic chemistry analyzer designed for routine biochemical testing in clinical laboratories. It features a 7.0-inch TFT touchscreen with pop-up keypad, user-friendly multilingual software, and two testing modes—flowcell and cuvette. The analyzer supports endpoint, kin...
