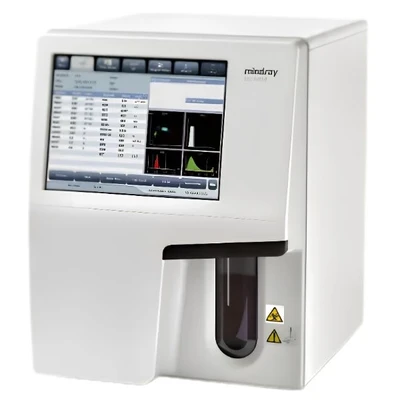

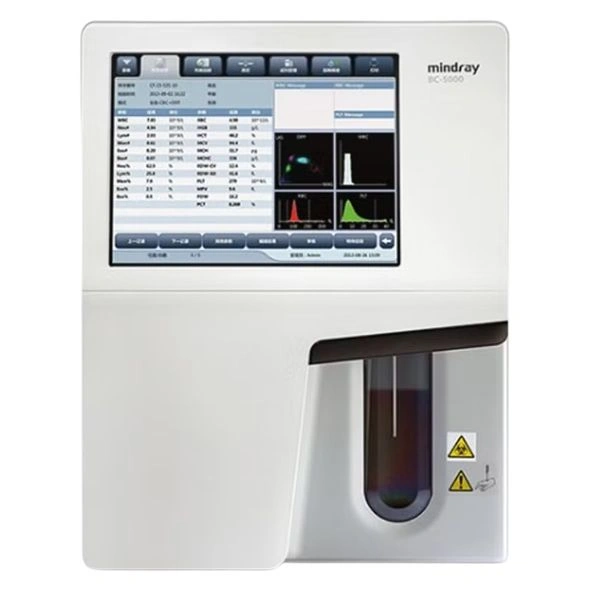

Mindray BC-5000 5- Part Hematology Analyzer
New0.0|0 Ratings
Quantity :
1
Specifications
- Analyzer Type : 5-Part Differential Hematology Analyzer
- Parameters : 23 Parameters
- Technology : Impedance + Flow Cytometry + Laser Scatter + Chemical Dye
- Histograms : 3
- Scattergrams : 3
- Sample Modes : Whole Blood / Capillary / Prediluted
- Sample Volume : 15 µL (Whole Blood/Capillary), 20 µL (Prediluted)
- Throughput : 40 samples/hour
- Display : 10.4" TFT Touch Screen
- Data Storage : Up to 20,000 results
- Interface : USB, LAN
- LIS Support : Bi-directional, HL7
- WBC Linearity : 0–100 ×10⁹/L
- RBC Linearity : 0–8 ×10¹²/L
- HGB Linearity : 0–250 g/L
- PLT Linearity : 0–1000 ×10⁹/L
- Operating Temperature : 10°C – 30°C
- Humidity : 20% – 85%
- Power Supply : 100–240V, 50/60 Hz
- Dimensions : 400 × 320 × 410 mm
- Weight : 24 kg
highlights
- Compact and lightweight design for small lab spaces
- Advanced optical technology improves WBC differentiation accuracy
- Efficient abnormal cell flagging for better clinical review
- Fast throughput reduces turnaround time
- Cost-efficient operation for medium-volume laboratories
- Multiple connectivity options (USB, LAN, LIS integration)
in the box
- 1 × BC-5000 Hematology Analyzer Main Unit
- Power Cable
- User Manual / Documentation
- Sample Probe Assembly
- Reagent Tubing Set
- Starter Reagent Pack (Diluent, DIFF Lyse, LH Lyse, Probe Cleanser)
- QC/Calibration Accessories
Use Cases :
- Hospitals & Diagnostic Laboratories for routine CBC testing
- Pathology labs requiring 5-part leukocyte differentiation
- Pediatric testing centers due to low sample volume requirement
- Emergency/Critical care labs for rapid hematology reporting
- Blood disorder screening including anemia, infection, inflammation, and leukemia support testing
Key Features :
- 5-part WBC differential analysis with 23 reportable parameters
- 3 histograms + 3 scattergrams for detailed cell analysis
- Tri-angle laser scatter + chemical dye + flow cytometry technology
- Dedicated optical basophil counting channel
- 10.4-inch TFT touchscreen with user-friendly interface
- 40 samples/hour throughput
- Supports Whole Blood, Capillary Whole Blood, and Prediluted modes
- Low sample requirement: 15 µL (ideal for pediatric use)
- Large storage capacity of up to 20,000 sample results
- Supports bi-directional LIS and HL7 communication
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Mindray BC-5000 is a compact, fully automated 5-part differential hematology analyzer designed for diagnostic laboratories requiring Complete Blood Count (CBC) + 5-part WBC differential analysis. It is ideal for labs with limited space, moderate sample volumes, and cost-sensitive operations. The...
