Shipping time and rates
Shipping about 5-7 days

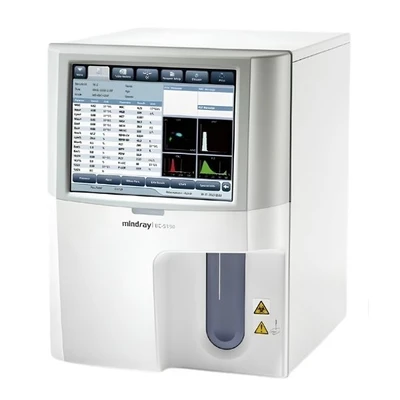

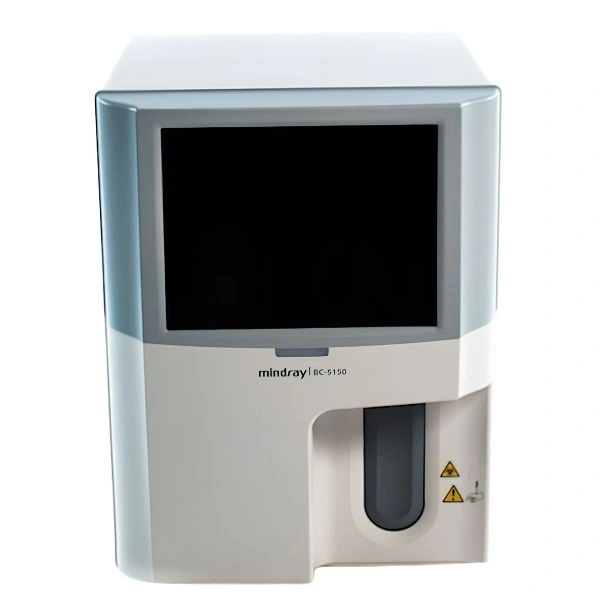

Mindray BC-5150 5-Part Hematology Analyzer
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Type : 5-Part Hematology Analyzer
- Principle : DC Impedance + Flow Cytometry + Tri-angle Laser Scatter + Chemical Dye
- Parameters : 25 Reportable + 12 Research Parameters
- Histograms : 3 (WBC, RBC, PLT)
- Scattergrams : 3
- Throughput : 60 samples/hour
- Sample Volume (Whole Blood) : 15 µL
- Sample Volume (Capillary) : 15 µL
- Sample Volume (Prediluted) : 20 µL
- Display : 10.4" TFT Touch Screen
- Data Storage : Up to 250,000 results
- Connectivity : USB, LAN
- LIS Support : Bi-directional LIS, HL7
- Reagents : M-52D Diluent, M-52DIFF Lyse, M-52LH Lyse, Probe Cleanser
- WBC Linearity : 0–500 × 10⁹/L
- RBC Linearity : 0–8 × 10¹²/L
- HGB Linearity : 0–250 g/L
- PLT Linearity : 0–5000 × 10⁹/L
- Operating Temperature : 10–30°C
- Humidity : 20–85%
- Power Requirement : 100–240V, 50/60Hz
- Dimensions : 400 × 320 × 410 mm
- Weight : 24 kg
highlights
- One of Mindray’s lightest and most compact 5-part analyzers
- Provides CBC + DIFF in a cost-efficient manner
- Internal reagent placement saves laboratory space
- Enhanced low platelet counting accuracy with 50 μm aperture
- Includes NLR (Neutrophil-to-Lymphocyte Ratio) parameter
- Low reagent consumption with long reagent shelf life (up to 2 years)
in the box
- 1 × BC-5150 Main Analyzer Unit
- Power cable
- Sample probe assembly
- User manual / documentation
- Reagent tubing set
- QC / calibration support materials (market dependent)
- Dust cover / accessories kit
Use Cases :
- Diagnostic laboratories
- Hospitals and pathology labs
- Blood testing centers
- Pediatric hospitals (capillary sampling support)
- Routine CBC screening
- Infection/inflammation assessment
- Anemia diagnosis
- Platelet and WBC disorder analysis
Key Features :
- 5-part WBC differential analysis
- 25 reportable parameters + 12 research parameters
- 60 samples/hour throughput
- 10.4-inch TFT touchscreen with user-friendly interface
- Supports whole blood, capillary blood, and prediluted modes
- Bi-directional LIS connectivity with HL7 protocol
- Dedicated Basophil optical counting channel
- Advanced abnormal cell flagging
- Compact footprint for space-saving installation
- Requires only 3 routine reagents
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Mindray BC-5150 is a compact, fully automated 5-part differential hematology analyzer designed for diagnostic laboratories requiring complete CBC (Complete Blood Count) with 5-part WBC differential analysis. It is especially suitable for labs with low to medium sample volume, limited bench space...
