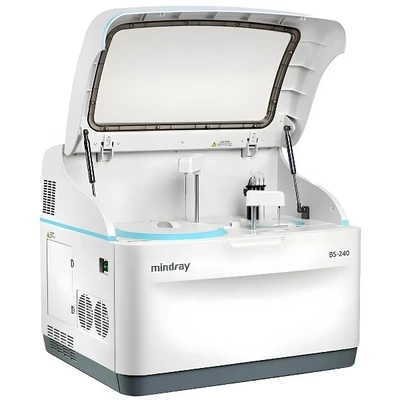

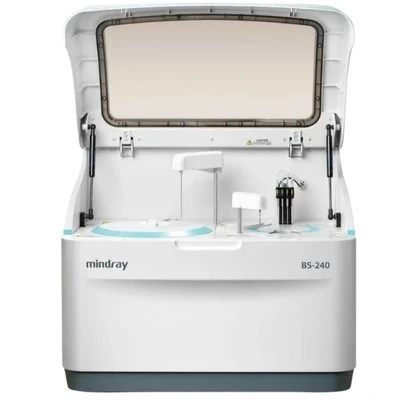

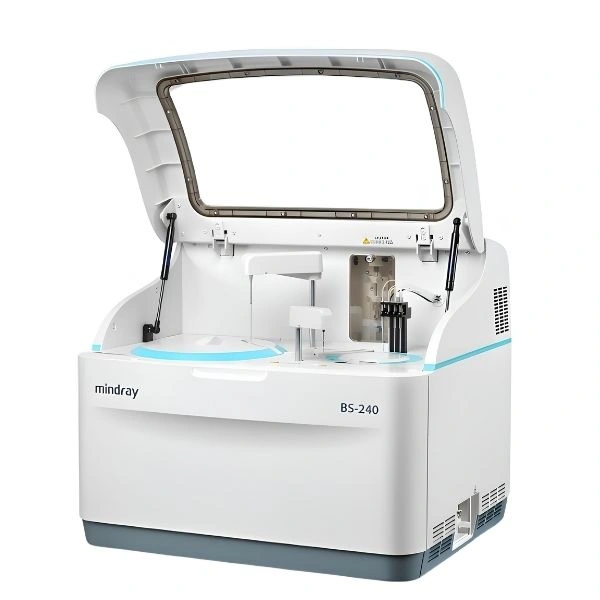

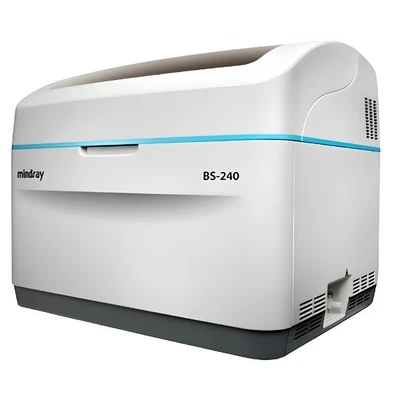

Mindray BS-240 Fully-Automatic Biochemistry Analyzer
New0.0|0 Ratings
Quantity :
1
Specifications
- System Type : Automatic, Discrete, Random Access, Bench-top
- Throughput : Up to 200 tests/hour
- Throughput with ISE : Up to 400 tests/hour
- Measuring Principle : Absorbance Photometry, Turbidimetry, Optional ISE
- Methodology : End-point, Fixed-time, Kinetic
- Sample Positions : 40 (expandable to 80)
- Reagent Positions : 40 (expandable to 80)
- Sample Volume : 2–45 µL
- Reagent Volume : 10–250 µL
- Reaction Volume : 100–360 µL
- Reaction Temperature : 37°C ± 0.1°C
- Cuvette Type : Reusable, 5 mm optical path
- Light Source : Halogen-Tungsten Lamp
- Wavelengths : 340, 405, 450, 510, 546, 578, 630, 670 nm
- Absorption Range : 0–4.0 Abs
- Carryover : < 0.05%
- Barcode Reader : Optional
- Interface : RS-232 / LIS Compatible
- Power Supply : 200–240V, 50/60Hz
- Water Consumption : ≤ 4 L/hour
- Dimensions : 690 × 580 × 595 mm
- Weight : ~79 kg
highlights
- Compact benchtop footprint saves laboratory space
- High-speed analysis with stable performance
- Easy step-by-step maintenance interface
- Reduced water consumption
- Intelligent probe with collision protection
- Reusable cuvette system lowers operating cost
- Precise photometric system with multiple wavelengths
- Reliable calibration and quality control support
in the box
- 1 × Mindray BS-240 Analyzer Main Unit
- Sample Tray
- Reagent Tray
- Reaction Cuvette Assembly
- Power Cable
- Waste/Water Tubing Set
- User Manual / Operation Guide
- Calibration & QC Documentation
- Software / System Interface Setup
Use Cases :
- Diagnostic laboratories
- Hospital pathology labs
- Clinical biochemistry testing centers
- Small to medium laboratories
- Backup analyzer for high-volume labs
Key Features :
- Fully Automatic Operation with discrete random-access testing
- Throughput up to 200 tests/hour (up to 400 tests/hour with optional ISE module)
- 40 sample positions, expandable up to 80
- 40 reagent positions, expandable up to 80
- Smart Sampling Technology for automatic HbA1c hemolysate preparation
- Minimum reaction volume of 100 µL for reagent saving
- Low carryover (<0.05%) via upgraded auto-washing system
- STAT sample priority for urgent testing
- Optional ISE module for electrolytes (Na⁺, K⁺, Cl⁻)
- Bi-directional LIS connectivity for laboratory data management
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Mindray BS-240 is a fully automatic, benchtop clinical biochemistry analyzer designed for small laboratories and as a backup analyzer for medium-to-high workload labs. It offers high-speed biochemical testing with advanced automation, compact design, and low reagent consumption. Mindray describe...
