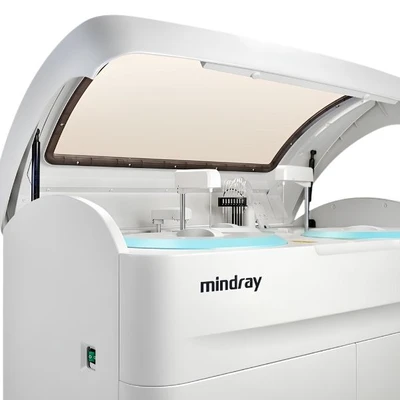

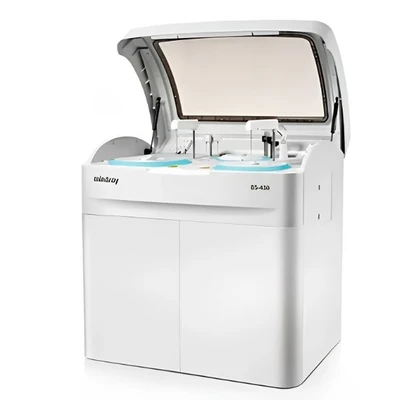

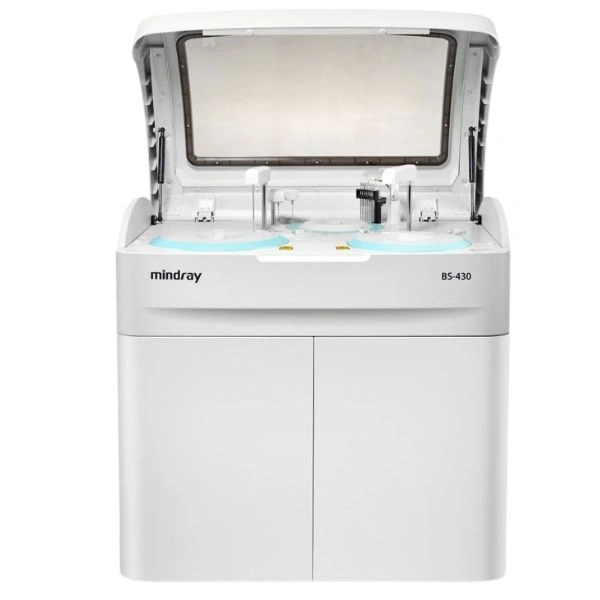

Mindray BS-430 Fully Auto Biochemistry Analyzer
New0.0|0 Ratings
Quantity :
1
Specifications
- Model : BS-430
- Analyzer Type : Fully Automatic Clinical Chemistry Analyzer
- System Function : Random Access, Discrete, STAT Priority
- Throughput : 420 tests/hour
- Throughput with ISE : Up to 626 tests/hour
- On-board Tests : 90 photometric + 3 ISE + 3 serum indices
- Sample Positions : 102
- Sample Volume : 1.5–45 µL
- Reagent Positions : 92 (Refrigerated 2–8°C)
- Reagent Volume : 10–200 µL
- Reaction Cuvettes : 93 reusable cuvettes
- Reaction Volume : 100–300 µL
- Reaction Temperature : 37 ± 0.1°C
- Mixing System : 2 independent mixers
- Light Source : 12V 20W Tungsten Halogen Lamp
- Wavelengths : 340–800 nm (12 wavelengths)
- Absorbance Range : 0–3.5 Abs
- Calibration Modes : Linear, Multi-point, Logit-Log, Spline etc.
- QC Rules : Westgard, Levey-Jennings
- Power Supply : 220–240V, 50/60Hz
- Water Consumption : ≤20 L/hour
- Dimensions : 1050 × 720 × 1150 mm
- Weight : ≤200 kg
- Connectivity : RS-232, LIS Compatible
in the box
- 1 × Mindray BS-430 Analyzer Main Unit
- Sample Tray Assembly
- Reagent Tray Assembly
- Power Cable
- User Manual / Documentation
- Waste & Water Tubing Set
- Calibration Accessories
- Optional ISE Module (if ordered)
available offers
- ✔ High throughput suitable for 200–800 tests/day labs
- ✔ Compact design with powerful performance
- ✔ Long-life tungsten halogen lamp (up to 2000 hours)
- ✔ Reduced manual intervention with intelligent software
- ✔ Advanced QC with calibration and Westgard rules
- ✔ Supports LIS integration for digital workflow
- ✔ Compatible with multiple Mindray reagent systems
- ✔ Lower cost per test due to optimized reagent usage
Use Cases :
- Routine clinical biochemistry testing
- Liver Function Tests (LFT)
- Kidney / Renal Function Tests (KFT/RFT)
- Lipid profile testing
- Diabetes screening (including HbA1c)
- Cardiac marker analysis
- Electrolyte testing (with optional ISE module)
- Specialty chemistry assays
- Medium-volume hospital and pathology laboratory testing
Key Features :
- Fully Automatic Random Access System for uninterrupted sample processing
- 420 photometric tests/hour throughput
- Up to 626 tests/hour with optional ISE module
- AAA System (Analyzer + Reagent + Application) for accurate and traceable results
- 92 refrigerated reagent positions for improved reagent stability
- 102 sample positions for high sample loading
- HbA1c smart sampling with onboard automatic hemolysis
- Auto rerun & intelligent carryover management
- Enhanced grating optical system with 12 wavelengths
- Low reagent consumption for reduced cost per test
- Dry bath reaction system requiring minimal maintenance
- Automatic dilution & sample clot detection
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Mindray BS-430 is a fully automatic clinical biochemistry analyzer designed for small to mid-workload laboratories requiring high reliability, fast throughput, and cost-efficient testing. It offers a compact footprint while maintaining high processing capacity, making it suitable for growing dia...
