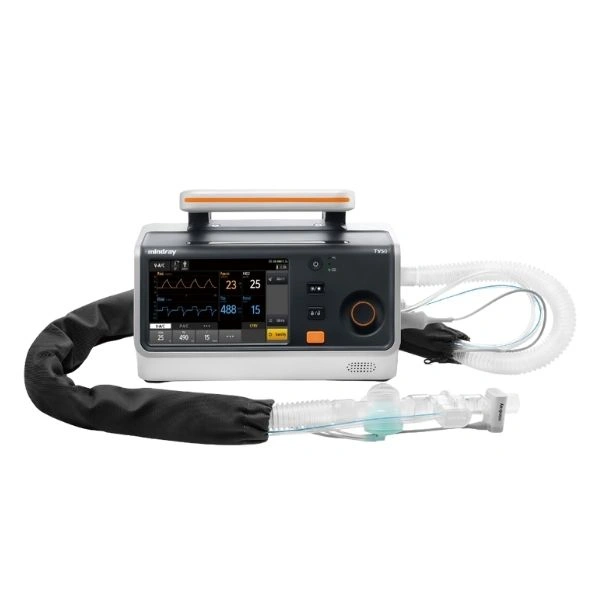

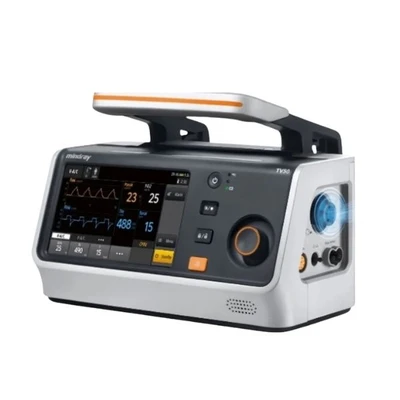

Mindray TV50 Transport Ventilator
NewQuantity :
1
Specifications
- Patient Types : Adult, Pediatric, Infant (varied clinical ranges)
- Display : 7″ capacitive TFT touchscreen (800×480)
- Peak Flow : ≥ 210 L/min
- FiO₂ Range : 21 %–100 %
- Battery Type : Built-in lithium-ion, hot-swappable
- Battery Run Time : ≥ 10 hours (real-time display)
- Weight : ~4.5 kg
- Environmental : -20 °C to +50 °C; altitude compensation ~7600 m; IP34
- Standards Compliance : RTCA/DO-160G, EN 13718-1, EN 1789, ISO 80601-2-84
- Ventilation Modes : Invasive, Non-invasive, O₂ therapy, AMV, CPRV
- Monitoring : CO₂ (mainstream) with adapters
highlights
- ✔️ Turbine-driven independence — no compressed air needed.
- ✔️ Lightweight and compact (~4.5 kg) — easy to carry and mount.
- ✔️ Adaptive and emergency ventilation modes (AMV, CPRV) for clinical flexibility.
- ✔️ Long battery life (≥10 h) with real-time display and swappable battery design.
- ✔️ Rugged build and environmental resilience (wide temp, drop resistance, IP34).
- ✔️ CO₂ monitoring and telemedicine-ready data connectivity.
in the box
- Mindray TV50 ventilator unit
- AC power cable
- Rechargeable battery (built-in; may include one or more packs)
- User manual / quick start guide
- Breathing circuit and connectors (may vary by configuration)
- Oxygen supply hose / adapters
- Mounting accessories (carry handle, optional trolley base or gas cylinder carrier — depending on package)
Use Cases :
- Intra-hospital patient transport
- Pre-hospital transport
- Emergency response situations.
- Patients requiring mechanical ventilation during transfers in challenging environments.
Certifications and Compliances
- Safety classification: Class IIb medical device.
- Applicable standards: Designed to comply with relevant standards including IEC 60601-1-12, ISO 80601-2-12, ISO 80601-2-55, ISO 80601-2-61, and IEC 60601-1-2:2020.
- Transport standards: Supports requirements associated with RTCA/DO-160G for aviation equipment, EN13718-1 for air ambulance equipment, EN1789 for road ambulance equipment, and applicable transport ventilator standards.
- Ruggedness and EMC: Designed with reference to standards such as MIL-STD-461G for electromagnetic compatibility and MIL-STD-810G for environmental durability.
- Design recognition: Winner of the iF Design Award 2023 and Red Dot Award 2023, recognising the product's design and usability.
- Manufacturer: Manufactured by Shenzhen Mindray Bio-Medical Electronics Co., Ltd., part of the Mindray medical technology group.
Why Choose Mindray TV50 Portable Ventilator
- Transporting patients where compressed gas may not be readily available: The built-in turbine allows the TV50 to provide ventilation without depending on a continuous compressed-gas inlet, with peak flow of ≥210 L/min.
- Want to maintain the same ventilation approach during transfer: The TV50 uses a familiar ventilation interface and a broad range of modes, helping clinicians maintain continuity when moving patients from a bedside ventilator to transport.
- Planning longer transfers: Hot-swappable lithium-ion batteries can provide up to 10 hours of operation with two batteries, depending on the operating conditions, while battery status and oxygen consumption can be monitored during transport.
- Using the ventilator for air or ambulance transport: Its 20G shock resistance, 7,600 m altitude capability, and transport-related standards make it suitable for demanding transport environments when configured and used according to the manufacturer's specifications.
- Need to share transport data with the receiving facility: 5G, Wi-Fi, and Bluetooth connectivity can support data transfer to compatible hospital CMS or ePCR systems, helping keep relevant ventilation information available during patient transfer.
Key-Features of Mindray TV50 Transport Ventilator
- Built-in turbine: Provides ventilation without requiring a continuous compressed gas inlet.
- Lightweight design: Weighs approximately 4.5 kg for easier handling during patient transport.
- High peak flow: Delivers peak flow of ≥210 L/min to support a broad range of ventilation requirements.
- Wide FiO2 range: Adjustable from 21% to 100% for controlled oxygen delivery.
- 15 ventilation modes: Includes V-A/C, P-A/C, V-SIMV, P-SIMV, CPAP, PSV, APRV, PRVC, AMV, CPRV, NIV, and other modes depending on configuration.
- Familiar ventilation platform: Uses a user interface and ventilation approach designed to provide continuity with Mindray bedside ventilators.
- AMV mode: Adaptive Minute Ventilation automatically adjusts ventilation support according to the patient's condition.
- CPRV emergency mode: A dedicated one-button mode provides CPR-oriented ventilation settings when required.
- 7-inch HD touchscreen: Capacitive display with auto-brightness and an outdoor viewing mode for easier visibility during transport.
- Non-consuming O2 sensor: Designed for long-term use without routine sensor replacement or maintenance.
- O2 consumption monitoring: Displays real-time oxygen consumption to help staff monitor available gas supply.
- Hot-swappable batteries: Lithium-ion battery system provides up to 10 hours of operation with two batteries, depending on operating conditions.
- CO2 monitoring: Supports mainstream CO2 monitoring with reusable and disposable adapter options.

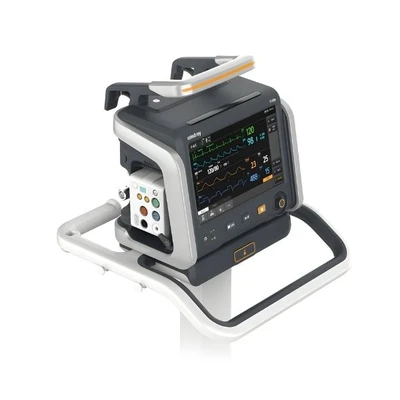

- Flexible mounting: Universal mount handle supports installation on a fixed base, mobile trolley, or gas-cylinder carrier.
- Transport durability: Designed with 20G shock resistance, IP34 protection, and six-sided 75 cm drop protection.
- Connectivity: Supports 5G, Wi-Fi, and Bluetooth connectivity for data transfer to compatible hospital CMS or ePCR systems.
- Transport standards: Designed to meet applicable aviation and ambulance transport standards, including RTCA/DO-160G, EN13718-1, and EN1789.
Warranty
1 Year
Seller
AA Medie QuipLearn More
Product Description
The Mindray TV50 transport ventilator is designed for patient transfers where portability is important but ventilation support cannot be compromised. At just 4.5 kg, it can be carried easily while still offering a wide range of ventilation modes for invasive ventilation, non-invasive ventilation, an...
