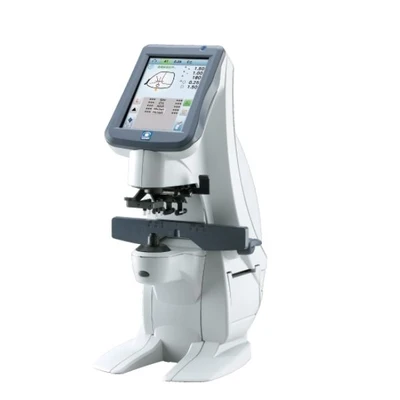

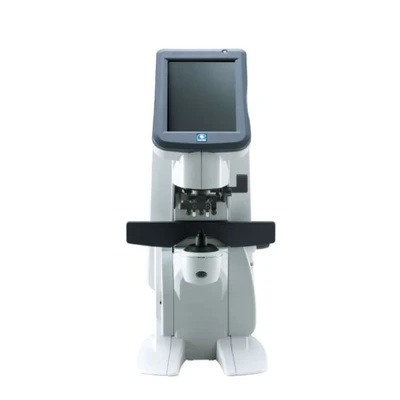

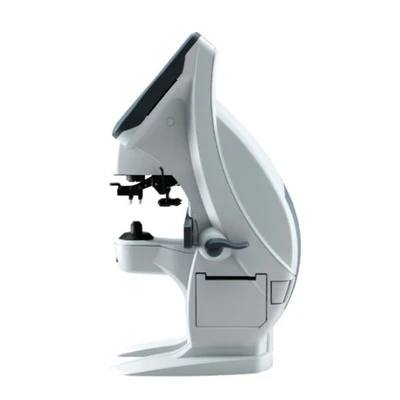

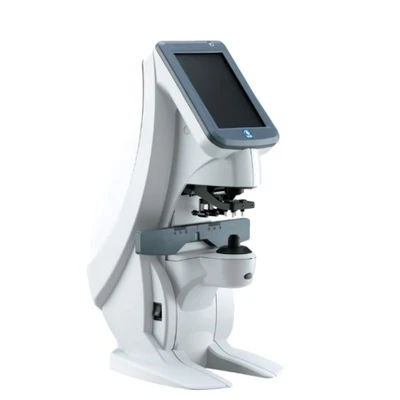

NIDEK LM-7P/7 Auto Lensmeter

New

Specifications

Brand : Nidek
Model : LM-7P/7
Power Supply : AC 100 to 240V, 50 / 60Hz
Printer : Thermal line printer with auto cutter (paper width: 58 mm)
Dimensions : 220 (W) x 240 (D) x 410 (H) mm
PD Measurement : 15 to 42.5 mm (monocular), Single vision PD, Progressive lens far vision PD
UV Transmittance : 0 to 100% (1 or 5% increments) with central wavelength 365 nm (UV-A)
Wavelength : 538 nm (green)
Measuring point : 108 within nose piece
Display : 5.7-inch color full graphic TFT-LCD, 640x480 dots with LED back light
Power consumption : 50 VA
Weight : 4.0 kg

highlights

Advanced Measurement Technology: Features a Hartmann sensor with 108 measurement points for highly accurate readings.
Automatic Lens Type Detection: Intelligently identifies single vision, bifocal, and progressive lenses, automatically adjusting the measurement mode.
UV Transmittance Measurement: Provides crucial data on UV light transmission through lenses.
High-Speed Integrated Printer: Equipped with an auto-cutter for fast and clear printouts of measurement data.
Precise Green Measurement Light: Utilizes a green light source close to ISO standards for enhanced accuracy without Abbe number compensation.
Durable and Reliable Design: Built for longevity and consistent performance in demanding eye care facilities.

Uses Cases :

Comprehensive lensometry in optometry and ophthalmology practices.
Accurate measurement of single vision, bifocal, and progressive lenses.
Verification of UV protection in spectacle lenses.
Efficient data recording and transfer for lens processing and blocking.
Quality control for ophthalmic lens manufacturing and dispensing.

Key Features :

Hartmann sensor with 108 measurement points
Automatic lens type detection (single vision, bifocal, progressive)
UV transmittance measurement
High-speed integrated printer with auto-cutter
Green measurement light (538 nm) for precise readings
Scale mode function
QR code output for data input into PC or NIDEK ICE-1200
Compensation function for high index lenses (Abbe number adjustable 20-60)
Marking system: Ink cartridge type, Ink pad type (optional)
Improved design and user interface for simplified operation

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The LM-7P/7 is engineered for precision and versatility. Its automatic lens type detection simplifies the process, instantly recognizing single vision, bifocal, and progressive lenses to adapt its measurement mode accordingly. The advanced Hartmann sensor, boasting 108 measurement points, ensures ex...
