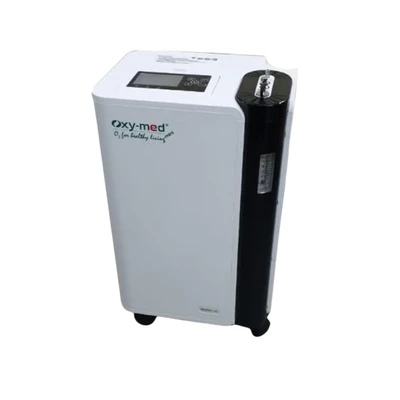

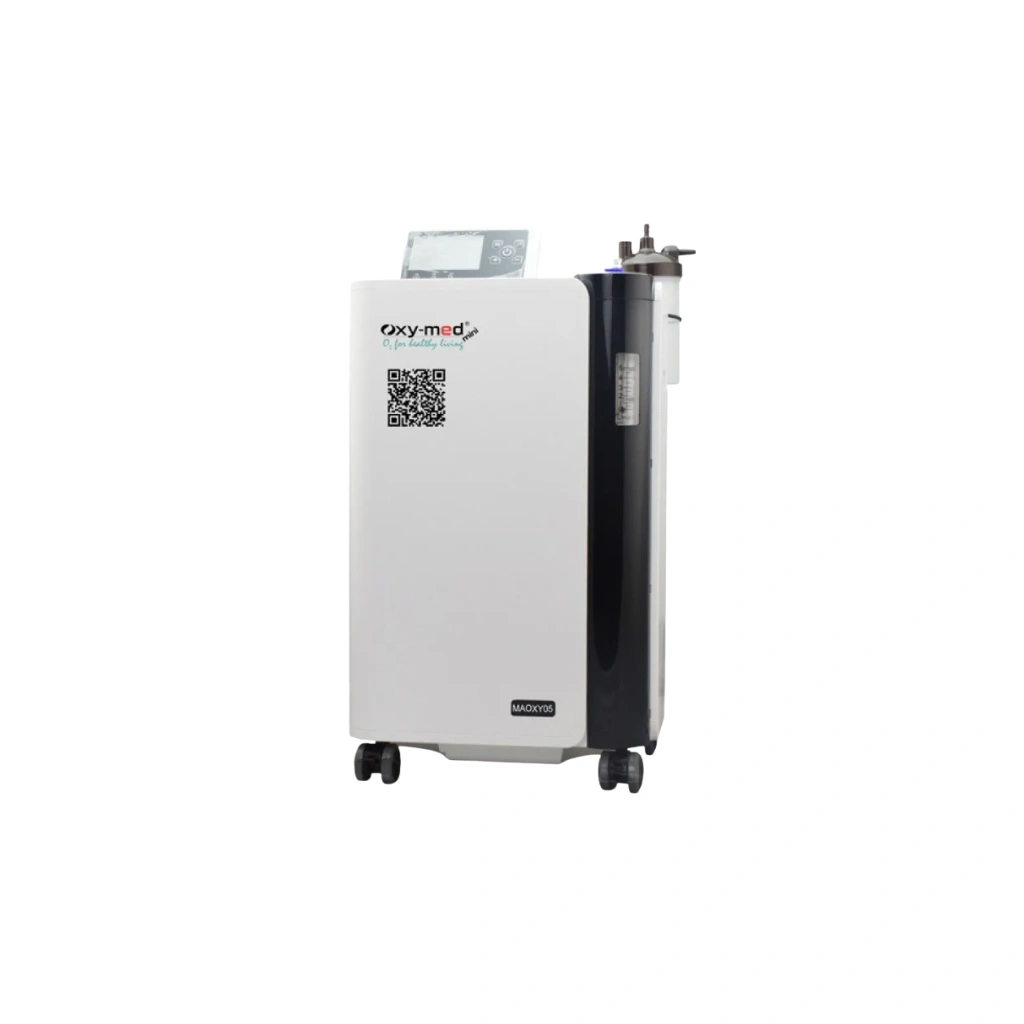

Name: OxyMed MAOXY05 Oxygen Concentrator 5L
Brand: OxyMed
SKU: 54f86bca-af88-4dcc-9a3b-ac11bee7c1f7
Price: 37799 INR
Availability: InStock

Specifications

Flow Rate : 1–5 LPM (adjustable in 0.5 LPM steps)
Oxygen Concentration : 93% ±3%
Power Consumption : 300 VA
Noise Level : ≤45 dB
Outlet Pressure : 0.04–0.07 MPa
Net Weight : 13.9 kg
Gross Weight : 15 kg
Display : Folding 3.5" LCD screen
Compressor : Big displacement, suitable for >4 hours continuous use
Timer : 10 minutes to 5 hours
Filters : HEPA + Bacteria filter + 5-stage filtration (2/15 microns)
Alarms & Safety : Power failure, overheat, low purity, voltage, pressure, maintenance prompt
Additional Features : Inbuilt nebulizer, oxygen purity display, intelligent self-diagnosis system
Certifications : ISO compliant, LVD safety features

highlights

3-Year Warranty (T&C Apply)

Use Cases

Homecare for Chronic Respiratory Patients: Ideal for individuals with COPD, asthma, or other breathing disorders.
Post-COVID Recovery: Supports oxygen therapy for patients recovering from respiratory infections.
Hospitals & Clinics: Reliable for continuous oxygen supply in outpatient and emergency settings.
Elderly Care: Provides safe and quiet oxygen support for senior citizens.
Portable Medical Support: Lightweight and compact for easy transport and storage.

Clinical Benefits

Consistent Oxygen Saturation Support: Stable 93% (±3%) oxygen purity across the 1–5 LPM flow range supports reliable ongoing oxygen therapy.
Combined Respiratory Therapy: The built-in nebulizer allows oxygen therapy and aerosolized medication delivery without switching between different equipment.
Cleaner Air Delivery: Five-stage HEPA and bacteria filtration helps reduce exposure to impurities and particulate matter as small as 2.5 microns.
Early Warning of Equipment Issues: A comprehensive alarm system covering purity, pressure, power, voltage, and overheating helps caregivers identify problems before they affect therapy.
Safer Extended Use: Power-on self-test, low voltage detection, and overheat protection support safer round-the-clock operation.

Key Features of the Oxymed Mini (MAOXY05)

Precise 5 LPM Flow with Digital Control: Adjustable from 1–5 LPM in 0.5 LPM increments using an advanced digital flow regulator for more accurate flow control than mechanical regulators.
Inbuilt Nebulizer with Adjustable Timer: Can run from 10 minutes to 5 hours, allowing oxygen therapy and nebulized medication delivery from the same device.
PSA (Pressure Swing Adsorption) Technology: Provides the core oxygen-separation technology for consistent and reliable oxygen purity.
Five-Stage HEPA & Bacteria Filtration: Italy-sourced filters help remove impurities, bacteria, and particulate matter down to 2.5 microns.
Comprehensive Alarm System: Includes alarms for power failure, overheating, low oxygen purity, voltage fluctuations, and low/high pressure.
Intelligent Self-Diagnosis: Displays malfunction information directly on the folding 3.5" LCD screen for easier troubleshooting.
Oxygen Purity Percentage Display: Provides a real-time oxygen purity reading, giving users and caregivers better visibility into output quality.
Built for 24-Hour Continuous Operation: Features a big-displacement compressor designed for approximately 30% longer service life, along with a service interval indicator.
Lightweight & Compact: Weighing 13.9 kg and fitted with castor wheels, it is easier to store, transport, and move between rooms.
Power-On Self-Test & LVD (Low Voltage Detection): Supports current ISO safety requirements and includes a re-settable circuit breaker for added protection.

Why Choose the Oxymed Mini Oxygen Concentrator?

Two therapies in one device: The inbuilt nebulizer removes the need for a separate machine for medication delivery.
Genuinely quiet: Noise reduction technology keeps operating noise below 45 dB, making it suitable for bedside and nighttime use.
Built to run continuously: Designed and tested for 24-hour operation, with a compressor engineered for extended service life.
Multiple layers of safety: Power failure, overheat, low purity, voltage, and pressure alarms work together to identify operating issues early.
Backed by a 3-year warranty: Provides longer coverage than many oxygen concentrators in this category.
Internationally certified: CE marked, RoHS compliant, TÜV Rheinland certified, and manufactured under EN ISO 13485:2016.
