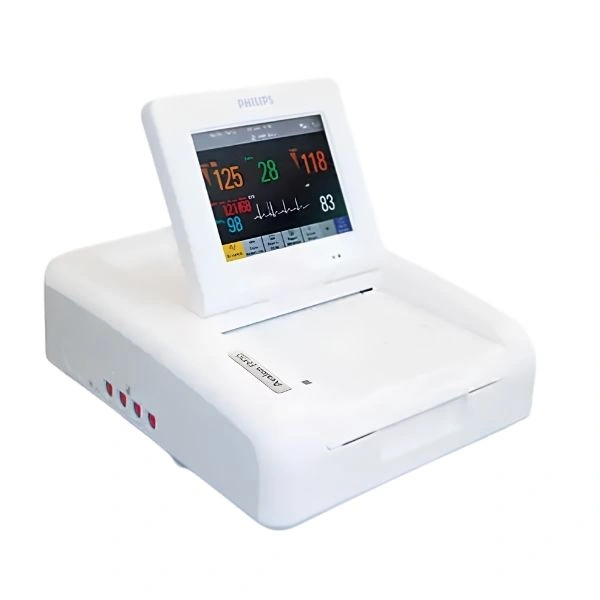

Philips Avalon FM20 Fetal Monitor

New

0.0|0 Ratings

Quantity :

Specifications

Product Type : Fetal & Maternal Monitor
Care Stage : Antepartum
Patient Type : Fetal and Maternal
External Fetal Parameters : US/Toco
Internal Fetal Parameters : N/A
Twin Monitoring : Standard
Triplet Monitoring : Optional
Smart Pulse Technology : Standard
Cross Channel Verification : Standard
Maternal Parameters : MECG, NIBP, Pulse
Fetal Movement Profile : Standard
NST Timer : Standard
NST Trace Interpretation : Optional (up to 3 FHRs)
Data Buffer : Up to 1 Hour
Display Size : 6.5 in (16.51 cm) Color Display
Touchscreen : Optional
System Interface : Serial, LAN (Optional)
PS/2 Interface : Optional
Battery Runtime : Up to 4 Hours (Optional)
Weight (Without Battery) : 5.1 kg
Weight (With Battery) : 5.3 kg

highlights

Automated fetal and maternal heart rate differentiation using Smart Pulse
Clinical decision support through NST Trace Interpretation
Supports monitoring of twins as standard and triplets as an option
Reliable monitoring during patient transport with optional battery
Clear color display for easy waveform visualization
Backup memory and networking capabilities for continuous data availability
Designed specifically for obstetric and fetal monitoring applications

in the box

Philips Avalon FM20 Fetal Monitor Main Unit
Ultrasound (US) Transducer(s)
TOCO Transducer
Event Marker
Power Cord
Patient Belts/Straps
User Documentation

Use Cases :

Antenatal fetal surveillance
Non-Stress Testing (NST)
High-risk pregnancy monitoring
Labor and delivery monitoring
Twin pregnancy monitoring
Maternal and fetal heart rate assessment
Obstetric clinics and maternity wards
Hospital-based antepartum care

Key Features :

Smart Pulse automated coincidence detection
Simultaneous fetal and maternal monitoring
Large, intuitive color display with graphs and numerics
NST (Non-Stress Test) Trace Interpretation support
Twin fetal monitoring as standard
Optional triplet monitoring capability
Maternal ECG, NIBP, and pulse monitoring
Up to 4-hour optional battery operation
Data buffer storage for up to 1 hour
Optional LAN and serial connectivity
Optional touchscreen operation

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Philips Avalon FM20 Fetal Monitor is an antepartum fetal and maternal monitoring system designed to provide reliable monitoring of fetal heart rate, uterine activity, fetal movement, and maternal parameters. It features Philips' Smart Pulse technology for automated coincidence detection, helping...
