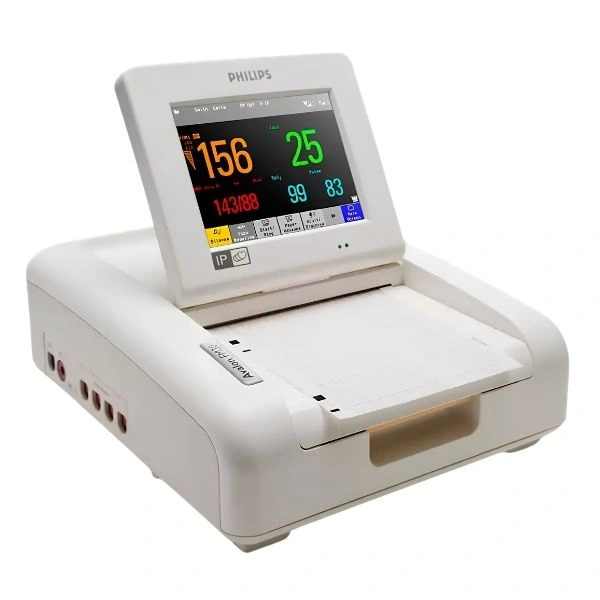

Philips Avalon FM30 Fetal Monitor

New

0.0|0 Ratings

Quantity :

Specifications

Product Name : Philips Avalon FM30
Device Type : Fetal & Maternal Monitor
Care Stage : Intrapartum
Patient Type : Fetal and Maternal
Display Size : 6.5 in (16.51 cm) Color Touchscreen
Touchscreen Operation : Standard
External Fetal Parameters : Ultrasound (US), TOCO
Internal Fetal Parameters : DECG, IUP
Twin Monitoring : Standard
Triplet Monitoring : Optional
Smart Pulse Technology : Standard
Cross Channel Verification : Standard
Fetal Movement Profile : Standard
NST Trace Interpretation : Optional (up to 3 FHRs)
Maternal Monitoring : Pulse Rate, ECG
Optional Maternal Parameters : SpO₂, Blood Pressure
Data Buffer : Up to 1 Hour
System Interface : Serial, LAN (Optional)
PS/2 Interface : Optional
Battery Runtime : Up to 4 Hours (Optional Battery)
Weight (Without Battery) : 5.1 kg
Weight (With Battery) : 5.3 kg
Waveforms : DECG, MECG
Connectivity : IntelliSpace Perinatal Compatible

highlights

Smart Pulse automated coincidence detection
Simultaneous fetal and maternal monitoring
Supports external and internal fetal parameters
NST Trace Interpretation for improved workflow efficiency
Connectivity with IntelliSpace Perinatal information management system
Touchscreen operation with intuitive graphical display
Up to 4-hour battery operation (optional battery)
Standard twin monitoring with optional triplet capability

in the box

Philips Avalon FM30 Monitor Unit
Power Cord
Ultrasound Transducer(s)
TOCO Transducer
Patient Interface Accessories
User Documentation
Mounting Hardware/Stand Components (if ordered)
Optional Battery (depending on configuration)

Use Cases :

Antepartum fetal assessment
Intrapartum labor monitoring
High-risk pregnancy monitoring
Twin and multiple pregnancy monitoring
Continuous fetal surveillance in labor and delivery units
Maternal and fetal vital parameter monitoring in obstetric departments
Hospitals, maternity centers, and women's healthcare facilities

Key Features :

Smart Pulse technology for automated fetal and maternal heart rate differentiation
Cross-channel verification for enhanced diagnostic confidence
External fetal monitoring: Ultrasound (US) and TOCO
Internal fetal monitoring: Direct Fetal ECG (DECG) and Intrauterine Pressure (IUP)
Maternal monitoring including pulse rate and ECG
Optional maternal SpO₂ and NIBP monitoring
NST (Non-Stress Test) Trace Interpretation support
Twin monitoring capability as standard
Optional triplet monitoring capability
IntelliSpace Perinatal connectivity
Large color touchscreen display
Integrated fetal movement profile monitoring

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Philips Avalon FM30 is an advanced fetal and maternal monitor designed for antepartum and intrapartum monitoring. It provides comprehensive fetal surveillance with both external and internal monitoring parameters, helping clinicians assess fetal well-being and maternal status during pregnancy an...
