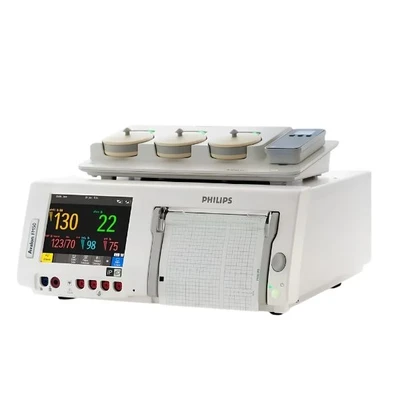

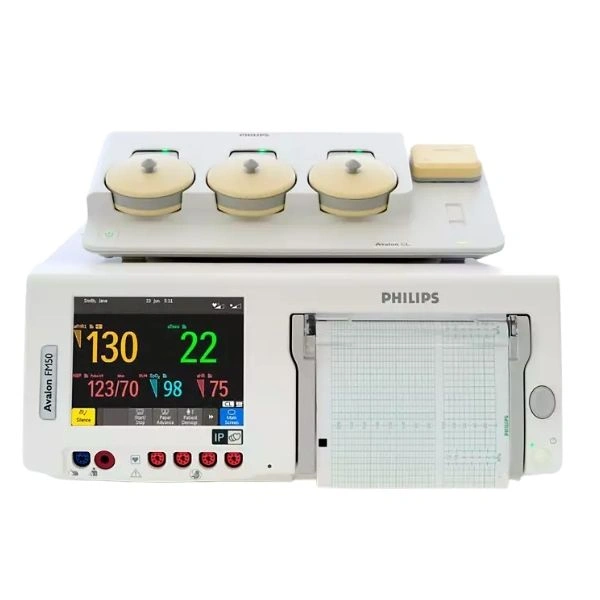

Philips Avalon FM50 Fetal monitor

New

0.0|0 Ratings

Quantity :

Specifications

Product Name : Philips Avalon FM50
Device Type : Fetal and Maternal Monitor
Care Stage : Intrapartum
Patient Type : Fetal and Maternal
External Fetal Parameters : Ultrasound (US), TOCO
Internal Fetal Parameters : DECG, IUP
Twin Monitoring : Standard
Triplet Monitoring : Optional
Maternal Parameters : Pulse Rate, MECG, NIBP, SpO₂
Smart Pulse Technology : Standard
Cross Channel Verification : Standard
Fetal Movement Profile : Standard
NST Timer : Standard
NST Trace Interpretation : Optional (up to 3 FHRs)
Data Buffer : Up to 1 Hour
Display Size : 6.5 in (16.51 cm)
Touchscreen : Standard
Waveforms Displayed : DECG, MECG
Rear Interface for Avalon : CTS Standard
PS/2 Interface : Optional
Video Output : Optional
System Interface : Serial, LAN (Optional)
Weight : < 9.0 kg
Connectivity : IntelliSpace Perinatal Compatible

highlights

Advanced fetal and maternal monitoring in a single platform
Smart Pulse automated coincidence detection technology
Supports direct fetal ECG and intrauterine pressure monitoring
Touchscreen interface for easy operation
Integration with hospital obstetric information systems
Optional monitoring of up to three fetal heart rates
Suitable for complex obstetric cases requiring detailed fetal assessment

in the box

Philips Avalon FM50 Monitor Unit
Power Cord
Ultrasound Transducer(s)
TOCO Transducer
Patient Cables
Mounting Accessories (as ordered)
User Documentation

Use Cases :

Labor and Delivery (Intrapartum Monitoring)
High-risk pregnancy monitoring
Antepartum fetal surveillance
Continuous maternal and fetal assessment during labor
Twin and triplet pregnancy monitoring
Obstetric departments, maternity hospitals, and labor rooms

Key Features :

Comprehensive fetal monitoring with external and internal fetal parameters
Supports ultrasound (US), fetal movement, direct fetal ECG (DECG), TOCO, and intrauterine pressure (IUP)
Smart Pulse technology for automated maternal-fetal heart rate coincidence detection
NST (Non-Stress Test) Trace Interpretation capability
Twin monitoring as standard and triplet monitoring as an option
Large color touchscreen display with waveform visualization
Connectivity with Philips IntelliSpace Perinatal information management system
Cross-channel verification for enhanced diagnostic confidence
Up to one hour of data buffering and storage capability

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Philips Avalon FM50 is a fetal and maternal monitor designed for complex antepartum and intrapartum monitoring. It measures fetal heart rate, supports non-invasive triplet monitoring, provides alarms, and supports direct fetal ECG monitoring. The monitor also measures maternal parameters includi...
