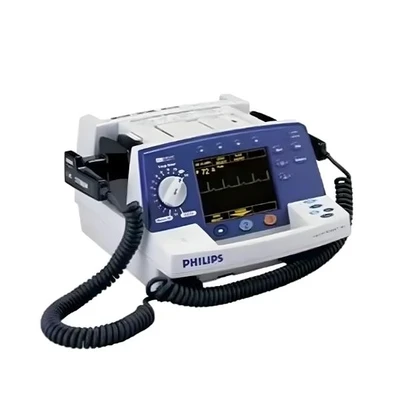

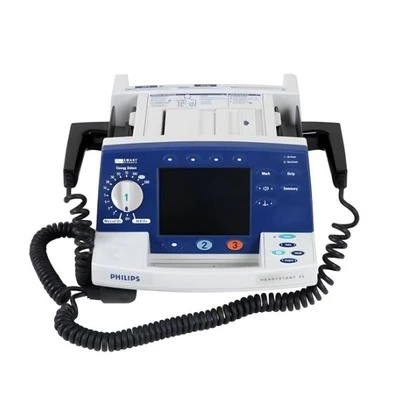

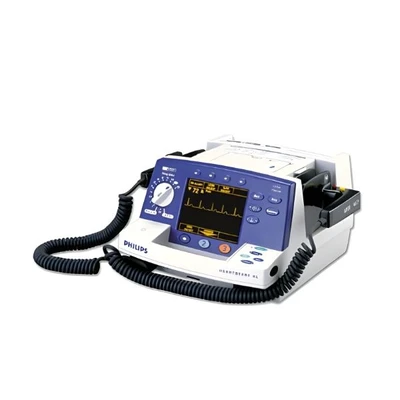

Philips Heartstart Xl Defibrillator

New

4.5

12456 Ratings

Specifications

Model : Philips HeartStart XL
Waveform : SMART Biphasic with impedance compensation
Energy Output : Selectable 2 – 200 J (Manual mode); AED ~150 J
Charge Time : <3 sec to 200 J (battery)
ECG Monitoring : Via pads or separate electrodes (3/5-lead)
Display : LCD or Electroluminescent (320×240)
Printer : Integrated 50 mm strip chart
Alarms : Configurable heart rate and rhythm alarms
Battery : Rechargeable sealed lead acid (SLA)
Battery Life : ~100 min ECG or ~50 full energy shocks
Power Supply : AC mains / Rechargeable battery
Dimensions (H×W×D) : ~19.0 × 37.6 × 34.6 cm
Weight : ~6.0 kg (≈13.2 lbs with battery)
Modes Supported : Manual, AED, Synchronized Cardioversion, (optional) Pacing, SpO₂
Data Storage : Internal memory + optional data card

highlights

Advanced Life-Saving Tech: SMART Biphasic waveform improves defibrillation efficacy while reducing myocardial injury risk.
Flexible Operation: Seamlessly switches between AED and Manual mode.
In-Depth Monitoring: Live ECG, alarms, pacing, and optional SpO₂ expand clinical visibility.
Event Tracking: Built-in data storage for patient event records and quality assurance.
Printer Included: Integrated strip chart printer adds documentation capability on-site.

in the box

1 × Philips HeartStart XL Defibrillator/Monitor Unit
1 × Rechargeable SLA Battery Pack
1 × AC Power Cord/Adapter
1 × Multifunction Defibrillation Pads (Adult/Pediatric) & Cables
1 × ECG Lead Cable (3-lead standard, optional 5-lead)
1 × Strip Chart Printer with Paper Roll
1 × User Manual & Quick Reference Guide

Use Cases :

Emergency Departments (ED) – Rapid response to cardiac arrests and arrhythmias.
Critical Care and ICU Units – Ongoing monitoring and therapy support.
Ambulances and Mobile EMS Units – Defibrillation and monitoring during patient transport.
Operating Theatres – Supports synchronized cardioversion and advanced cardiac care.
Training & Simulation – Useful in clinical training environments due to intuitive AED mode.

Key Features :

Dual Operating Modes: Manual defibrillation for clinicians plus AED mode with voice and text prompts for BLS users.
SMART Biphasic Waveform: Efficient defibrillation with impedance compensation for effective therapy at lower energy.
Quick Charge: Delivers up to 200 J rapid charge (under ~3 sec) for life-saving response.
ECG Monitoring: Continuous ECG display and optional 3-lead or 5-lead inputs for vital monitoring.
Synchronized Cardioversion: For atrial fibrillation and other arrhythmias when needed.
Data Storage & Reporting: Records events, ECG strips, alarms, and allows export for quality control.
Integrated Printer: 50 mm strip chart printer prints ECG and event summaries.
Selectable Limits & Alarms: Configurable alarms support clinical oversight.
Rugged & Portable: Lightweight (~6 kg) and durable for intensive use and transport.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Philips HeartStart XL is a manual and automated defibrillator/monitor designed for advanced life support (ALS) environments such as hospitals, emergency response units, and critical care settings. It combines both Manual mode for trained clinicians and AED mode with clear guidance for Basic Life...
