Shipping time and rates
Shipping about 5-7 days

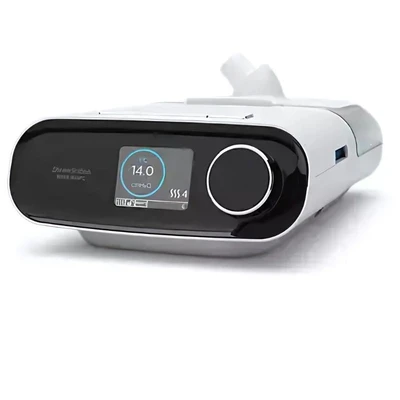

Philips DreamStation AVAPS 30 AAM BiPAP Machine - IAX1130S19
New4.3|59 Ratings
₹94,000₹150,00037% off
Quantity :
1
Specifications
- Model / Part Number : IAX1130S19 (AVAPS 30 AAM)
- Therapy Modes : CPAP, S, S/T, T, Pressure Control (PC), AVAPS
- Pressure Range : EPAP: 4 to 25 cm H₂O, 0.5 cm steps / Max CPAP: 20 cm H₂O
- AVAPS (Target Volume) : 200 to 1500 mL per breath (increment 10 mL) / Maximum IPAP: up to 30 cm H₂O / Minimum IPAP: EPAP + 2 cm H₂O (minimum pressure support = 2 cm H₂O)
- Respiratory Rate (Backup) : 1 to 30 breaths per minute (increment 1)
- Inspiration Time (Ti) : 0.5 to 3.0 seconds (increment 0.1 seconds)
- Rise Time : Levels 1 to 6
- Ramp Time : 5 to 40 minutes (increment 5 min)
- Flex Pressure Relief : Levels 0–3 (only in S-mode)
- Humidification : Heated humidification (fixed or adaptive); supports standard 15 mm or heated 15 mm tube
- Filters : Reusable pollen filter + disposable ultra-fine filter
- Data Storage : SD card: up to 6 months / On-board memory: ~3 months
- Device Controls / UI : LCD screen + control dial / push-button interface
- Dimensions : Without humidifier: 15.7 × 19.3 × 8.4 cm / With humidifier: 29.7 × 19.3 × 8.4 cm
- Weight : ~1.33 kg (without humidifier) / ~1.98 kg (with humidifier) [including power supply]
- Electrical : 100–240 V AC, 50/60 Hz, 2.0–1.0 A
- Data Connectivity : Built-in Bluetooth; optional Wi-Fi / cellular modules (for remote monitoring)
in the box
- DreamStation BiPAP AVAPS 30 AAM
- User manual
- Disposable light-blue ultra-fine filter
- Reusable Pollen Filter
- Carrying case (Bag)
- Power cord and adapter
- SD card
- Flexible tubing, 15 mm
- Humidifier (Optional)
- Heated Tubing (Optional)
- Mask (Optional)
Key Features :
- Automated Airway Management (AAM): The device continuously monitors and adjusts to the patient’s upper airway during all BiPAP modes, maintaining airway patency at the lowest possible pressures.
- Digital Auto-Trak algorithm: This handles automatic breath triggering, cycling, and leak compensation, making therapy more synchronized with the patient’s natural breathing.
- Multiple modes: Supports CPAP, S (spontaneous), S/T (spontaneous/timed), T (timed), PC (pressure control), and AVAPS mode.
- Comfort settings: Offers adjustable ramp time, rise time, and optional Flex pressure relief (0–3 levels, though Flex only applies in S-mode).
- Humidification: Supports heated humidification, both fixed and adaptive, and is compatible with standard or heated tubing.
- Connectivity: Integrated Bluetooth for data sharing, with optional modules for Wi-Fi or cellular (depending on region). Philips highlights its “connected care” capabilities.
- Data tracking: Therapy data is stored on an SD card (up to 6 months) and in onboard memory (about 3 months).
- Patient-centered design: The low-profile, lightweight body fits easily on a bedside table; intuitive front-facing display and control dial/button make it user-friendly.
- Clinical benefit: By using AVAPS, the device helps maintain stable ventilation and has been shown to help normalize CO₂ levels (PtcCO₂) in some patients.
Warranty
Seller
avd undefinedLearn More
Product Description
The DreamStation BiPAP AVAPS 30 AAM (IAX1130S19) is a non-invasive ventilator from Philips Respironics, designed for long-term therapy and complex respiratory needs. “AVAPS” stands for Average Volume Assured Pressure Support, which means the machine automatically adjusts inspiratory pressure (IPAP) ...
Other Details
