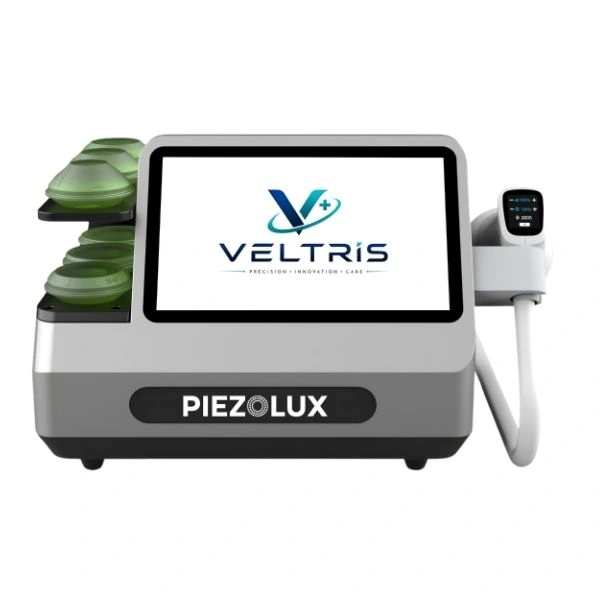

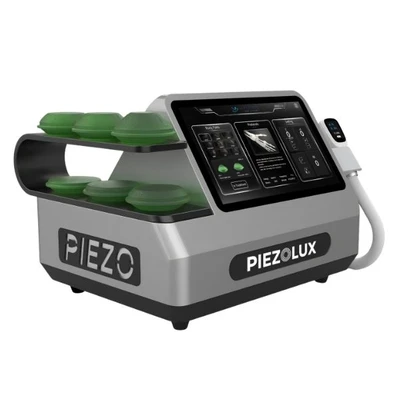

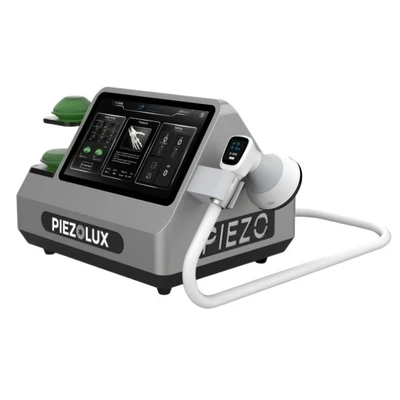

Piezolux Piezoelectric Focused Shockwave Device
New0.0|0 Ratings
Quantity :
1
Specifications
- Technology : Piezoelectric Focused Shockwave
- Shockwave Type : Focused Extracorporeal Shockwave (ESWT)
- Energy Range : 0.005–0.500 mJ/mm²
- Energy Adjustment : 0.005 mJ/mm² increments
- Frequency : 1–12 Hz
- Preset Programs : 19 (customizable)
- Display : Color Touchscreen
- Therapy Source : Piezoelectric Handpiece
- Gel Pads : Multiple sizes for adjustable penetration depth
- Handpiece Service Life : Up to 3,000,000 shocks (model dependent)
- Power Supply : 220–230 V AC, 50/60 Hz
- Maximum Power Consumption : 300 VA
- Control Unit Dimensions : 405 × 207 × 424 mm
- Control Unit Weight : Approximately 23 kg (without handpiece)
highlights
- Advanced focused shockwave generation using piezoelectric technology
- Direct focusing provides precise treatment with minimal discomfort
- High energy concentration at the target tissue
- Adjustable treatment depth using interchangeable gel pads
- Quiet operation compared to other shockwave technologies
- Intuitive touchscreen controls for easy operation
- Multiple therapy source options for different clinical indications
- Durable therapy handpiece designed for extended service life
- Compact clinical design suitable for hospitals, rehabilitation centers, physiotherapy clinics, and sports medicine practices
in the box
- Main control unit
- Piezoelectric therapy handpiece
- Gel pad set (multiple sizes)
- Conductive coupling gel
- Foot switch (depending on configuration)
- Power cable
- User manual / Instructions for Use
- Mobile cart (included with selected configurations)
Use Cases :
- Plantar fasciitis
- Tennis elbow (Lateral Epicondylitis)
- Golfer's elbow
- Achilles tendinopathy
- Patellar tendinopathy (Jumper's knee)
- Calcific shoulder tendinitis
- Rotator cuff disorders
- Trigger point therapy
- Chronic musculoskeletal pain
- Myofascial pain syndrome
- Sports injury rehabilitation
- Soft tissue disorders
- Tendon and ligament injuries
- Orthopedic rehabilitation
Key Features :
- Piezoelectric focused shockwave technology
- High-precision focused energy delivery
- Non-invasive treatment without surgery
- Adjustable energy levels for customized therapy
- Adjustable pulse frequency
- Ergonomic therapy handpiece
- Plug-and-play therapy source recognition
- User-friendly touchscreen interface
- Preset treatment protocols with customizable settings
- Multiple gel pads for different penetration depths
- Long-life piezoelectric generator with millions of shock pulses
- Suitable for orthopedic, sports medicine, rehabilitation, and pain management applications
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Piezolux Piezoelectric Focused Shockwave Device is a non-invasive extracorporeal shockwave therapy (ESWT) system that uses piezoelectric technology to generate highly focused acoustic shockwaves. The device is designed to deliver precise energy to targeted tissues, making it suitable for orthope...
