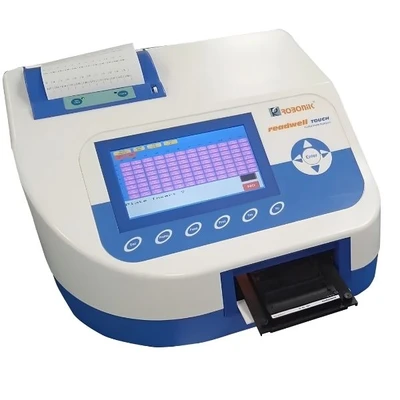

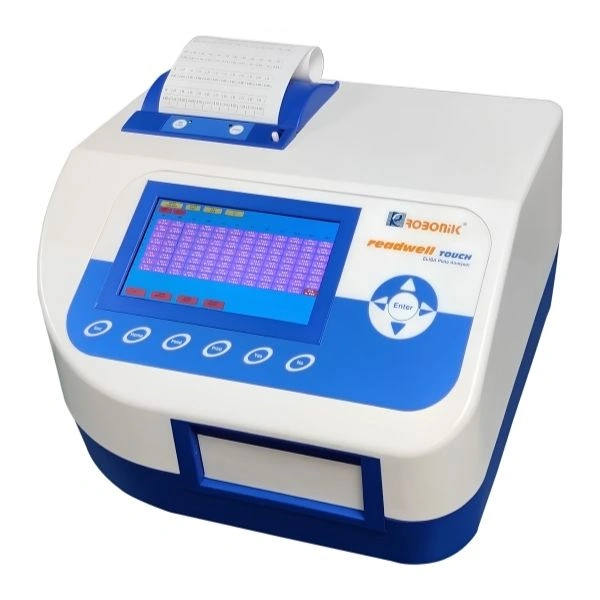

Robonik Readwell Touch Elisa Reader Machine - Microplate, Direct Detection Method
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Type : Automatic ELISA Microplate Analyzer
- Detection Method : Direct Detection / Absorbance
- Human Interface : Touch Panel / Keypad
- Measurement Range : 0.000 – 3.500 Absorbance Units
- Photometric Accuracy : ±2% (0–1.5 A), ±3% (1.5–3.5 A)
- Resolution : 0.001 Abs
- Drift : <0.005 A/hr
- Optical Channels : 8 Channel
- Filter Type : Narrow Band Interference
- Wavelengths : 405, 450, 492, 630 nm (+ optional filters)
- Bandwidth : 10 nm ± 2 nm
- Light Source : Tungsten Halogen Lamp
- Display : 6–7" Graphics Display with Touch
- Printer : Built-in 52-column Thermal Printer
- Memory : 250 Tests, 2500+ / 9600 Results (version dependent)
- Connectivity : USB, RS232
- Analysis Modes : Absorbance, Cut-Off, Multi Standard, Kinetic, Uptake
- Power Consumption : 75–100 VA
- Voltage : 115–230 V ±10%, 50/60 Hz
- Dimensions : Approx. 36 × 36 × 22 cm
- Weight : Approx. 10 kg
highlights
- Compact and lightweight design (~10 kg)
- High precision optical system with 8-channel measurement
- Wide voltage operation (115–230V), no external stabilizer required
- Maintenance-free thermal printer
- Stores up to 250 test programs and thousands of results
- Supports graphical curve plotting
- High-speed automated plate movement via stepper motor
- Reliable for high-throughput ELISA workflows
in the box
- 1 × Robonik Readwell Touch ELISA Reader
- Power cable
- User manual
- Stylus for touch panel
- Built-in thermal printer assembly
- Printer paper roll
- Interface cable (RS232 / USB)
- Dust cover
Use Cases :
- Diagnostic laboratories
- Hospital pathology labs
- Blood banks
- Research laboratories
- Microbiology and immunology testing
- Hormone assay testing
- Veterinary diagnostics
- Food testing laboratories
- Pharmaceutical research & quality control
Key Features :
- Touch panel interface with user-friendly onboard software
- Supports multiple microplate geometries (Flat, U, V bottom wells)
- Fast plate reading within seconds
- Built-in plate shaker with adjustable speed and duration
- Bichromatic and trichromatic optical readings
- Digital light control for extended lamp life
- Multiple assay calculation modes:
- Absorbance
- Cut-Off
- Single Standard
- Multi Standard
- % Absorbance
- Uptake
- Kinetic
- Advanced curve fitting modes:
- Linear
- Point-to-Point
- Log ABS/Conc
- Logit ABS/Log Conc
- Calibration curve storage
- Plate result storage with battery backup
- Built-in thermal printer for instant reporting
- RS232 / USB connectivity for data transfer to PC
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Robonik Readwell Touch is a standalone automatic ELISA microplate analyzer designed for accurate detection and quantification of enzyme immunoassay results using direct absorbance detection. It supports monochromatic, bichromatic, and trichromatic readings and is suitable for routine immunoassay...
